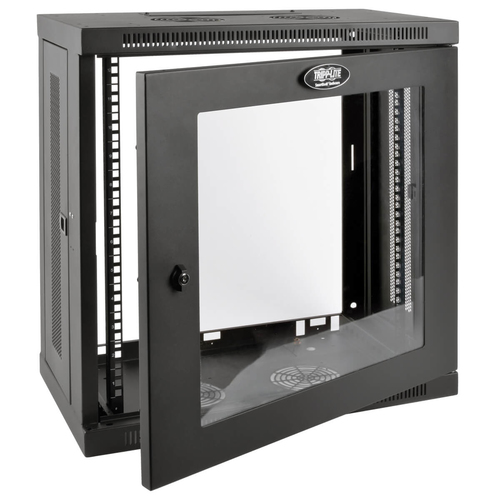

Tripp Lite SRW12U13G SmartRack 12U Very Low-Profile Patch-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window

The SRW12U13G SmartRack® 12U Very Low-Profile Patch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house shallow equipment up to 12.75 inches deep in network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

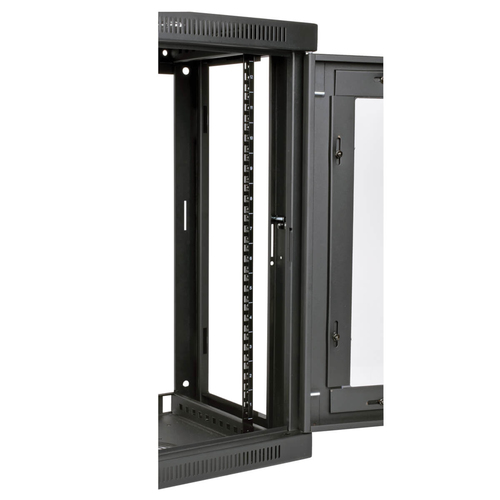

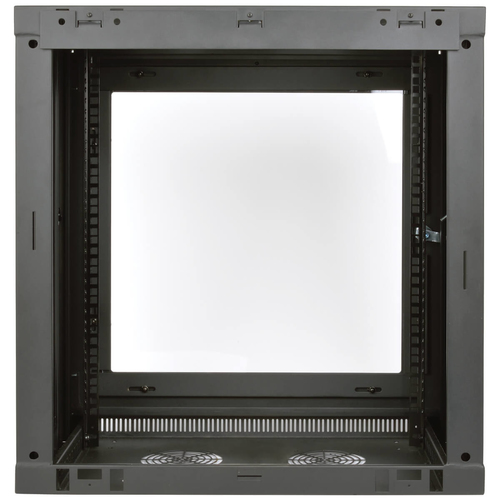

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

To ensure your valuable equipment stays secure, the side panels and front door lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

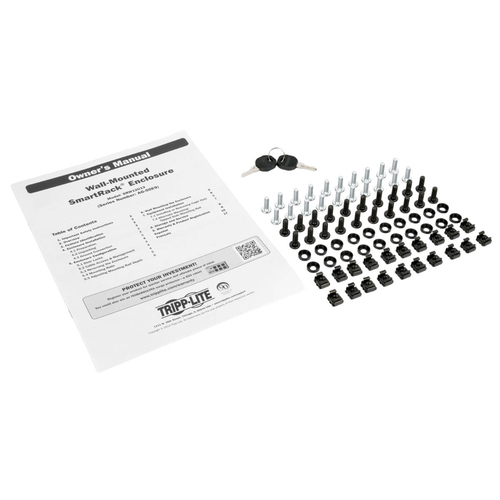

The SRW12U13G comes fully assembled and ready to mount to the wall, or use the optional SRCASTER caster kit (sold separately) to make it a mobile rolling rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails house equipment up to 12.75 inches deep, such as network switches and patch panels.

ON ORDER

SKU: SRW12U13G

Manufacturer: Eaton Eaton

RRP Price €395.04

Specifications

Features

Rack capacity
12U
Type
Wall mounted rack
Maximum weight capacity
90.72 kg
Product colour
Black

Weight & dimensions

Width
599.9 mm
Depth
330.2 mm
Height
637 mm
Weight
17.2 kg
Mounting depth (max)
33 cm

Packaging data

Package width
650.2 mm
Package depth
700 mm
Package height
400 mm
Package weight
17.2 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
650.2 mm
Master (outer) case length
700 mm
Master (outer) case height
400 mm
Master (outer) case gross weight
17.2 kg
Products per master (outer) case
1 pc(s)

Accessories
