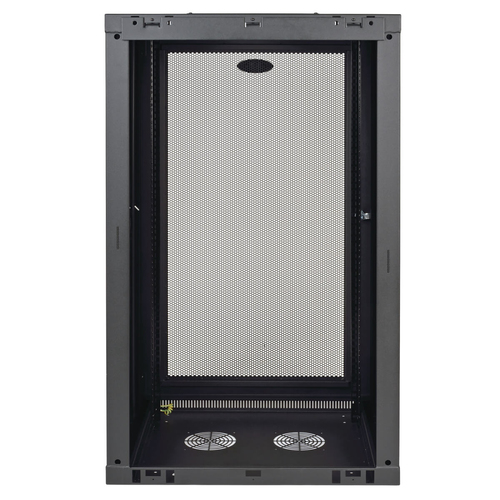

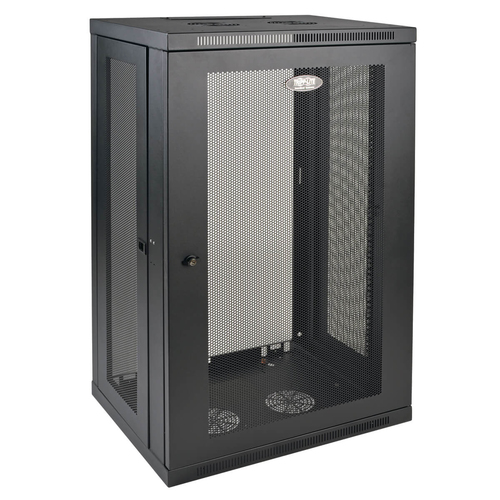

Tripp Lite SRW21U SmartRack 21U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure

The SRW21U SmartRack® 21U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW21U comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

ON ORDER

SKU: SRW21U

Manufacturer: Eaton Eaton

RRP Price €748.41

Specifications

Features

Rack capacity
21U
Type
Wall mounted rack
Maximum weight capacity
90.7 kg
Product colour
Black
Material
Steel
Frame type
Closed
Key lock
Yes
Certification
UL/CSA 60950-1, EIA-310-E RoHS

Weight & dimensions

Size (imperial)
48.3 cm (19")
Width
600.2 mm
Depth
450.1 mm
Height
1038.1 mm
Weight
23.1 kg

Packaging data

Wall mounting kit
Yes
Mounting kit
Yes
Package width
662.9 mm
Package depth
514.9 mm
Package height
1166.9 mm
Package weight
31.4 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
662.9 mm
Master (outer) case length
514.9 mm
Master (outer) case height
1166.9 mm
Master (outer) case gross weight
31.4 kg
Products per master (outer) case
1 pc(s)
