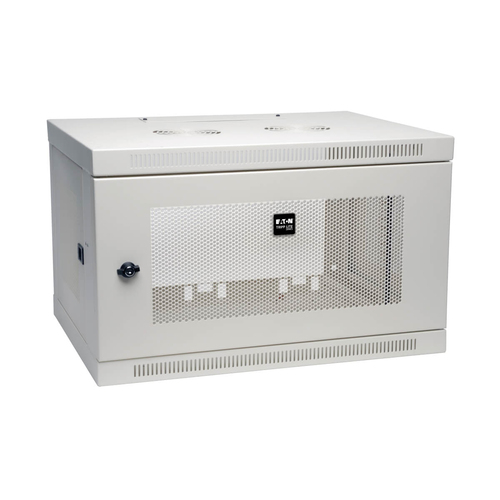

Tripp Lite SRW6UW SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure, White

The SRW6UW SmartRack® 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in home and office network wiring closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable white powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

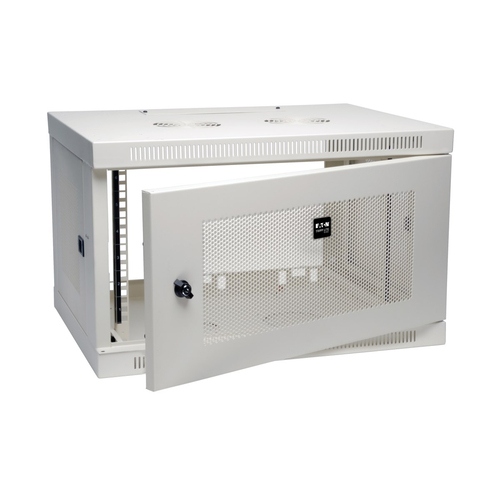

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

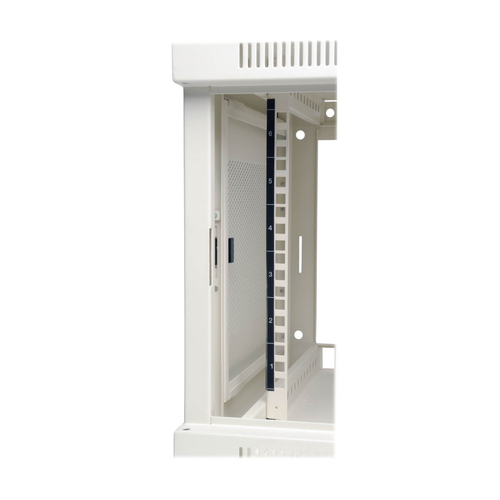

The SRW6UW comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

ON ORDER

SKU: SRW6UW

Manufacturer: Eaton Eaton

RRP Price €250.56

Specifications

Features

Rack capacity
6U
Type
Wall mounted rack
Maximum weight capacity
90.7 kg
Product colour
White
Certification
EIA-310-E, RoHS

Weight & dimensions

Width
596.9 mm
Depth
444.5 mm
Height
368.3 mm
Weight
13.2 kg

Packaging data

Wall mounting kit
Yes
Manual
Yes
Package width
655.3 mm
Package depth
505.5 mm
Package height
439.4 mm
Package weight
15 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
655.3 mm
Master (outer) case length
505.5 mm
Master (outer) case height
439.4 mm
Master (outer) case gross weight
17.7 kg
Products per master (outer) case
1 pc(s)
