Tripp Lite SRW9UDPVRT SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure, Wide

9U Wall-Mount Enclosure Houses EIA-Standard 19 in. Rack Equipment up to 20.5 in. Deep

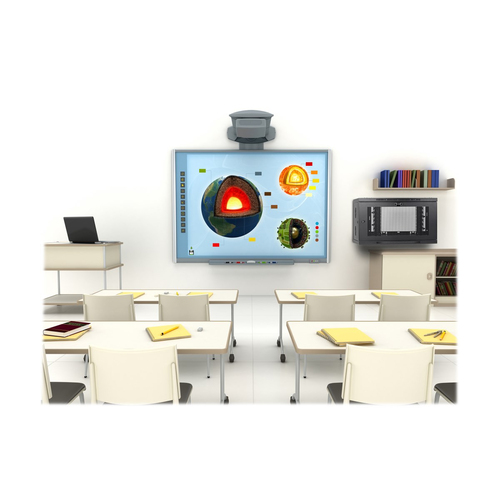

This SmartRack® rack cabinet is designed to house 9U of equipment, such as network switches and patch panels. It's recommended for branch offices, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kg).

Lockable for Simple and Secure Equipment Access

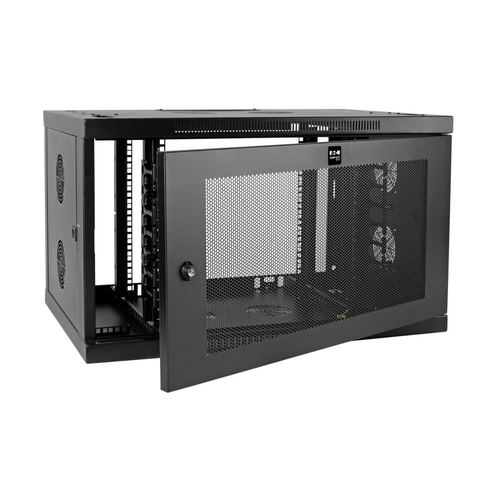

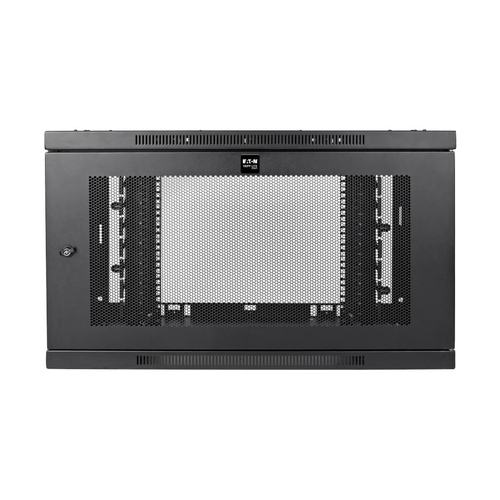

The front door and side panels lock securely to help prevent damage, tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet.

Generous Airflow Keeps Equipment Cool

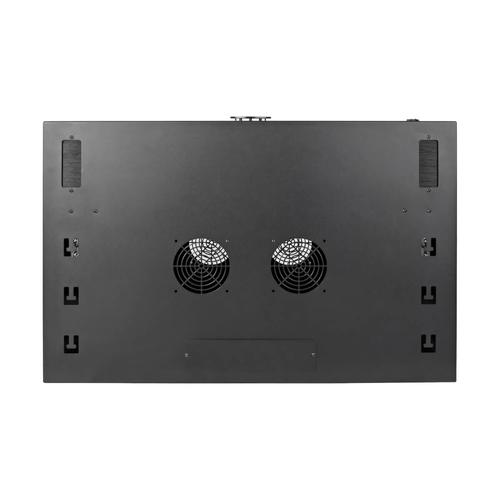

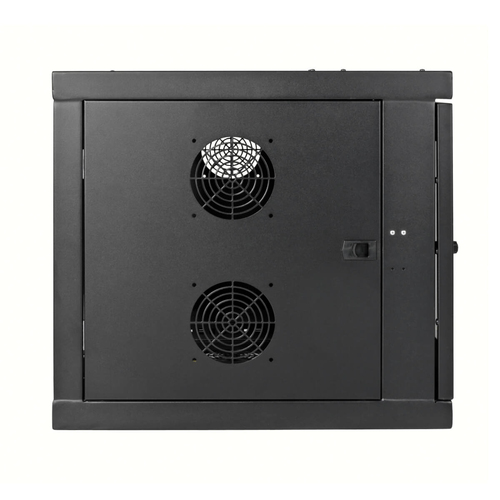

Round ports built into the top, bottom and both sides are designed for optional ventilation fans (such as SRFANWM, sold separately) that keep your equipment cool and functioning at their peak.

Designed with Extra Width for Easier Cable Access and Better Airflow

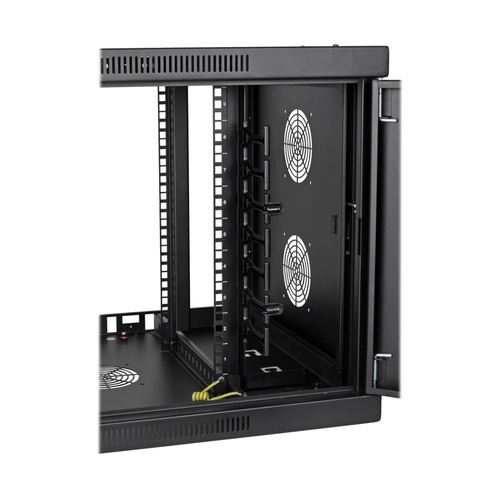

The SRW9UDPVRT is three inches wider than standard-width wall-mount racks. Combined with two vertical cable managers in front and two cable pass-through ports on top, the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles.

Easy Enclosure and Equipment Installation

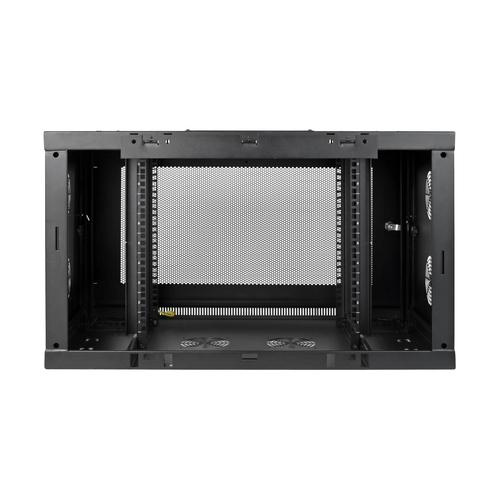

This 9U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation, maintenance and replacement of equipment. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep, including network switches and patch panels.

Meets Payment Card Industry Standards
The SRW9UDPVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

ON ORDER

SKU: SRW9UDPVRT

Manufacturer: Eaton Eaton

RRP Price €549.47

Specifications

Features

Rack capacity
9U
Type
Wall mounted rack
Maximum weight capacity
91 kg
Product colour
Black
Key lock
Yes
Cable management
Yes
International Protection (IP) code
IP20

Weight & dimensions

Width
752.4 mm
Depth
551.5 mm
Height
503.7 mm
Weight
23.5 kg

Packaging data

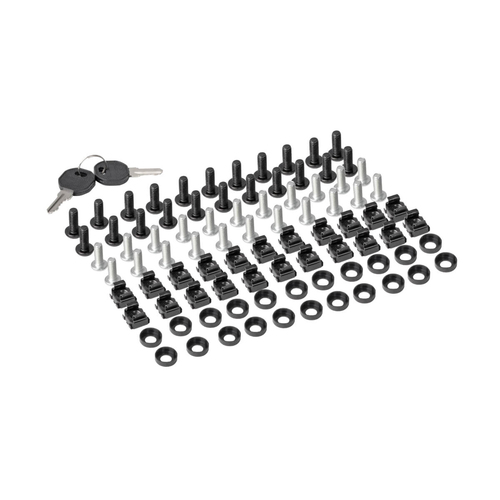

Nuts included
Yes
Number of nuts
22
Screws included
Yes
Number of screws
44
Number of washers included
22
Wall mounting kit
Yes
Manual
Yes
Package width
619.8 mm
Package depth
819.9 mm
Package height
585 mm
Package weight
26.3 kg

Technical details

Compliance certificates
RoHS

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
619.8 mm
Master (outer) case length
819.9 mm
Master (outer) case height
585 mm
Master (outer) case gross weight
26.3 kg
Products per master (outer) case
1 pc(s)
