Tripp Lite SRWALLBRKT6U SmartRack 6U Vertical Wall-Mount Rack Bracket

The SRWALLBRKT6U SmartRack® 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

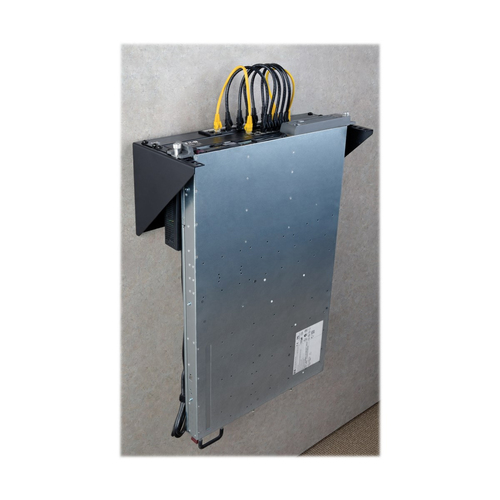

Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 lbs (90.7 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment.

ON ORDER

SKU: SRWALLBRKT6U

Manufacturer: Eaton Eaton

RRP Price €114.40

Specifications

Features

Type
Mounting bracket
Product colour
Black
Maximum weight capacity
91 kg
Rack capacity
6U
Country of origin
China

Weight & dimensions

Size (imperial)
48.3 cm (19")
Width
500.1 mm
Depth
283.2 mm
Height
283.2 mm
Weight
3.8 kg

Packaging data

Quantity per pack
1 pc(s)
Package width
555 mm
Package depth
465.1 mm
Package height
275.1 mm
Package weight
5.5 kg

Packaging content

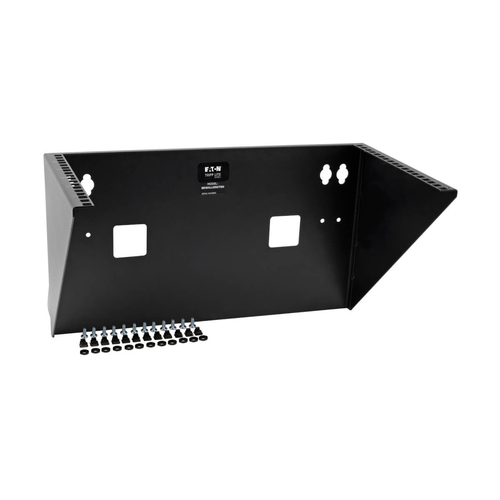

Mounting kit
Yes
Screws included
Yes
Number of screws
12
Nuts included
Yes
Number of nuts
12

Technical details

Master (outer) case GTIN (EAN/UPC)
10037332203219

Logistics data

Master (outer) case width
570 mm
Master (outer) case length
1130 mm
Master (outer) case height
480.1 mm
Master (outer) case gross weight
22 kg
Products per master (outer) case
4 pc(s)
Harmonized System (HS) code
7326.90.8688
