Tripp Lite SRWO4UBRKT SmartRack 4U Low-Profile Vertical-Mount Vented Wall-Mount Mini Rack Enclosure, Black

4U Vented Rack Enclosure Ideal for Housing Network Equipment in Small Spaces
This SmartRack® cabinet is recommended for wiring closets, retail locations, classrooms, back offices and other confined spaceswhere you need server or network equipment to be organized and out of the way. Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, the vertical-mount SRWO4UBRKT has a maximum load capacity of 75 pounds (34 kilograms).

Low-Profile Design Accommodates Switches, Panels and Other Standard Rack Equipment
The 4U cabinet extends less than eight inches (20.3 centimeters) from the wall while housing network components up to 19 inches (48.3 centimeters) deep, including switches and patch panels. It is vented on both sides to allow air to flow freely and keep equipment cool. The top and bottom are open for convenient cable routing and access.

Easy Enclosure Deployment and Equipment Installation

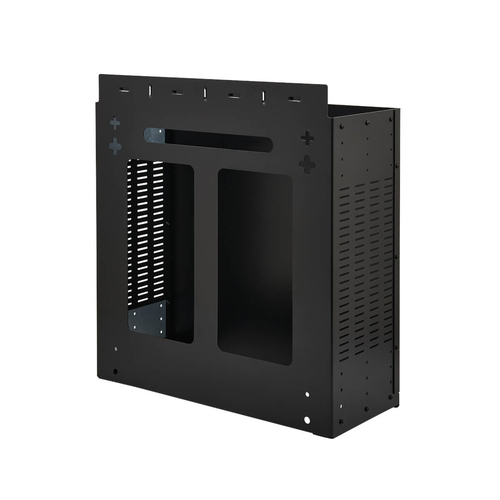

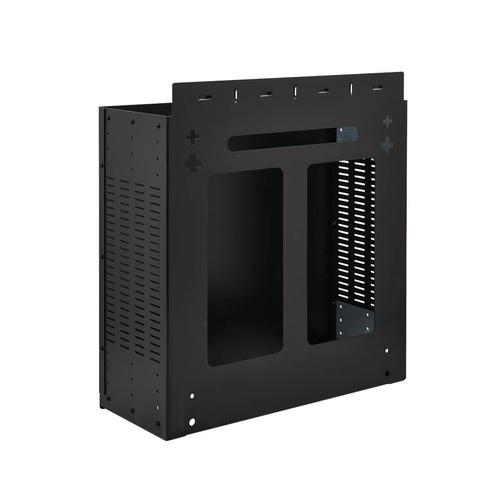

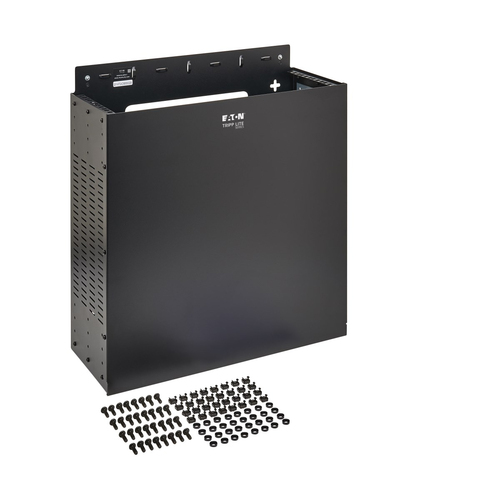

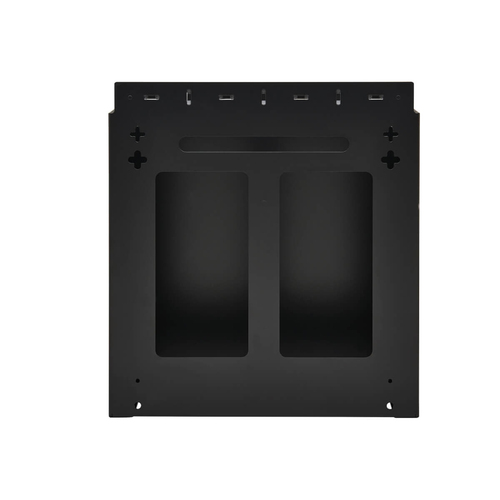

The SRWO4UBRKT comes assembled (except for the front panel) and ready to mount to a wall or beneath a desk. Rear keyhole mounting slots are spaced 16 inches (40.6 centimeters) apart to match standard wall studs. Hardware is included for equipment installation.

ON ORDER

SKU: SRWO4UBRKT

Manufacturer: Eaton Eaton

RRP Price €238.86

Specifications

Features

Type
Rack cabinet
Product colour
Black
Housing material
Steel
Maximum weight capacity
34 kg
Rack capacity
4U
Country of origin
China

Weight & dimensions

Width
511.4 mm
Depth
202 mm
Height
546.1 mm
Weight
7.03 kg

Packaging data

Quantity per pack
1 pc(s)
Package width
581 mm
Package depth
631.8 mm
Package height
282.6 mm
Package weight
7.03 kg

Packaging content

Mounting kit
Yes

Technical details

Sustainability compliance
Yes
Master (outer) case GTIN (EAN/UPC)
10037332262995
Compliance certificates
REACH, RoHS

Logistics data

Master (outer) case width
898.5 mm
Master (outer) case length
650.9 mm
Master (outer) case height
600.1 mm
Master (outer) case gross weight
22 kg
Products per master (outer) case
3 pc(s)
Harmonized System (HS) code
8517.79.0000
