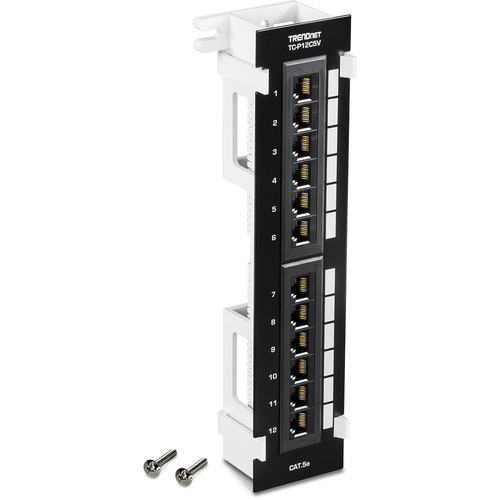

Trendnet TC-P12C5V patch panel

TRENDnet's 12-Port Cat5e Unshielded Wall Mount Patch Panel, model TC-P12C5V, provides a 100MHz connection to 12 x Gigabit RJ-45 Ethernet ports. This 10-inch patch panel is well suited for both home or SMB applications. Organize connections with the available writing surface above each port, allowing users to label respective connections. This compact 12-port patch panel also includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting. Use with TRENDnet's Punch Down Tool, model TC-PDT, and RJ-11/RJ-45 Crimp/Cut/Strip Tool, model TC-CT68.

Cat5e Performance
Provides performance of up to 2.5Gbps speeds at 100m for 10/100/1000/2.5GBASE-T connections.

Wall Mount Design

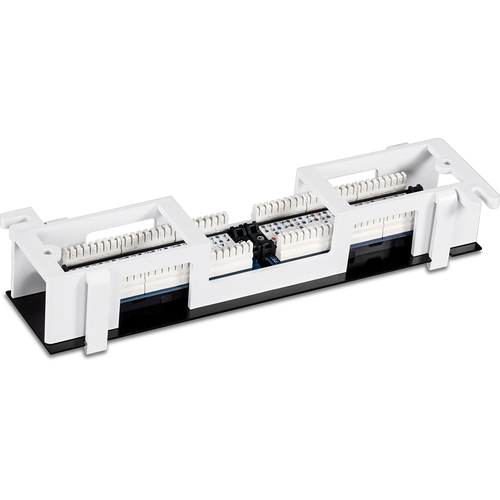

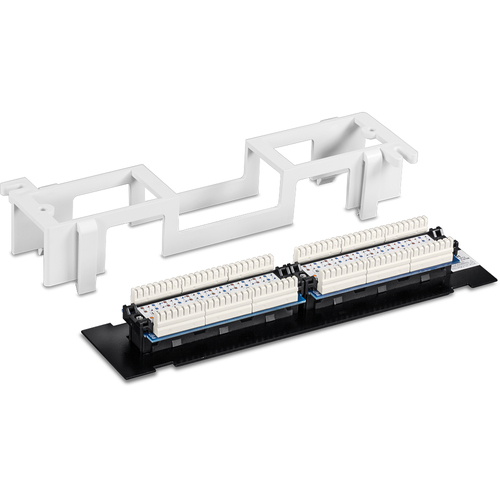

This compact patch panel includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting.

Port Labels

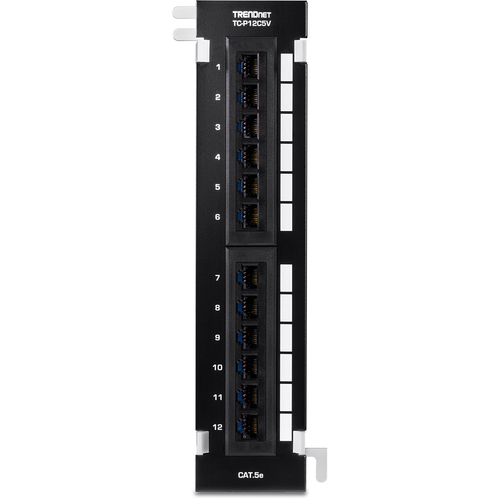

The 12-port patch panel features a blank writing surface above each port, allowing users to label and organize the respective connections.

ON ORDER

SKU: TC-P12C5V

Manufacturer: Trendnet Trendnet

RRP Price €25.31

Specifications

Network

Ports quantity
12
Connector(s)
RJ-45
Cable types supported
Cat5e
AWG wire size
22/26

Design

Product colour
Black

Certificates

Certification
ANSI/TIA/EIA-568-C.2 ISO/IEC 11801

Operational conditions

Operating temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
57 mm
Height
253 mm
Depth
49 mm
Weight
292 g

Accessories
