Trendnet TE-FP051 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

ON ORDER

SKU: TE-FP051

Manufacturer: Trendnet Trendnet

RRP Price €37.29

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
Half duplex
Yes
Ethernet LAN data rates
10,100 Mbit/s

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
0.744 Mpps
MAC address table
1000 entries

Design

Product colour
Black
Housing material
Metal
LED indicators
Yes
Wall mountable
Yes

Performance

Mean time between failures (MTBF)
612220 h

Power

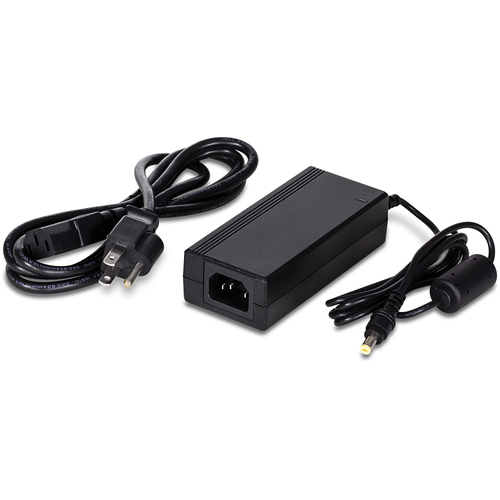

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
48 V
Input current
1.35 A
Power consumption (typical)
4.8 W
Power consumption (max)
4.8 W
Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
105 mm
Depth
83 mm
Height
28 mm
Weight
200 g

Packaging content

Quick start guide
Yes

Certificates

Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
