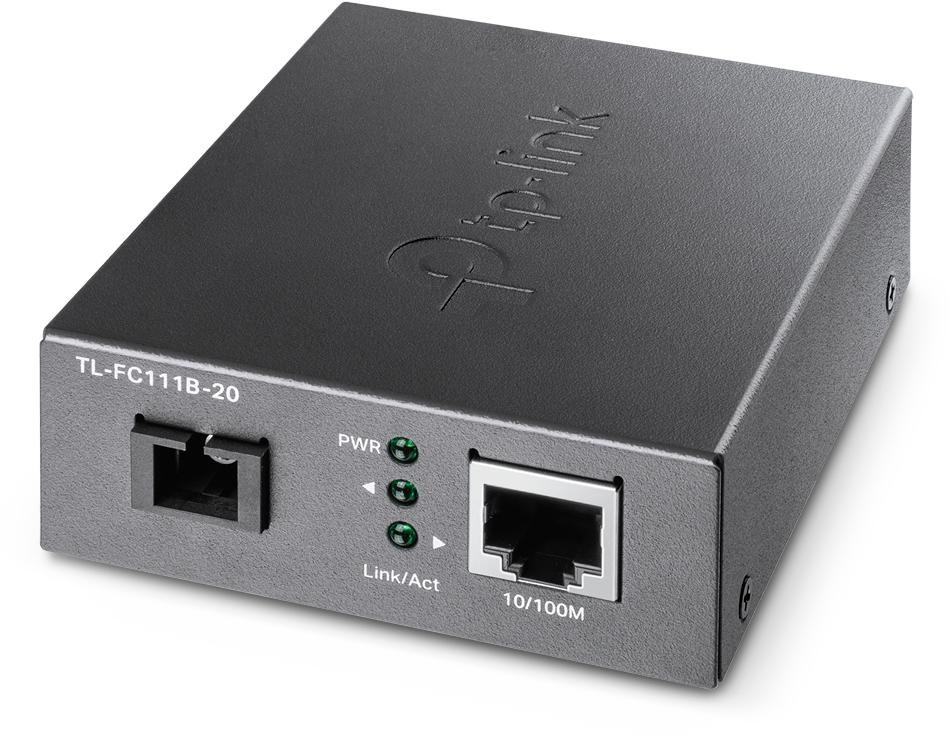

TP-Link 10/100 Mbps WDM Media Converter

Name: TP-Link 10/100 Mbps WDM Media Converter
Brand: TP-Link
SKU: TL-FC111B-20
Availability: OutOfStock

What This Product Does
TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

ON ORDER

SKU: TL-FC111B-20

Manufacturer: TP-Link TP-Link

RRP Price €0.00

Specifications

Network

Maximum data transfer rate

100 Mbit/s

Networking standards

IEEE 802.3, IEEE 802.3i, IEEE 802.3x

Copper ethernet cabling technology

10BASE-T, 100BASE-T

Fiber ethernet cabling technology

100BASE-FX

Data transfer rate

100 Mbit/s

Flow control support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Duplex system

Full, Half

Cable types supported

Cat3, Cat4, Cat5, Cat5e

Performance

Maximum transfer distance

20000 m

Fiber mode structure

Single-mode

Fiber cable diameters supported (core/cladding)

9/125 µm

Features

Internal

LED indicators

Activity, Link, Power

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

Fiber ports quantity

Fiber optic connector

Power

Output voltage

5 V

Output current

0.6 A

External power adapter

Yes

Weight & dimensions

Width

94.5 mm

Depth

73 mm

Height

27 mm

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Packaging data

Package width

165 mm

Package depth

204 mm

Package height

65 mm

Package weight

360 g

Certificates

Compliance certificates

RoHS

Certification

FCC, CE

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

TP-Link

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.36 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
