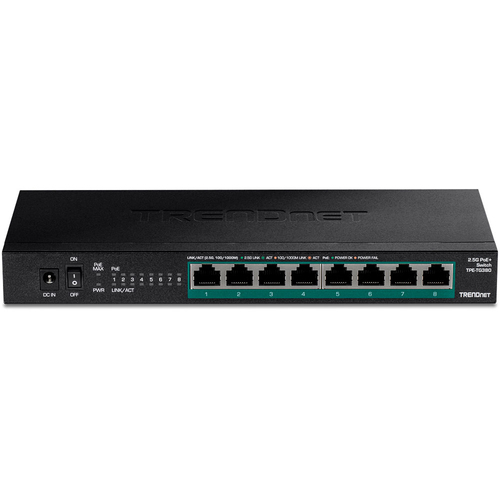

Trendnet TPE-TG380 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 2.5G PoE+ Switches. These 2.5G PoE+ switches are equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G PoE+ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G PoE+ switches are cost-effective solutions to increase your network’s throughput. A 100W total PoE power budget on this multi-gig PoE+ switch supplies up to eight PoE+ devices with up to 30W per port.

2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable
The 2.5G PoE+ switches feature a metal housing with a convenient wall mountable design for greater installation flexibility.

PoE+
A 100W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.

Easy Installation
No configuration needed, simply connect network devices to the 2.5G multi-gig PoE+ switch

Fanless
Fanless design lowers energy consumption and eliminates operating noise

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance

LED Indicators
LED indicators on the 2.5G PoE+ switch convey port status














ON ORDER

SKU: TPE-TG380

Manufacturer: Trendnet Trendnet

RRP Price €182.80

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support
No
Cable types supported
Cat5e
Full duplex
Yes
Half duplex
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s

Data transmission

Switching capacity
40 Gbit/s
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
1.5 MB

Design

Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, PoE, Power
Wall mountable
Yes

Performance

Fanless
Yes
MTBF (PoE)
1121502 h

Power

Power source
AC/DC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
12 W
Power cable length
1.5 m
Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
100 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
240 mm
Depth
103 mm
Height
26 mm
Weight
900 g

Packaging content

Cables included
DC
Quick start guide
Yes

Certificates

Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
