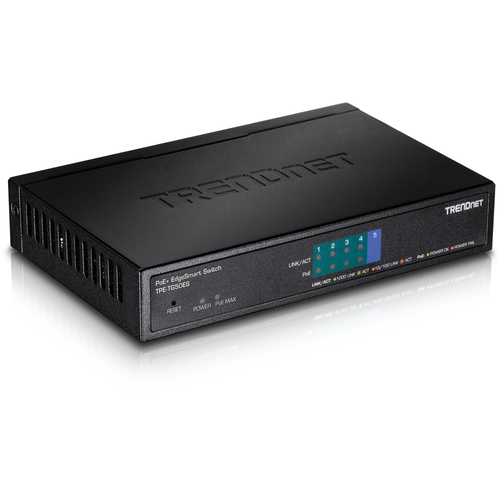

Trendnet TPE-TG50ES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet's 5-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG50ES, is a cost-effective desktop managed switch solution for high-speed gigabit PoE+ applications. This 5-port smart PoE+ switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet's TPE-TG50ES provides four gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.

ON ORDER

SKU: TPE-TG50ES

Manufacturer: Trendnet Trendnet

RRP Price €77.49

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes

Ports & interfaces

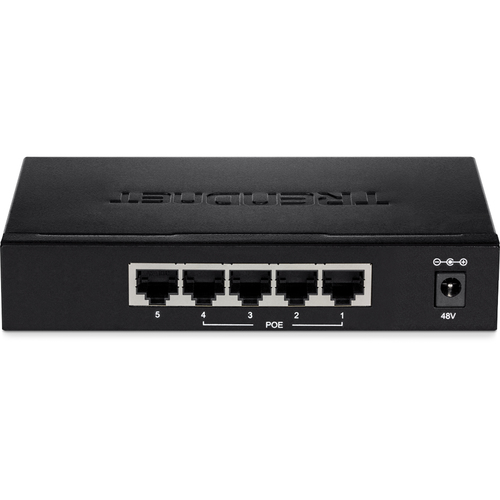

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Port mirroring
Yes
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
32

Data transmission

Switching capacity
10000 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.125 MB

Security

IGMP snooping
Yes
Security algorithms
SNMP
Queue scheduling algorithms
SP, WFQ

Design

Product colour
Black
Reset button
Yes
LED indicators
Yes
Wall mountable
Yes

Performance

Firmware upgradeable
Yes
Mean time between failures (MTBF)
2942586 h

Power

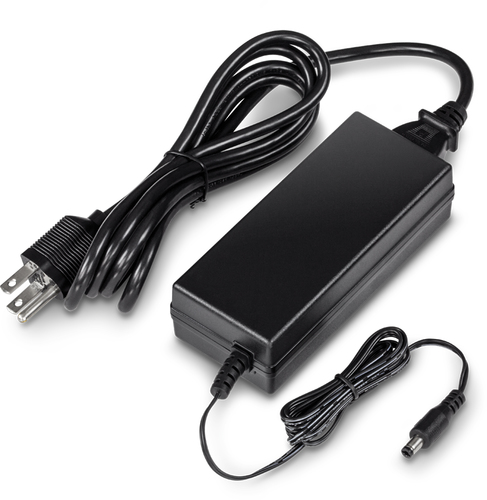

Power supply included
Yes
AC input voltage
110 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
48 V
Input current
0.75 A
Power consumption (max)
34 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
31 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
150 mm
Depth
98 mm
Height
28 mm
Weight
380 g

Packaging content

Cables included
AC
Quick start guide
Yes

Certificates

Certification
CE, FCC

Accessories

License
