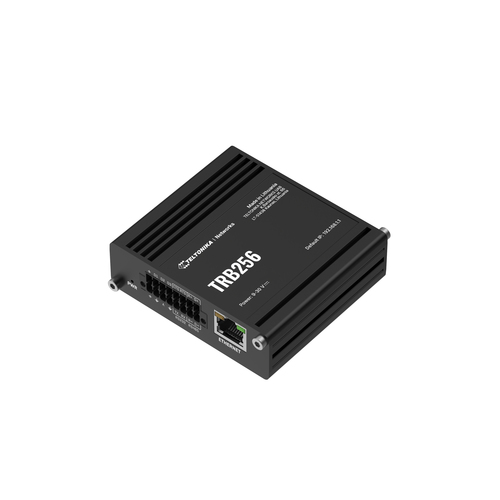

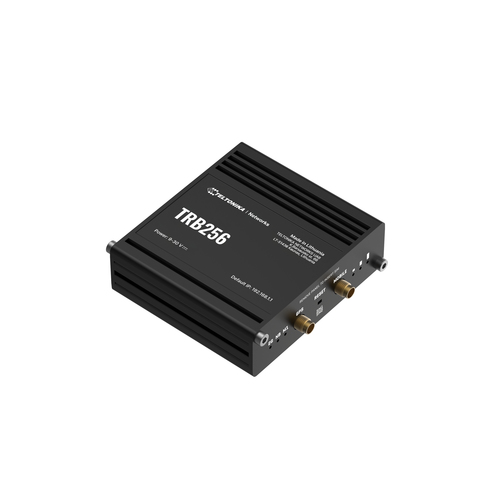

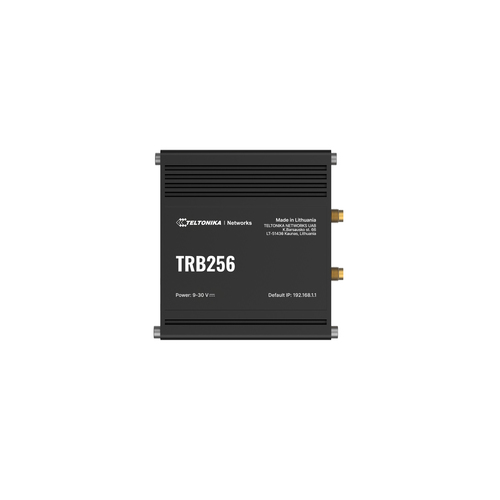

Teltonika TRB256 gateway/controller 10, 100 Mbit/s

The TRB256 is an industrial 4G LTE NB-IoT gateway designed to be applied to a broad range of IoT solutions. The device is equipped with multiple WAN interfaces, such as I/Os, RS232, RS485, and an Ethernet port, additionally boasting dual SIM functionality for continuous connectivity. This industrial-grade gateway also supports the 450 MHz frequency band, offering superior LTE signal penetration compared to standard frequencies, making it an optimal choice for a diverse range of M2M applications.

ON ORDER

SKU: TRB256

Manufacturer: Teltonika Teltonika

RRP Price €124.41

Specifications

Design

Product colour
Black
Enclosure material
Aluminium
International Protection (IP) code
IP30

Features

Antenna type
External
Antenna connector type
R-SMA

Performance

Control display unit
No

Protocols

Management protocols
WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
DMZ support
Yes

Network

Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Dynamic DNS (DDNS)
Yes

Security

Firewall security
Yes
Authentication method
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
DoS attack prevention
Yes
Network address translation (NAT)
Yes

Ports & interfaces

RS-232 ports
1

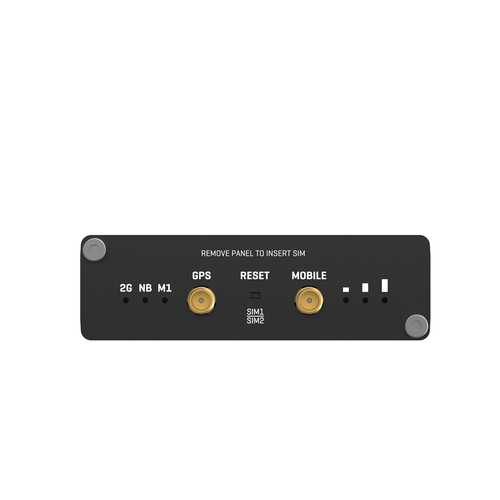

SIM card slot
Yes
SIM card type
MiniSIM
Number of simultaneous SIM cards
2
Ethernet LAN (RJ-45) ports
1
WAN connection
Ethernet (RJ-45)

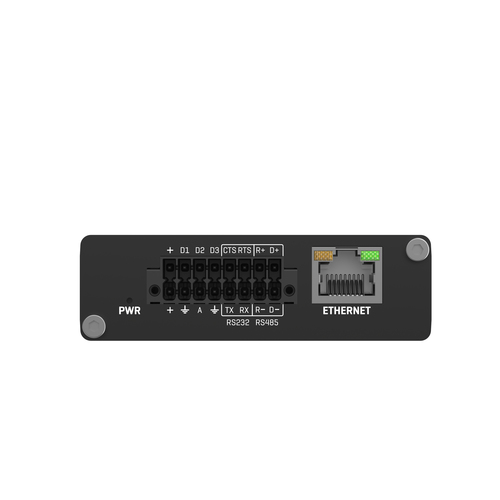

Serial interface type
RS-232, RS-485

Management features

Web-based management
Yes
Quality of Service (QoS) support
Yes
Universal Plug and Play (UPnP)
Yes
Reset button
Yes

Power

DC input voltage
9 - 30 V

Weight & dimensions

Width
83 mm
Depth
74.2 mm
Height
25 mm
Weight
165 g

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 90%

Certificates

Safety
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018

Accessories

License
