Crestron TSW-1060-TTK-B-S mounting kit Black Plastic

Name: Crestron TSW-1060-TTK-B-S mounting kit Black Plastic
Brand: Crestron
SKU: TSW-1060-TTK-B-S
Price: 215.76 EUR
Availability: OutOfStock

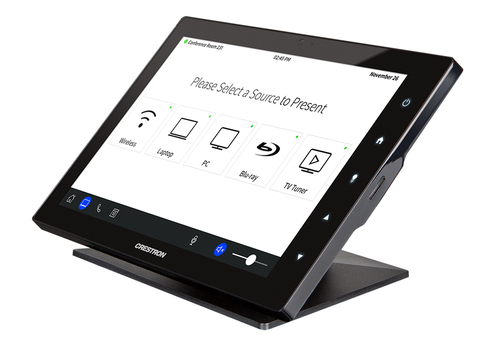

The TSW-1060-TTK provides a stylish and convenient tabletop enclosure for a TSW-1060 Touch Screen. The touch screen is angled when installed in the enclosure. The complete assembly may be placed on any flat, level surface.

An optional swivel mount accessory (TSW-560/760/1060-SMK) is available separately and provides a means for permanently mounting the enclosure while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of 330-degree rotation allowed. The swivel mount may be installed on any flat table, desk, or counter top surface with a thickness of 1 inch (25 mm) minimum to 1 3/8 inch (35 mm) maximum.

Wiring may be passed out the rear of the enclosure through a grommet and strain relief, or routed through the bottom for a very clean, cordless appearance. The rear wire opening can accommodate a single cable up to 1/4 inch (6 mm) diameter such as standard CAT5. The bottom opening measures 29/32 inch (23 mm) diameter, while the swivel mount ^[1] can accommodate wiring up to 11/16 inch (17 mm) diameter.

1 TSW-560/760/1060-SMK Swivel Mount Kit sold separately.

ON ORDER

SKU: TSW-1060-TTK-B-S

Manufacturer: Crestron
