StarTech.com Articulating TV Wall Mount, VESA Wall Mount, Supports 26 to 65 inch/99lb/Flat/Curved TVs, Retractable Low Profile Wall Mount TV Bracket, Adjustable Corner TV Wall Mount

Mount a flat or curved 400x400 VESA display to a wall in both residential and commercial environments

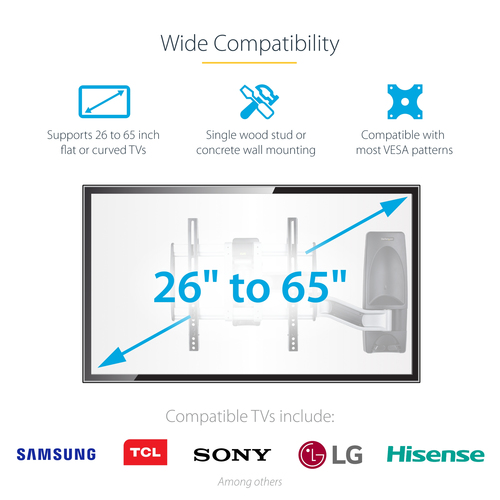

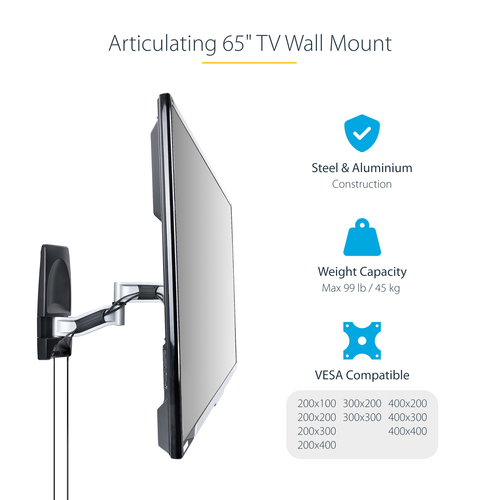

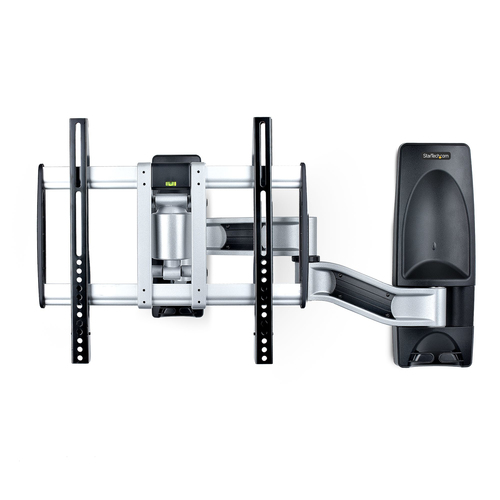

This VESA TV Wall Mount supports TV displays from 26" to 65" and up to 99.2 lb (45kg). Robust steel and aluminum frame for a long-lasting TV installation. The arm assembly provides smooth motion and retracts towards the wall for low-profile configurations. In addition, the articulating TV wall mount features an array of adjustments for an ideal viewing angle and supports VESA patterns from 200x200 to 400 x400.

Versatile TV Mounting

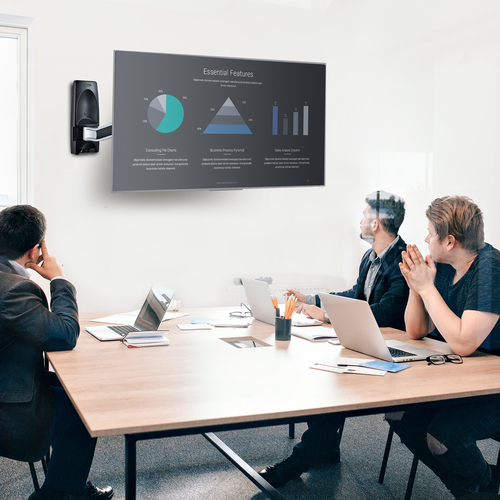

Securely mount a flat or compatible curved-screen TV or digital signage for visitors, clients, and employees to view. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities.

The lateral range of 3.1ft (95.6cm) is ideal for corner mounting, and the jointed arm folds on itself, creating a slim profile from the wall of just 4.1in (10.5cm) for limited-space installations.

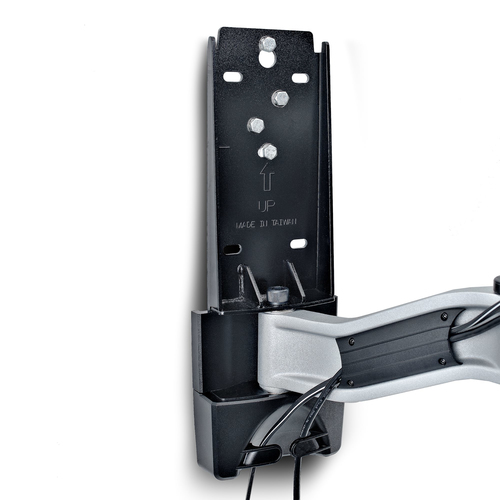

Mount the articulating TV wall mount to a single wood stud or a concrete wall using the included keyhole-style mounting plate for quick and hassle-free installation. In addition, M4/5/6/8 screws of various lengths, matching washers, and spacers enhance the TV mounting compatibility.

Supported VESA mounting patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, and 400x400.

Smooth Motion and Tidy Installation

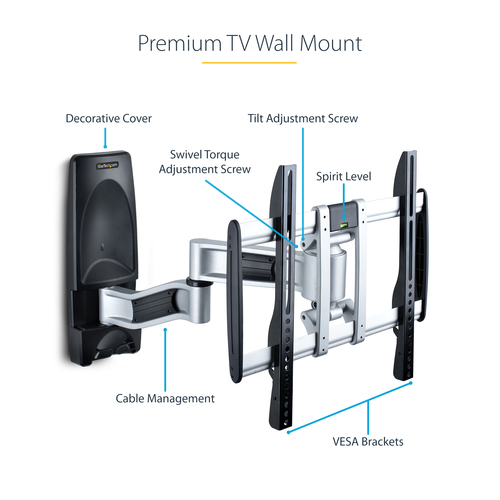

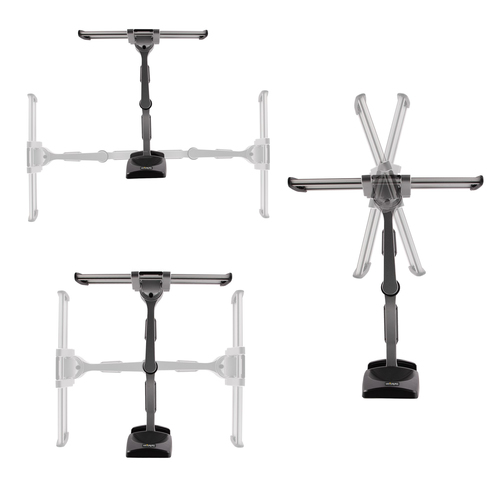

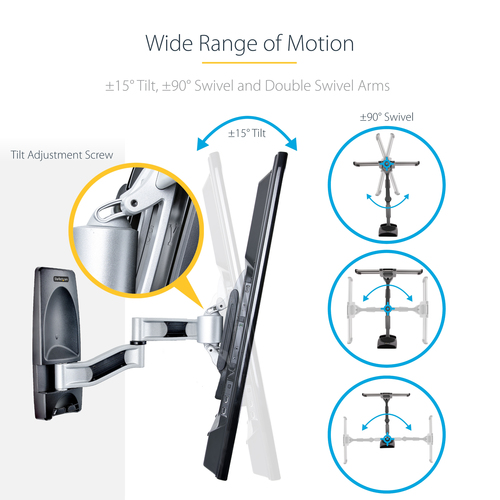

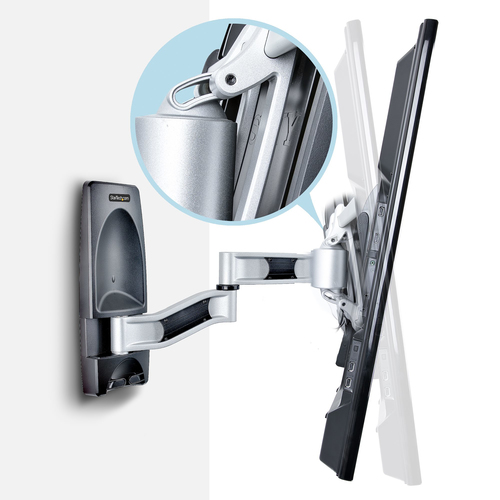

Customize the viewing experience and comfort with these adjustment capabilities. The TV mount can rotate +90/-90 degrees at the wall mount assembly plate, as well as at both pivot points, while the VESA vertical bracket can be tilted +15/-15 degrees.

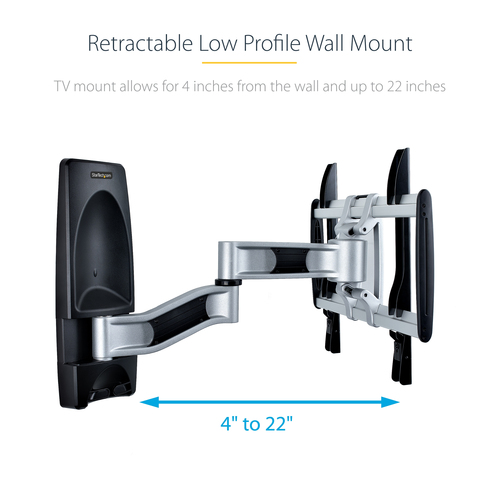

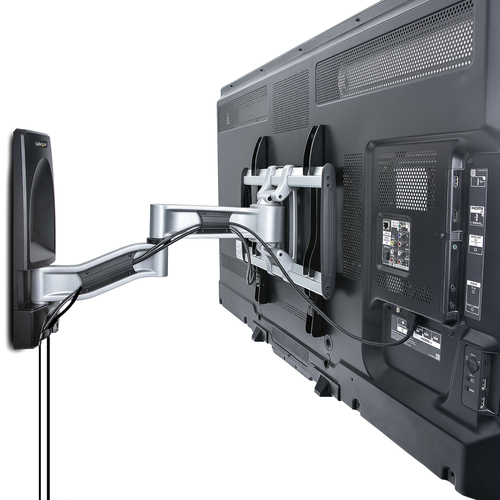

The arm assembly extends up to 22.1in (56.2cm) from the wall to accommodate different viewing positions, including corner mounting. Built-in cable management and a wall mount cover for an organized and visually appealing installation.

This TAA corner TV mount is backed for five years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

ON ORDER

SKU: TV-WALL-MOUNT-65FS

Manufacturer: StarTech.com StarTech.com

RRP Price €504.46

Specifications

Mounting

Maximum weight capacity
45 kg
Minimum screen size
66 cm (26")
Maximum screen size
165.1 cm (65")
Minimum VESA mount
200 x 100 mm
Maximum VESA mount
400 x 400 mm
Panel mounting interface
200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Mounting type
Wall

Ergonomics

Height adjustment
No
Tilt adjustment
Yes
Tilt angle range
-15 - 15°
Swivelling
Yes
Swivel angle
180°
Rotating
Yes
Angle of rotation
90°
Distance to the wall (max)
56.2 cm
Distance to the wall (min)
10.5 cm

Design

Product colour
Black, Silver

Packaging content

Anchors included
Yes
Number of anchors included
8
Wrench included
Yes
Wrench type
Hexagonal wrench
Number of washers included
4
Screws included
Yes
Number of screws
38
Manual
Yes

Weight & dimensions

Width
500 mm
Depth (max)
45 cm
Height
105 mm
Weight
7.8 kg

Packaging data

Package width
624 mm
Package depth
460 mm
Package height
124 mm
Package weight
9.2 kg

Logistics data

Master (outer) case width
624 mm
Master (outer) case length
460 mm
Master (outer) case height
124 mm
Products per master (outer) case
1 pc(s)
