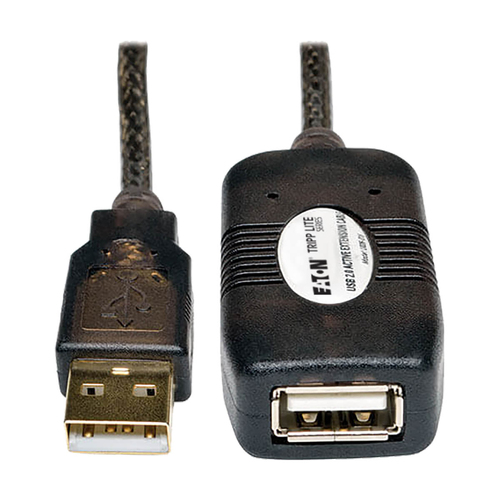

Tripp Lite U026-016 USB 2.0 Active Extension Repeater Cable (A M/F), 16 ft. (4.88 m)

This USB 2.0 Extension Cable is a bus-powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16 feet (4.9 meters). Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 80 feet (24.4 meters) by daisy-chaining up to five of these active cables. The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply or need to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016. Use a standard six-foot (1.8 meters), 10-foot (3.1 meters) or 15-foot (4.6 meters) USB cable to reach the desired distance.

ON ORDER

SKU: U026-016

Manufacturer: Eaton Eaton

RRP Price €20.32

Specifications

Features

USB version
USB 2.0
Connector 1
USB A
Connector 2
USB A
Connector gender
Male/Female
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
28/20
Connector contacts plating
Gold
Cable shielding
Aluminum mylar foil
Maximum data transfer rate
480 Mbit/s
Maximum data transfer rate
0.48 Gbit/s
Product colour
Black

Weight & dimensions

Cable length
4.88 m

Packaging data

Package width
114.3 mm
Package depth
149.9 mm
Package height
25.4 mm
Package weight
180 g

Certificates

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332120585
Master (outer) case width
279.4 mm
Master (outer) case length
355.6 mm
Master (outer) case height
101.6 mm
Master (outer) case gross weight
1.86 kg
Harmonized System (HS) code
84733080
Country of origin
China
