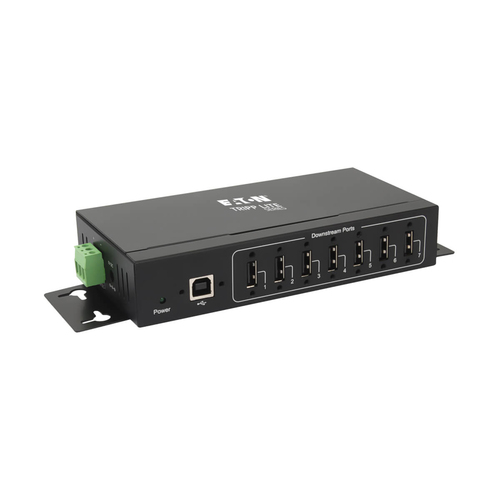

Tripp Lite U223-007-IND-1 7-Port Industrial-Grade USB 2.0 Hub - 15 kV ESD Immunity, Metal Housing, Wall/DIN Mountable

Industrial-Grade USB 2.0 Hub Adds up to 7 USB Devices to Your Computer
This USB 2.0 hub with a heavy-duty all-metal housing connects seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices. All ports support screw-locked USB 2.0 cable to prevent accidental disconnections.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This seven-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

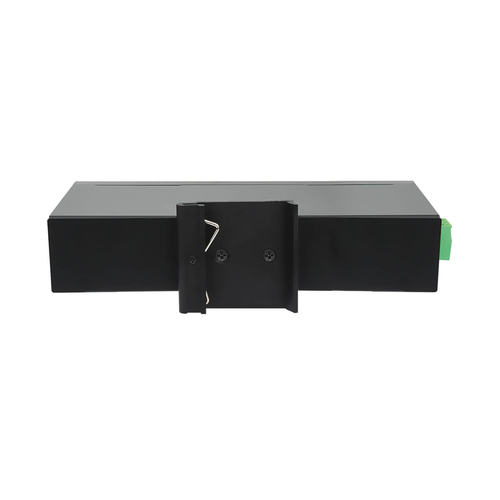

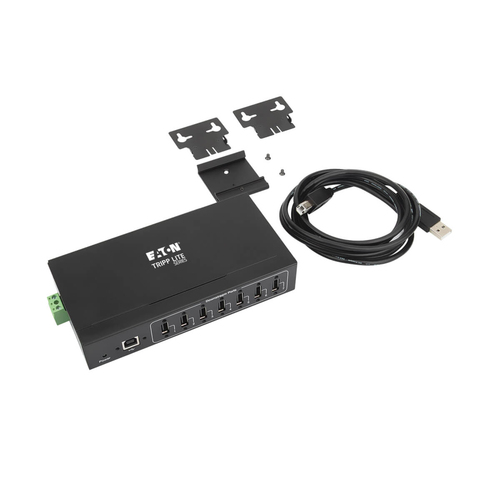

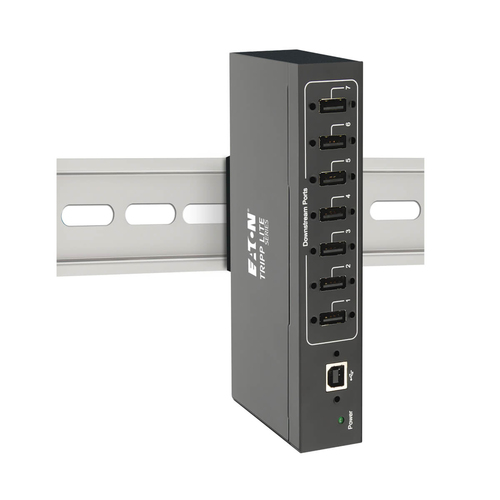

The U223-007-IND-1 requires no software to download and install. It can draw power from the connected computer through a USB-A to USB-B cable. However, for best performance, connecting a compatible 5V 3A DC external power supply (not included) is recommended. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal. A green LED indicates the unit is receiving power. The metal chassis mounts easily to a wall or DIN rail using the included hardware.

ON ORDER

SKU: U223-007-IND-1

Manufacturer: Eaton Eaton

RRP Price €95.28

Specifications

Ports & interfaces

Host interface
USB 2.0 Type-B
Hub interfaces
USB 2.0
USB 2.0 ports quantity
8
Ports quantity
7
Terminal block port
Yes

Features

Data transfer rate
480 Mbit/s
Product colour
Black
Overcurrent protection
Yes
LED indicators
Yes
Country of origin
Malaysia
Certification
RoHS, REACH, CE, FCC, NOM

Weight & dimensions

Width
80 mm
Depth
158 mm
Height
32 mm
Weight
330 g

Packaging data

Package width
175 mm
Package depth
110 mm
Package height
65 mm
Package weight
520 g
Package type
Box

Packaging content

Cables included
USB Type-A to USB Type-B
Manual
Yes

Operational conditions

Minimum operating temperature
0 °C
Maximum operating temperature
40 °C
Operating temperature (T-T)
0 - 40 °C
Operating temperature (T-T)
32 - 104 °F
Storage temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
5 - 90%

Logistics data

Master (outer) case width
365 mm
Master (outer) case length
340.1 mm
Master (outer) case height
125 mm
Master (outer) case gross weight
5.6 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332253030
Harmonized System (HS) code
8471.80.1000
