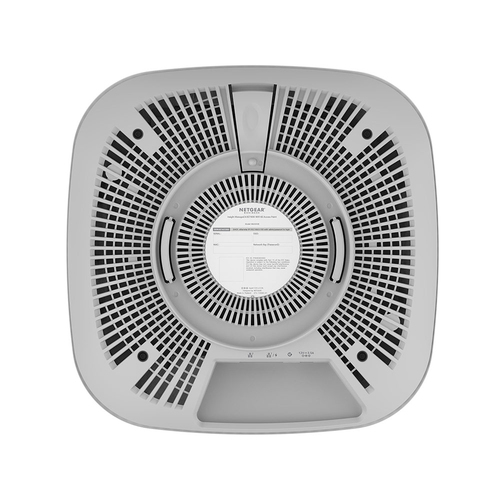

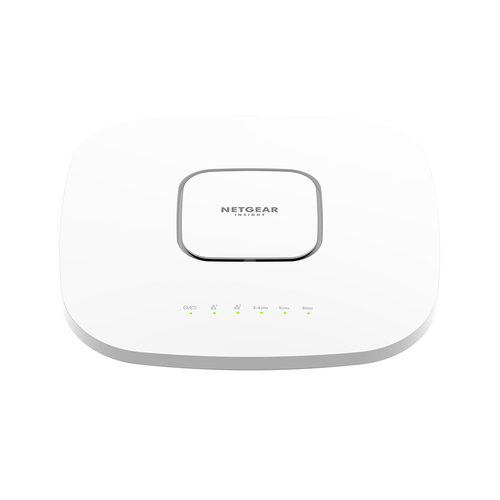

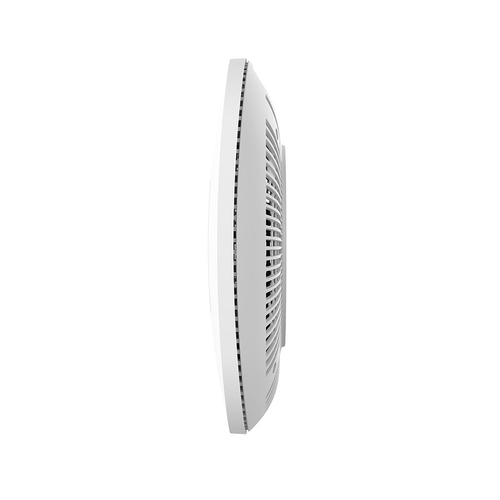

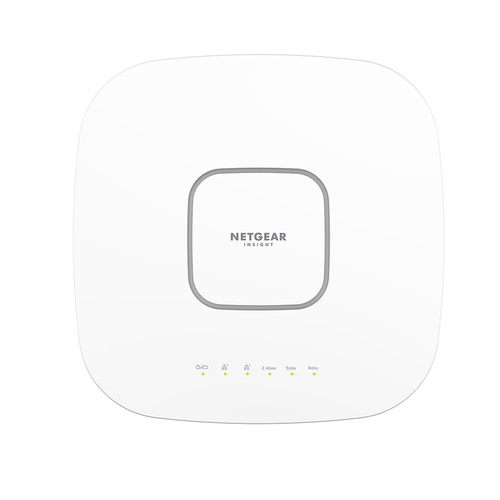

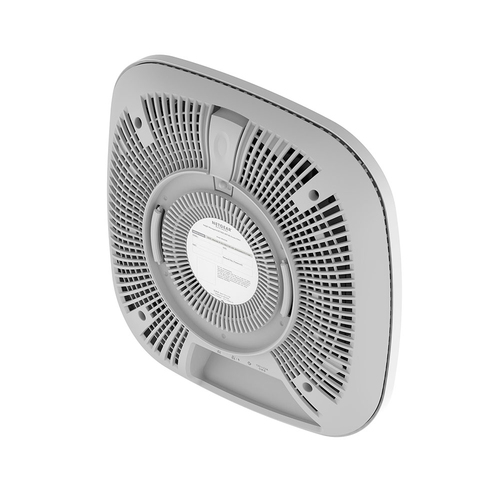

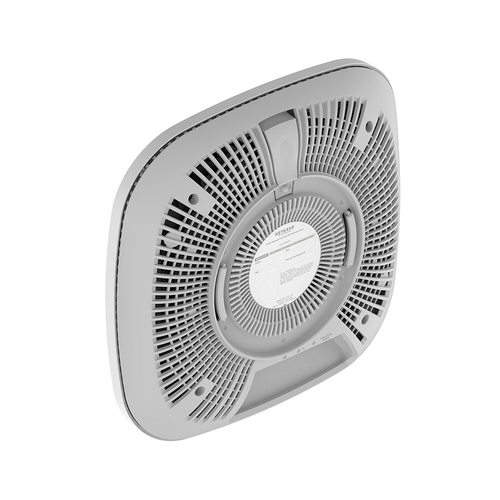

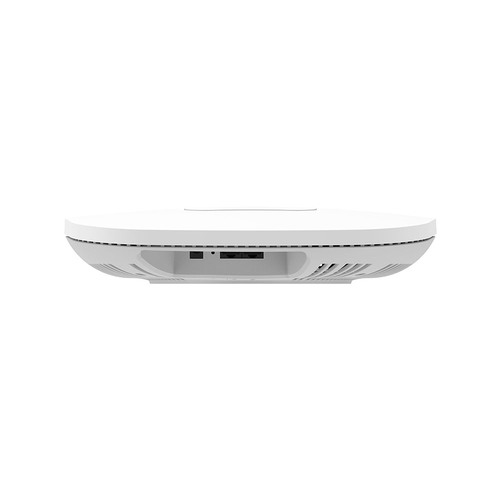

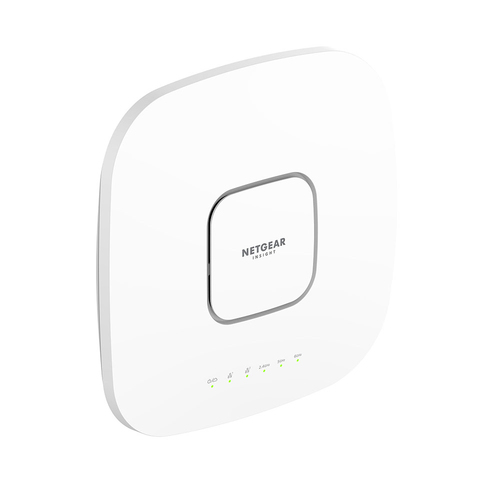

NETGEAR WAX630E 7800 Mbit/s White Power over Ethernet (PoE)

First Tri-Band WiFi 6E access point, WAX630E is the most powerful SMB access point in the industry. With WiFi 6E, a new 6Ghz band added to WiFi 6 making it the fastest WiFi available. Offers the features and capabilities of WiFi 6 access points, including higher performance, lower latency, and faster data rates, and extends into the new 6 GHz band for expanded spectrum capacity.

Wifi 6e, The Fastest Wifi Ever
WAX630E adds a new 6GHz band for new high-performance WiFi 6E devices like laptops and smartphones, reducing data loads on the other two bands so WiFi speed increases for every device connected to the access point.

Netgear Insight Remote Management
Manage locally or remotely through the Cloud for simple
yet powerful control of your network anytime, anywhere. Includes 1-year subscription.

Maximize Performance
WITH A NETGEAR POE++ SWITCH
2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch

ON ORDER

SKU: WAX630E-100EUS

Manufacturer: Netgear Netgear

RRP Price €696.45

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
7800 Mbit/s
Maximum data transfer rate (2.4 GHz)
600 Mbit/s
Maximum data transfer rate (5 GHz)
4800 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Auto MDI/MDI-X
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Spread spectrum method
OFDM, OFDMA
Modulation
OFDM
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes

Security

Security algorithms
EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
MAC address filtering
Yes
Service Set Identifier (SSID) features
SSID broadcast, SSID broadcast on/off
Auto Wireless Distribution System (WDS)
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes

Management features

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes

Power

Power over Ethernet (PoE)
Yes
Output voltage
12 V
Output current
3.5 A

Design

Placement
Ceiling, Wall
Product colour
White
Reset button
Yes

Antenna

Antenna type
Internal
Antenna gain level (max)
4.4 dBi

Weight & dimensions

Width
266.6 mm
Depth
268.3 mm
Height
55.5 mm
Weight
1.05 kg

Packaging content

Quantity per pack
1 pc(s)
Mounting kit
Yes
Quick start guide
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Logistics data

Harmonized System (HS) code
85176990
