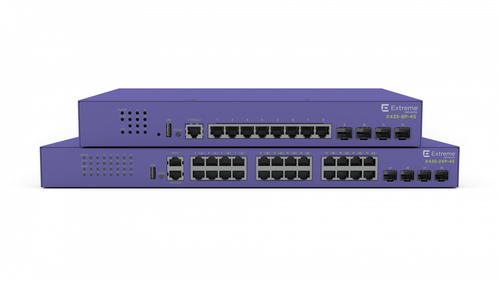

Extreme networks ExtremeSwitching X435 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Violet

Explore Switches for Distributed Enterprises, Branches and Small Sites
Entry-level switches for distributed enterprises, branches and small sites

Fanless Operation
X435 Series switches support fanless operation making them ideal for classrooms, retail sites or other noise sensitive environments, especially outside the wiring closet.

Flexible PoE
Standard-based 30W PoE ports on the X435 can power Ethernet-connected edge devices, such as IP phones or wireless APs, without the need for additional electric cabling. Fast and perpetual PoE features also help speed powered edge device start-up while minimizing disruption during an X435 switch restart.

Fabric Attach
Fabric Attach on the X435 can be used to automate the connection to Extreme’s campus-based Fabric Connect solution. Fabric Attach provides zero-touch edge provisioning and allows the X435 to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure.

Role-Based Policy
The X435 supports role-based policies centrally administered through the ExtremeControl policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent specific operational groups that may exist in an enterprise. Each defined role can then be granted individualized access to specific network services or applications.

Audio Video Bridging (AVB)
AVB on the X435 delivers reliable, real-time transmission over Ethernet for today's high-definition, time-sensitive multimedia applications.

ON ORDER

SKU: X435-24P-4S

Manufacturer: Extreme networks Extreme networks

RRP Price €2,290.65

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4

Network

Networking standards
IEEE 802.3at
10G support
No
Number of VLANs
4096

Data transmission

Switching capacity
68 Gbit/s
Forwarding rate
50.6 Mpps
MAC address table
16000 entries
Number of queues
8
Jumbo frames support
Yes

Security

Access Control List (ACL) ingress
1000

Design

Rack mounting
Yes
Stackable
Yes
Product colour
Violet

Performance

Built-in processor
Yes
Internal memory
512 MB
Flash memory
128 MB

Power

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W

Operational conditions

Heat dissipation
43.9 BTU/h

Weight & dimensions

Width
441 mm
Depth
254 mm
Height
43.5 mm
Weight
3.48 kg

Certificates

Certification
EU RoHS, EU WEEE, China RoHS, Taiwan RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
