Extreme networks X435-8T-4S network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Violet

Name: Extreme networks X435-8T-4S network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Violet
Brand: Extreme networks
SKU: X435-8T-4S
Price: 919.39 EUR
Availability: OutOfStock

The X435 Series are economical, standalone Ethernet switches designed for enterprises looking for a value-based edge solution. Powered by one of Extreme’s flagship operating systems, ExtremeXOS, X435 models deliver comprehensive Layer 2 switching, static routing, superior PoE capabilities, role-based policy, and advanced security services. This makes these switches ideal for enterprises looking for secure and cost-effective Ethernet connectivity in their branch/small sites or at their network edge.

The X435 Series is available in five models: three 8-port compact models, and two 24-port models. Select 8-port and 24-port models are equipped with up to four 100M/1Gb/2.5Gb SFP uplink ports. Select models are available with IEEE 802.3at PoE+ to power connected IoT devices (such as IP phone and surveillance cameras), wireless access points, and other devices. All 8-port models are fanless, enabling silent operation ideal in noise-sensitive environments. The family also includes an 8-port model supporting PoE passthrough that can draw power from an upstream PoE switch while providing up to 100W of downstream PoE to a connected device, eliminating the need for a separate power supply unit.

ToggleAudio Video Bridging
The X435 Series supports IEEE 802.1 Audio Video Bridging (AVB). This allows X435 models to deliver reliable, real-time audio/video transmission over Ethernet, meeting the quality of service required for today’s high-definition, time-sensitive multimedia streams.

ToggleCloud-Based Network Management
The X435 Series can be managed by ExtremeCloud IQ and ExtremeCloud IQ – Site Engine for centralized switch management, giving you a consolidated view of users, devices, and applications across wired and wireless networks. ExtremeCloud IQ enables zero touch provisioning, allowing you to quickly bring new X435 switches online and a granular view that enables efficient inventory and network topology management.

Alternatively, X435 on-box management can be done manually via a web-based GUI or generic command-line interface (CLI).

ToggleFabric Attach
Fabric Attach is available on all X435 models to provide you with an automated connection to Extreme’s Fabric Connect solution. Providing zero touch edge provisioning, Fabric Attach gives you access to Extreme Fabric Connect infrastructure’s virtualized services and advanced security capabilities.

ToggleFlexible PoE
The X435 Series supports PoE with IEEE standards-based 30W access ports and 60W or 90W uplink ports on select models. This allows PoE to eliminate the need for additional electrical cabling and circuits typically needed to power edge devices (such as IP phones or wireless access points). X435 models also use PoE to address unique edge switch and device needs: they enable perpetual PoE, which prevents service disruptions by maintaining PoE during switch restarts, as well as Fast PoE, which speeds time for endpoint startup by supplying power to edge or IoT devices before switch startup is completed.

TogglePoE Power from Upstream Switch
The 8-port X435 model, X435-8P-2T-W, eliminates the need for a separate power supply unit by drawing its required power from an upstream PoE switch via its Type 4 (30W/60W/90W) links. Delivery of downstream PoE power is still enabled, with a maximum of 100W when drawn from both its 90W uplinks.

ToggleRole-Based Policy
X435 models support role-based policies centrally administered through the ExtremeControl policy manager. This policy framework allows your network administrators to define distinct roles or profiles to match your enterprise’s operational groups. These defined roles can then be granted access to your chosen network services or applications and access privileges enforced both wired and wireless network access points.

ON ORDER

SKU: X435-8T-4S

Manufacturer: Extreme networks

RRP Price €919.39

Specifications

Management features

Switch type

Managed

Web-based management

Yes

Cloud-managed

Yes

Configuring Location Settings (CLI)

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

Console port

RJ-45

USB 2.0 ports quantity

Network

Networking standards

IEEE 802.3at

Full duplex

Yes

Policy-based routing

Yes

Half duplex

Yes

Auto-sensing

Yes

Number of VLANs

4096

Data transmission

Switching capacity

36 Gbit/s

Forwarding rate

26.8 Mpps

MAC address table

16000 entries

Number of queues

Jumbo frames support

Yes

Security

Access Control List (ACL)

Yes

Access Control List (ACL) ingress

1000

Multicast features

Multicast support

Yes

Multicast MAC address table

1500 entries

Design

Rack mounting

Yes

Stackable

Yes

Form factor

Product colour

Violet

LED indicators

Yes

Performance

Built-in processor

Yes

Processor model

ARM Cortex-A9

Internal memory

512 MB

Flash memory

128 MB

Power

Power source

Power consumption (typical)

6.5 W

Power consumption (max)

16.7 W

Power over Ethernet (PoE)

Yes

Operational conditions

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 95%

Storage relative humidity (H-H)

10 - 95%

Operating altitude

0 - 3000 m

Heat dissipation

27.3 BTU/h

Weight & dimensions

Width

320 mm

Depth

200 mm

Height

43.4 mm

Weight

1.87 kg

Packaging data

Package width

426 mm

Package depth

323 mm

Package height

133 mm

Package weight

2.72 kg

Description

Manufacturer

Extreme networks

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

1.87 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

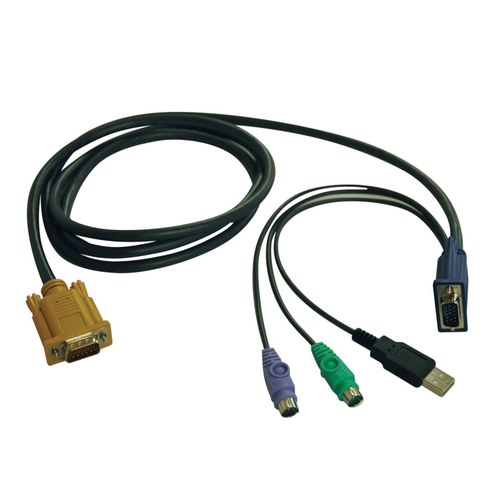

Tripp Lite P778-010 USB/PS2 Combo Cable for NetDirector KVM Switch B020-U08/U16, 10 ft. (3.05 m) Other
