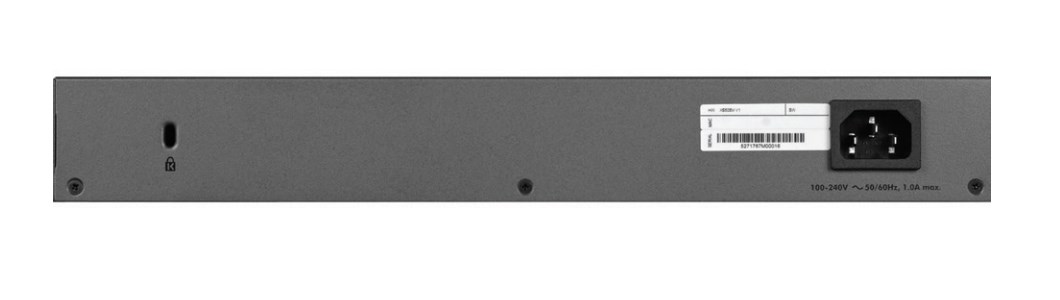

NETGEAR XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver

Name: NETGEAR XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver
Brand: Netgear
SKU: XS505M-100EUS
Price: 487.37 EUR
Availability: InStock

5 IN STOCK

SKU: XS505M-100EUS

Manufacturer: Netgear Netgear

RRP Price €487.37

Specifications

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

SFP+ module slots quantity

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Full duplex

Yes

Flow control support

Yes

Data transmission

Switching capacity

100 Gbit/s

MAC address table

2000 entries

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

128 MB

Design

Rack mounting

Yes

Product colour

Grey, Silver

LED indicators

Yes

Safety

CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI

Performance

Mean time between failures (MTBF)

1093237 h

Power

Power source

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1.5 A

Power consumption (typical)

12.25 W

Power consumption (max)

22.5 W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Heat dissipation

85.3 BTU/h

Weight & dimensions

Width

328 mm

Depth

169 mm

Height

43.2 mm

Weight

1.38 kg

Certificates

Certification

47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Netgear

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

1.38 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
