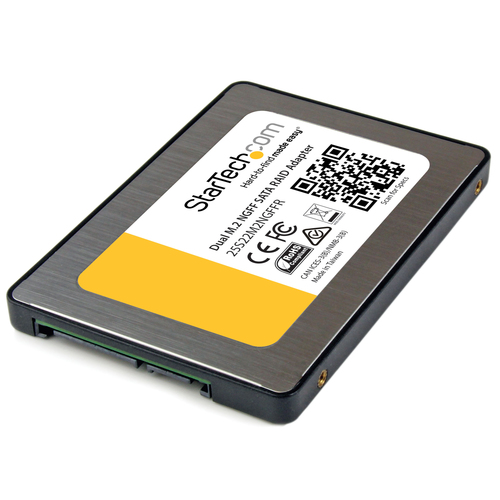

StarTech.com Dual M.2 NGFF SATA Adapter with RAID

StarTech.com Dual M.2 NGFF SATA Adapter with RAID

Name: StarTech.com Dual M.2 NGFF SATA Adapter with RAID
Brand: StarTech.com
SKU: 25S22M2NGFFR
Price: 55.01 EUR
Availability: OutOfStock

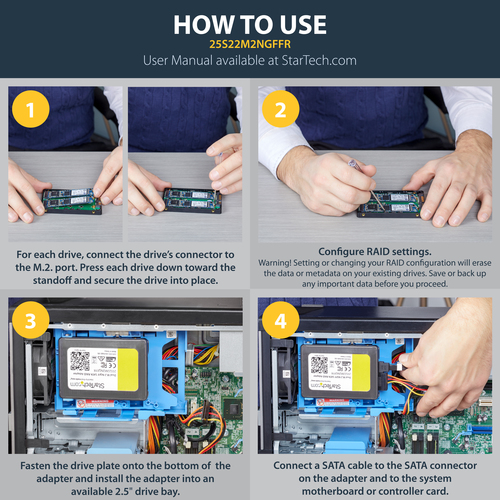

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5” drive bay and configure a powerful RAID array.

Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.

Maximize file transfer speeds
The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Get dependable drive protection
The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.

The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.

ON ORDER

SKU: 25S22M2NGFFR

Manufacturer: StarTech.com

RRP Price €55.01

Specifications

Ports & interfaces

Host interface

SATA

Output interface

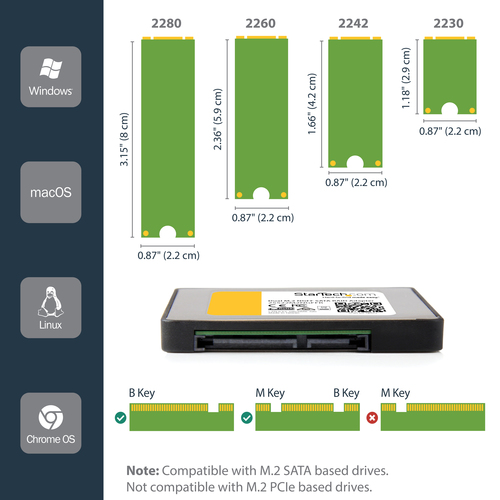

M.2

SATA revision

3.0

Port multiplier

Yes

Design

Internal

Product colour

Black, Metallic, White, Yellow

Mean time between failures (MTBF)

500000 h

Features

Chipset

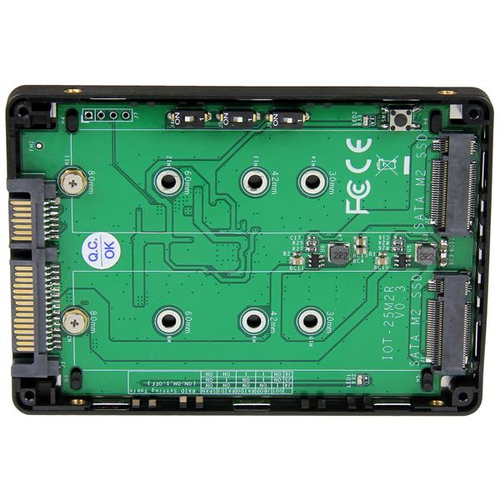

ASMedia - ASM1092R

Data transfer rate (max)

6 Gbit/s

RAID levels

0, 1, BIG, JBOD

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Technical details

Compliance certificates

RoHS

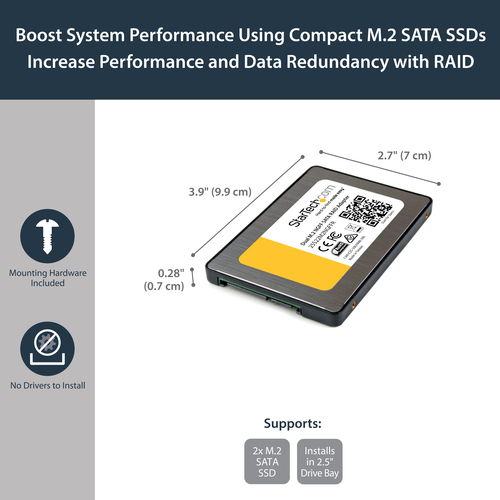

Weight & dimensions

Width

68 mm

Depth

98 mm

Height

8 mm

Weight

55 g

Packaging data

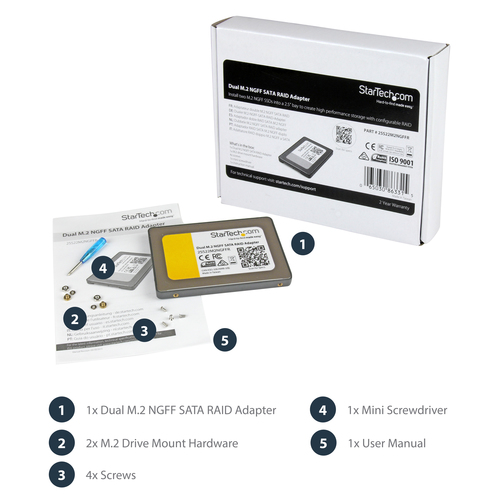

Quick installation guide

Yes

Package width

131 mm

Package depth

165 mm

Package height

31 mm

Package weight

118 g

Logistics data

Harmonized System (HS) code

84733020

Other features

Material

Plastic, Steel

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.055 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

PLATFORM CRU HBA 9400-8E Hard Disks & SSDs

PLATFORM CRU HBA 9400-8E

€939.69

SE4U102-0 0TB NTAA CHASSIS SAS Hard Disks & SSDs

SE4U102-0 0TB NTAA CHASSIS SAS

€11,988.86

Western Digital My Passport Ultra external hard drive 5 TB USB Type-C 3.2 Gen 1 (3.1 Gen 1) Blue Hard Disks & SSDs

Built For Today. Ready For Tomorrow.Equipped with USB-C™ technology, the My Passport™ Ultra portable drive offers an easy way to expand your storage with a modern metal design that complements your PC. It’s Windows® 10-ready out of the box to seamlessly deliver plug-and-play storage, while password protection with hardware encryption helps enforce the security of your content. And with up to 5TB of storage and a 3-year limited warranty, you get storage to rely on for years to come.USB-C™ And USB 3.1 CompatibleFeaturing USB-C™ technology, the My Passport™ Ultra portable drive delivers quick and easy storage for your PC, while the included USB 3.1 adapter makes sure it’s compatible with older machines.Innovative Style And FunctionFusing modern anodized metal and textures, the My Passport™ Ultra portable drive is available in a variety of colors to seamlessly match your personal style and the latest computers.Get More Out Of WD DiscoveryIncluded WD Discovery™ software makes it easy to back up your photos, videos, and documents to the My Passport Ultra drive. To help preserve your online life, WD Discovery allows you to import your content from popular social media and cloud storage services, like Facebook, Dropbox and Google Drive™.3 WD Discovery software can also be used to manage your drive settings like reformatting, LED control and more.Easy-To-Use Auto Backup SoftwareFor your photos, videos or business documents, the WD Backup™ software included in WD Discovery makes it easy to help protect what’s important to you by automating your backup routine. Simply download WD Backup™, plug in your drive and set your hourly, daily or monthly schedule.Password Protection With 256-Bit Aes Hardware EncryptionThe WD Security function within WD Discovery helps keep your files private with a password you can choose, making it easy to enable password protection and 256-bit AES Hardware Encryption.High CapacityWith up to 5TB of capacity, you have plenty of room to keep your photos, videos, music, and documents with you, wherever you go and in your control.Windows ReadyMy Passport Ultra is formatted for Windows® 10 to deliver plug-and-play storage out of the box. With WD Discovery™ software, you can also download the NTFS driver for macOS, so you can work seamlessly between operating systems without reformatting.

€159.26

Western Digital My Passport WDBR9S0060BBK-WESN external hard drive 6 TB 2.5" Micro-USB B 3.2 Gen 1 (3.1 Gen 1) Black Hard Disks & SSDs

Every journey needs a passportHelp safeguard your cherished memories while on-the-move with the My Passport for Mac portable hard drive. Mac-ready and compatible with USB-C™, this high-capacity storage device provides seamless USB connectivity, enabling hassle-free access to your precious files anytime, anywhere. Make the most of the included Acronis® True Image™ for Western Digital software2 to help securely back up your data, fortified with robust protection against ransomware threats. Don't let a memory slip away – help keep them safe and accessible with the My Passport portable hard drive.Ready for Macs. Works with Windows®.USB-C™ compatible, the My Passport for Mac portable storage works straight out of the box with Mac devices. To help with reading and writing your drive with Windows® 10+ computers without having to reformat, a downloadable HFS+ driver is provided.Slim styleSlim and durable design to help make your life on-the-go effortlessly convenient. Robust construction provides you with a reliable companion for your adventures.Expansive CapacityUnlock vast storage possibilities with up to 6TB1 capacity, providing plenty of space to carry your photos, videos, music, and important documents wherever life takes you - helping to keep everything securely within your grasp.Backup that’s simple. Help protect against ransomwareScheduling backups of your precious files made easier with the included Acronis® True Image™ for Western Digital software2. Also help fortify your important applications and protect your computer system against data loss caused by ransomware attacks.Help safeguard what matters mostHelp safeguard your files against unauthorized access at home or away. Use our included software2 to add an extra layer of security with password protection and built-in 256-bit AES encryption.A worry-free warrantyWe build our drives using tried and true components and provide a 3-year limited warranty3 for extra peace of mind.Designed with the Planet in MindThe enclosure of this drive is composed of more than 50% post-consumer recycled plastic. Packaging is made of over 50% post-consumer recycled pulp and is fully recyclable.

€193.95

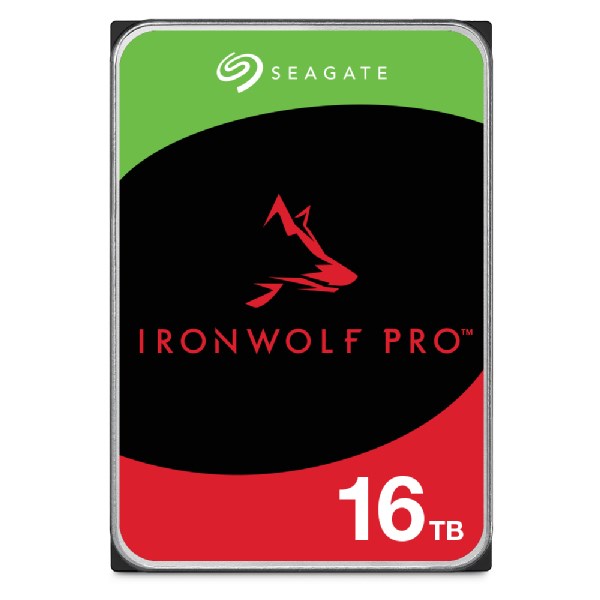

Seagate IronWolf Pro ST16000NT001 internal hard drive 16 TB 7200 RPM 256 MB 3.5" Hard Disks & SSDs
