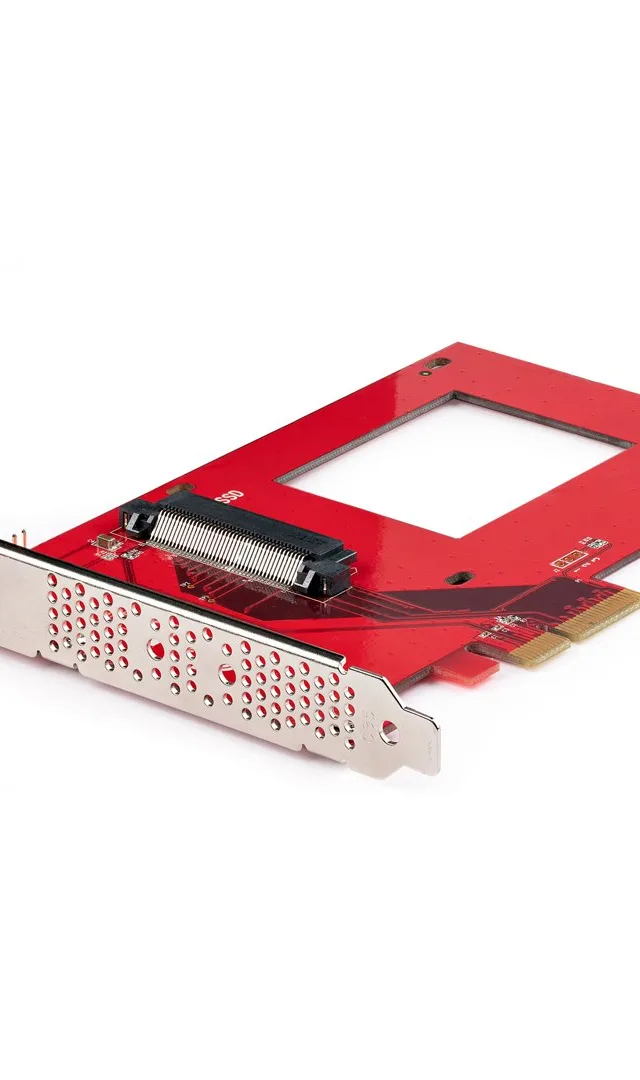

StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent

StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent

Name: StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compl...
Brand: StarTech.com
SKU: PEX4SFF8639U3
Price: 57.22 EUR
Availability: InStock

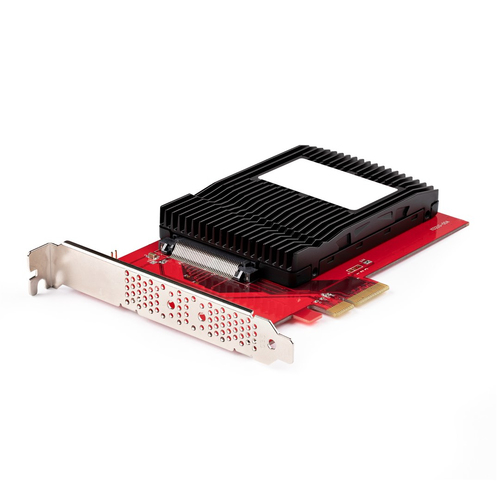

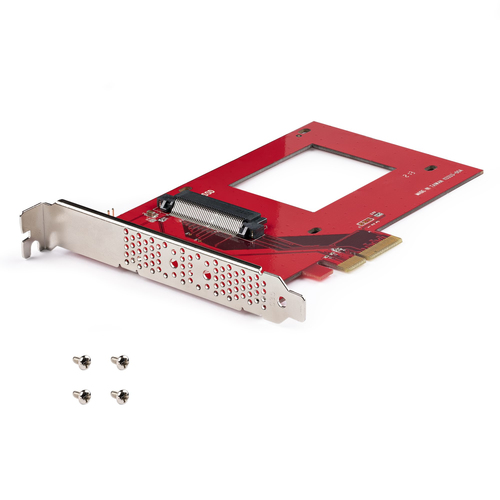

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot

Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.

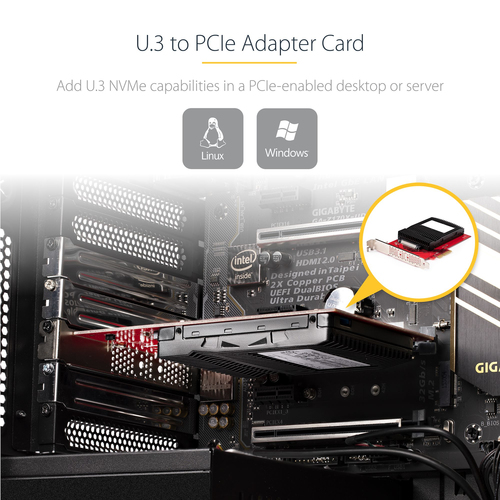

Add U.3 Capabilities to a Desktop or Server

Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.

Universal Compatibility

The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.

Optimal Airflow and Reliable Performance

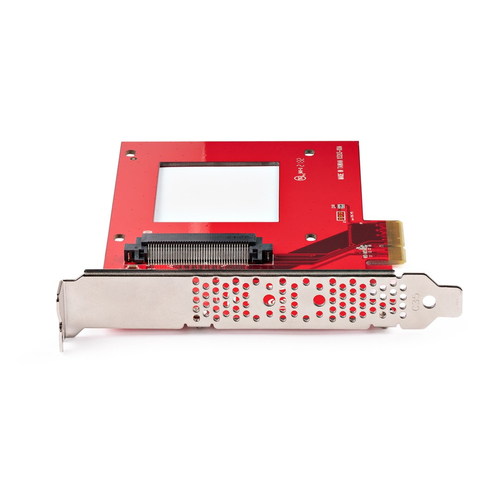

The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.

The StarTech.com Advantage

11 IN STOCK

SKU: PEX4SFF8639U3

Manufacturer: StarTech.com

RRP Price €57.22

Specifications

Ports & interfaces

Host interface

PCIe

Output interface

U.3

Design

Internal

Yes

Product colour

Red

LED indicators

Activity, Power

Mean time between failures (MTBF)

21693912 h

Hot-swap

Features

Plug and Play

Yes

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

20 - 80%

System requirements

Supported storage drive heights

5,7,9.5,12.5,15 mm

Weight & dimensions

Width

90 mm

Depth

154 mm

Height

1.5 mm

Weight

62 g

Packaging data

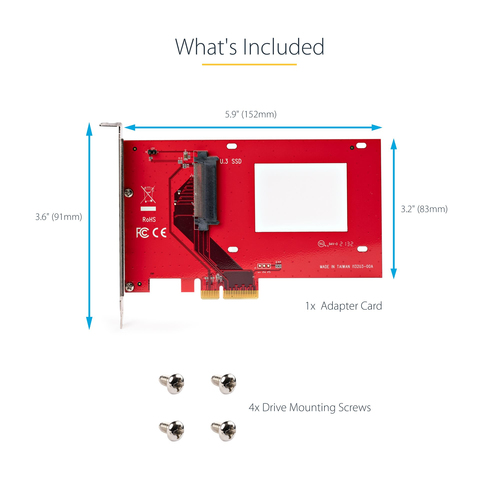

Screws included

Yes

Quick installation guide

Yes

Package width

215 mm

Package depth

155 mm

Package height

30 mm

Package weight

130 g

Logistics data

Products per master (outer) case

60 pc(s)

Master (outer) case width

460 mm

Master (outer) case length

340 mm

Master (outer) case height

490 mm

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.062 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Western Digital Red SA500 1 TB M.2 Serial ATA III 3D NAND Hard Disks & SSDs

Supercharge your NASBoost your NAS system’s performance and responsiveness with the WD Red™ SA500 NAS SATA SSD. Since your NAS system is always on, a reliable drive is essential. Unlike standard SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. This durability together with efficient caching of big files make these drives ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and other demanding applications. With 2.5” and M.2 form factors and capacities from 500GB up to 4TB1 (2.5” only), the WD Red SA500 NAS SATA SSD lets you optimize your existing or next NAS system for superior performance and endurance.The Drive For NASSpeedOptimized for caching in NAS systems to rapidly access your most frequently used contentEnduranceFor tough workloads demanded by NAS, giving you the reliability you need in a 24/7 environmentFlexibleAvailable in 2.5” and M.2 form factors so you can upgrade your existing NAS system or design a new one from scratch

€82.10

Western Digital Ultrastar DC HC310 HUS726T6TALE6L4 internal hard drive 6 TB 7200 RPM 256 MB 3.5" Serial ATA III Hard Disks & SSDs

Delivering Economics and Access Speed to Data Center Applications and WorkloadsAs the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-filled design that delivers up to the industry leading 10TB1 of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e2 sector size.

€197.27

Western Digital Ultrastar DC HC320 internal hard drive 8 TB 7200 RPM 256 MB 3.5" Serial ATA III Hard Disks & SSDs

As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on lower capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, Ultrastar DC HC320 is an 8TB HDD that helps address economic and access requirements of many traditional IT workloads. Lower capacity drives also help address architecture limitations. The Ultrastar DC HC320 is designed for traditional storage and server applications as well as distributed and scalable computing, including block and file storage architectures, providing fast 7200 RPM performance and lower acquisition cost to help ease budget constraints.

€209.34

Western Digital Ultrastar DC HC310 HUS726T4TALA6L4 internal hard drive 4 TB 7200 RPM 256 MB 3.5" Serial ATA III Hard Disks & SSDs

€170.66

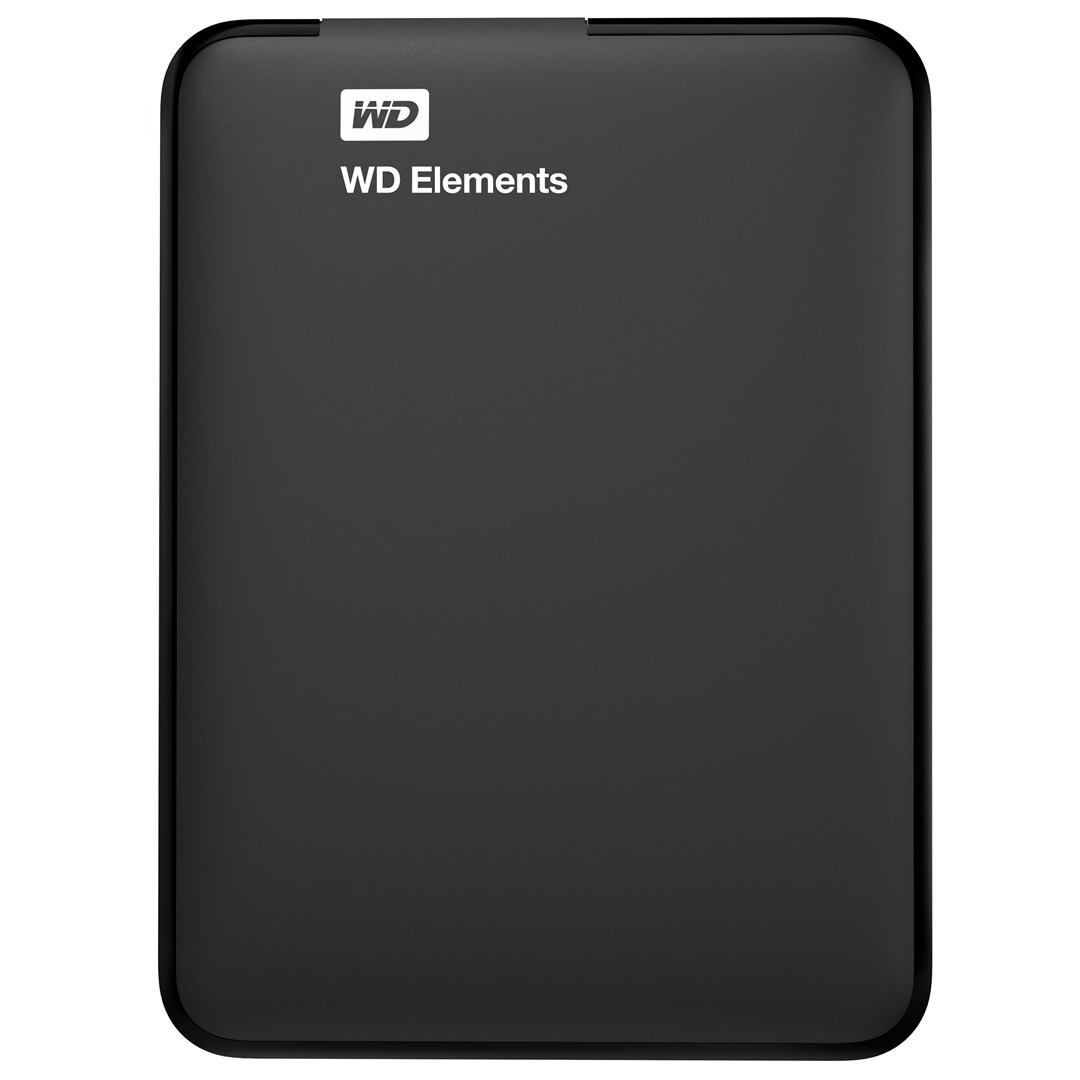

Western Digital Elements Portable external hard drive 2 TB 5400 RPM 2.5" Micro-USB B 3.2 Gen 1 (3.1 Gen 1) Black Hard Disks & SSDs
