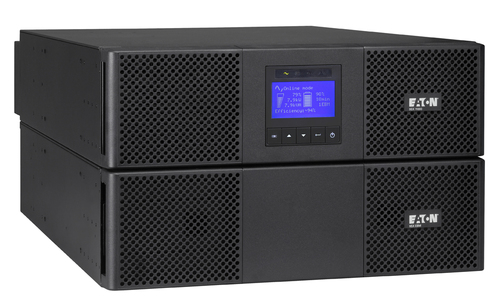

Eaton 9SX11Ki uninterruptible power supply (UPS) 11 kVA 10000 W

Eaton 9SX11Ki uninterruptible power supply (UPS) 11 kVA 10000 W

Name: Eaton 9SX11Ki uninterruptible power supply (UPS) 11 kVA 10000 W
Brand: Eaton
SKU: 9SX11KI
Price: 6425.53 EUR
Availability: OutOfStock

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.

ON ORDER

SKU: 9SX11KI

Manufacturer: Eaton Eaton

RRP Price €6,425.53

Specifications

Features

Output power capacity

11 kVA

Output power

10000 W

Input operation voltage (min)

100 V

Input operation voltage (max)

276 V

Input frequency

40/70 Hz

Output operation voltage (min)

200 V

Output operation voltage (max)

250 V

Output voltage regulation

Maximum current

150 A

Efficiency

98%

Crest factor

3:1

Output voltage Total Harmonic Distortion (THD)

Input current Total Harmonic Distortion (THD)

Noise level

50 dB

Ports & interfaces

AC outlet types

Terminal

Power plug

Terminal

USB 2.0 ports quantity

RS-232 ports

Battery

Typical backup time at half load

9 min

Automatic battery test

Yes

Design

Form factor

Rackmount/Tower

Rack capacity

Product colour

Black

Display type

LCD

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Safety regulation & standards

Safety

EN 62040-1, UL 1778, CSA 22.2

Sustainability

Sustainability certificates

ENERGY STAR

Weight & dimensions

Width

260 mm

Depth

700 mm

Height

440 mm

Weight

86 kg

Other features

Number of phases

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

86 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
