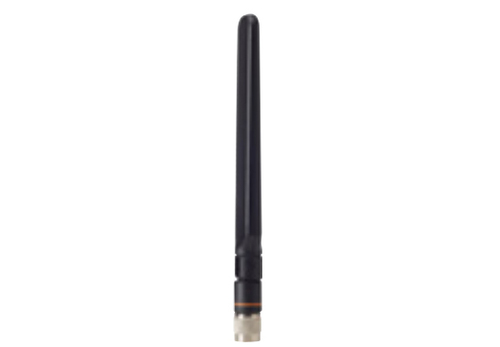

Cisco AIR-ANT2524DB-R= network antenna Omni-directional antenna RP-TNC 4 dBi

Dual-Band AntennasThe Cisco Aironet high-performance, dual-band dipole antenna. The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and 4 dBi in the 5-GHz frequency band.

ON ORDER

RRP Price €43.27

  loading...
Register for Discounts

Specifications

Performance

Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
2 dBi
Antenna gain (5 GHz)
4 dBi
Impedance
50 Ω
Horizontal beam width (2.4 GHz)
63°
Horizontal beam width (5 GHz)
39°
Antenna gain level (max)
4 dBi

Features

Antenna type
Omni-directional antenna
Antenna connector type
RP-TNC
Connector gender
Male
Voltage Standing Wave Ratio (VSWR)
2:1
Product colour
Black
Purpose
Indoor

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 85 °C

Weight & dimensions

Width
21 mm
Depth
168.5 mm
Weight
38.5 g

Logistics data

Harmonized System (HS) code
85177100

Other features

Frequency range
2.4 - 2.5GHz, 5.15 - 5.85GHz
Cisco AIR-ANT2524DB-R= network antenna Omni-directional antenna RP-TNC 4 dBi

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0385 kg

Country of Origin

N/A
