2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., White, RP-TNC

Name: 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., White, RP-TNC
Brand: Cisco
SKU: AIR-ANT2524DW-R=
Price: 24.68 EUR
Availability: InStock

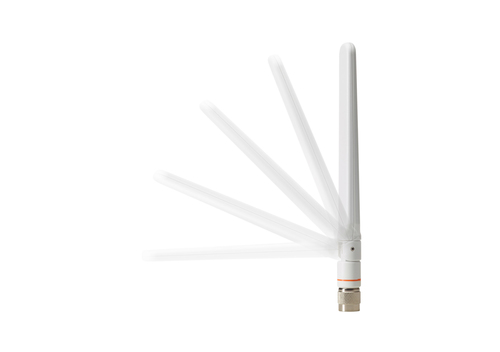

The Cisco Aironet AIR-ANT2524DW-R= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.

1078 IN STOCK

SKU: AIR-ANT2524DW-R=

Manufacturer: Cisco Cisco

RRP Price €24.68

Specifications

Performance

Frequency band

2.4/5 GHz

Antenna gain (2.4 GHz)

2 dBi

Antenna gain (5 GHz)

4 dBi

Impedance

50 Ω

Horizontal beam width (2.4 GHz)

63°

Horizontal beam width (5 GHz)

39°

Antenna gain level (max)

4 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

RP-TNC

Connector gender

Male

Voltage Standing Wave Ratio (VSWR)

2:1

Product colour

Grey

Purpose

Indoor

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-40 - 85 °C

Weight & dimensions

Width

21 mm

Depth

168.5 mm

Weight

38.5 g

Packaging data

Package width

152.4 mm

Package depth

184.2 mm

Package height

49.3 mm

Package weight

136.05 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

85177100

Country of origin

China

Other features

Frequency range

2.4 - 2.5GHz, 5.15 - 5.85GHz

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

578

WH3 (5–7 Days)

500

Weight

0.0385 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
