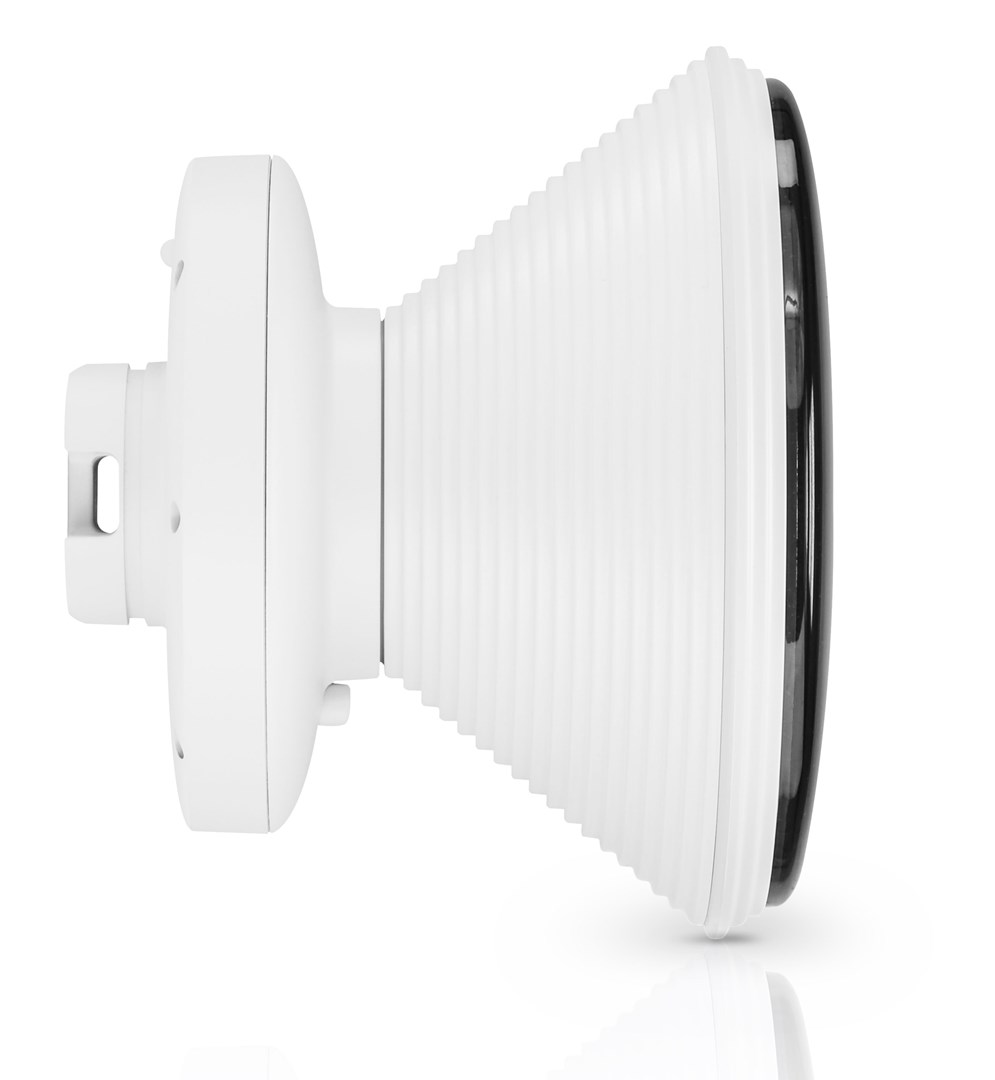

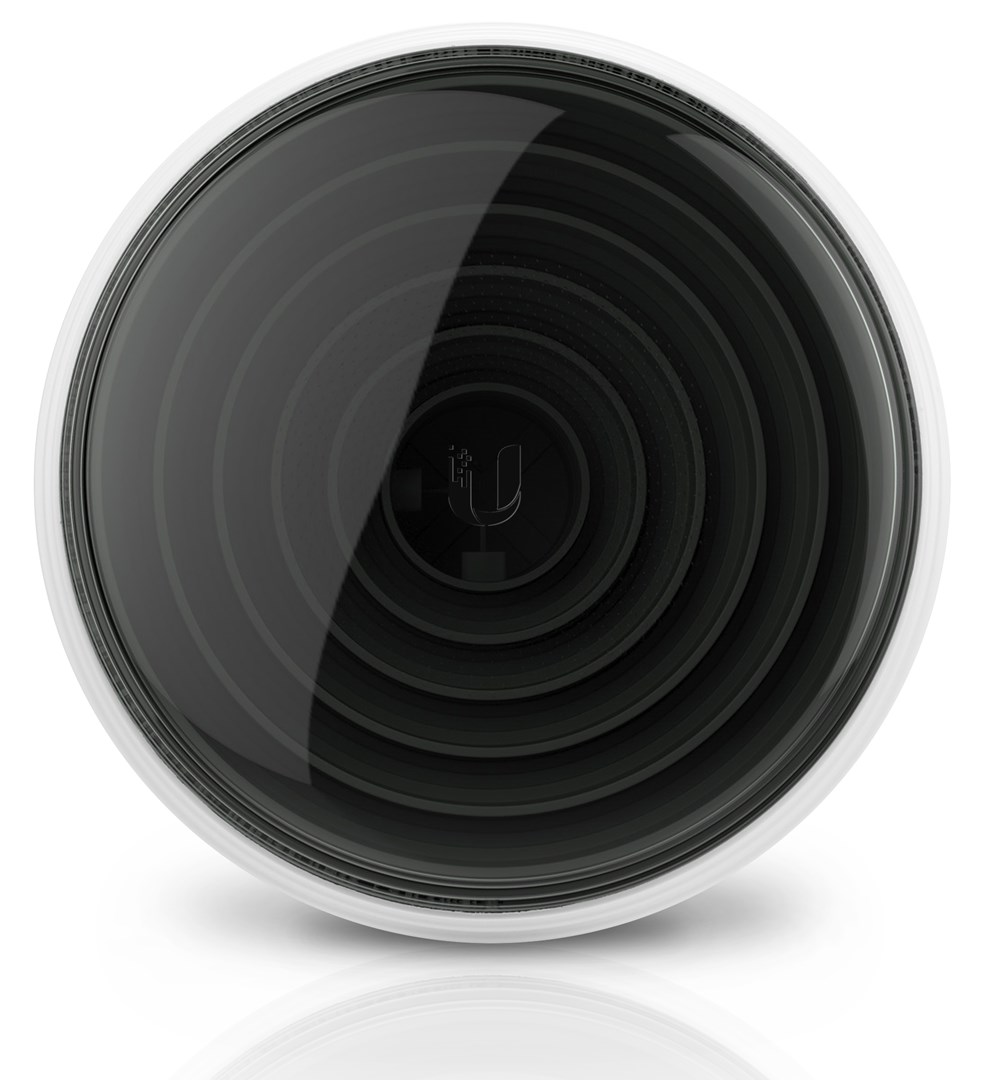

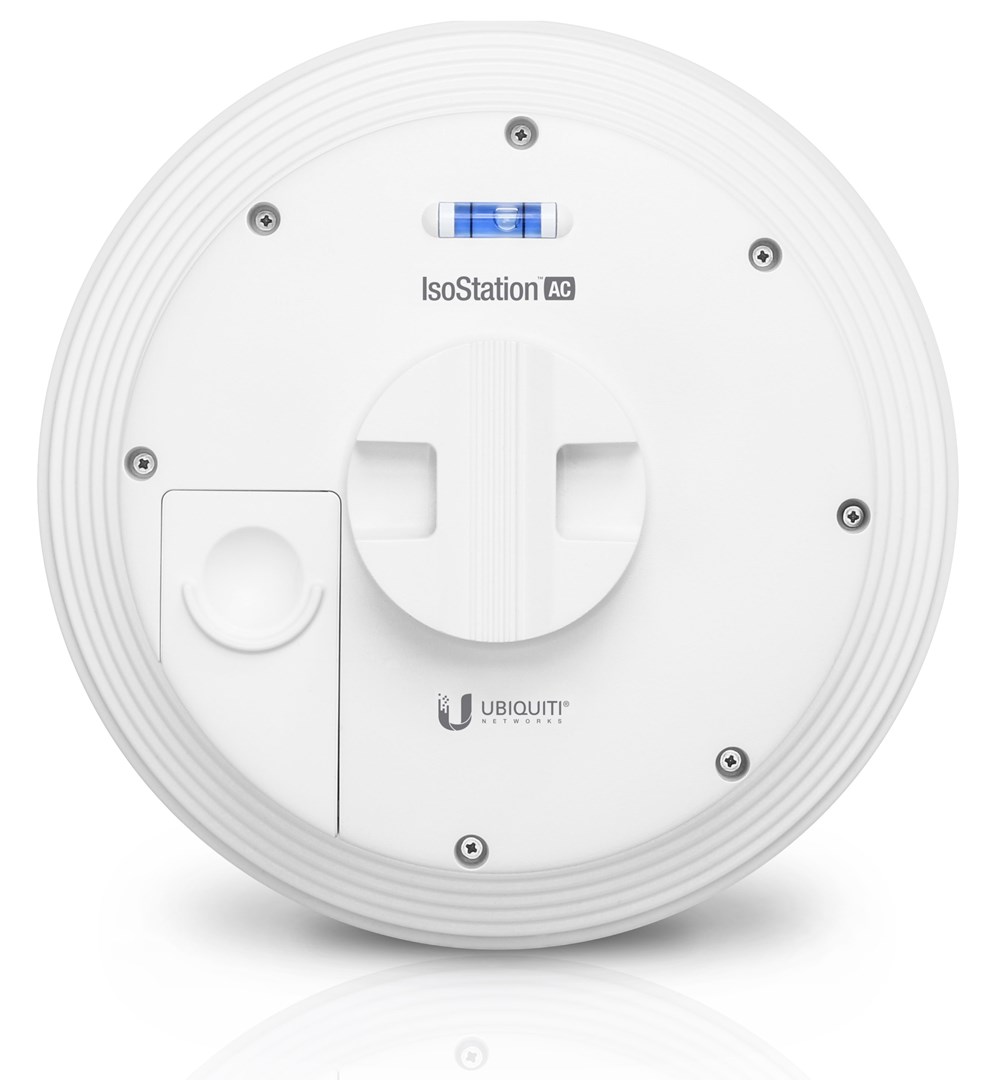

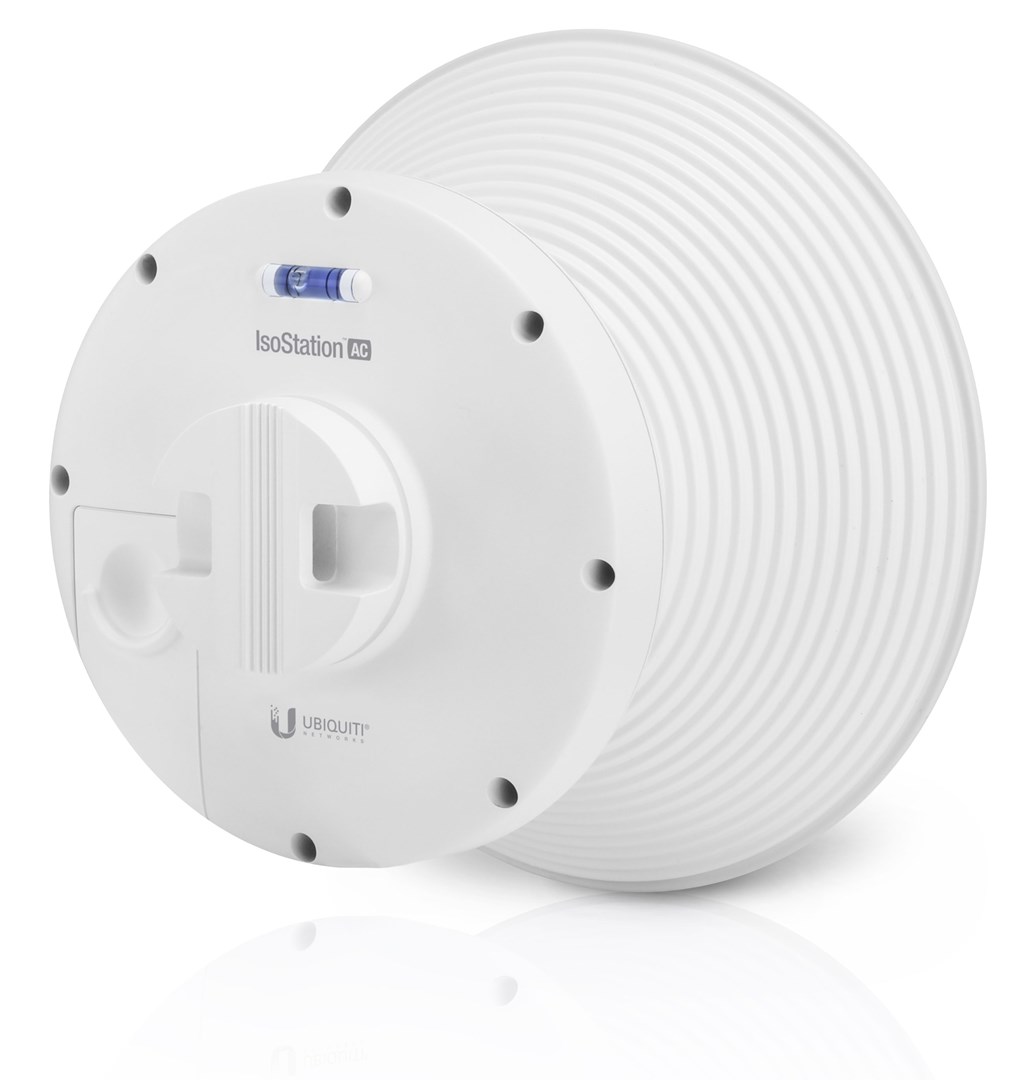

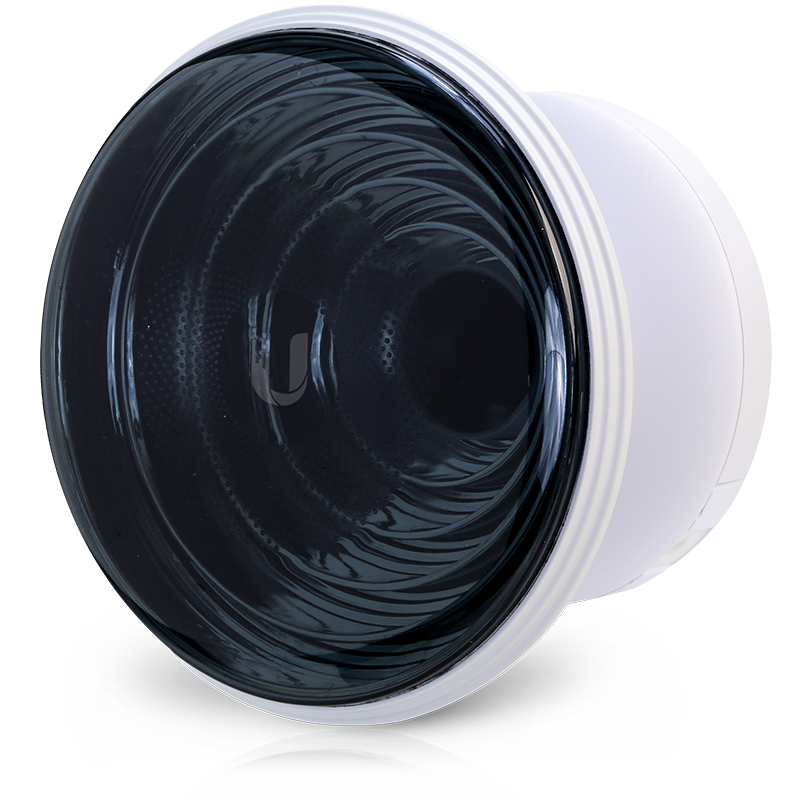

Ubiquiti IsoStation AC 450 Mbit/s White Power over Ethernet (PoE)

With a die-cast aluminum base and interchangeable antenna, the IsoStationâ„¢ is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation AC delivers throughput speeds of up to 450+ Mbps, and the IsoStation M5 delivers throughput speeds of up to 100+ Mbps.

Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

Beam Performance Perfected
The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity
IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

High MAC Efficiency
High MAC efficiency provides ±80% PHY RATE throughput.

Management Wi-Fi Radio
The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

11 IN STOCK

SKU: IS-5AC

Manufacturer: Ubiquiti Ubiquiti

RRP Price €150.09

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
450 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.412 - 2.462, 5.15 - 5.875, 5.15 - 5.25, 5.725 - 5.85 GHz
MIMO
Yes
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Transmitting power
25 dBmW

Security

Security algorithms
WPA2

Management features

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power over Ethernet (PoE)
Yes
AC input voltage
24 V
Input current
0.5 A
Power consumption (typical)
8.5 W

Design

Placement
Ceiling, Wall
Product colour
White
LED indicators
Power
Internal
No

Antenna

Antenna gain level (max)
14 dBi

Performance

Built-in processor
Yes
Internal memory
64 MB

Certificates

Certification
FCC, IC, CE

Weight & dimensions

Width
174 mm
Depth
174 mm
Height
150 mm
Weight
725.7 g

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 70 °C

Logistics data

Harmonized System (HS) code
85176990
