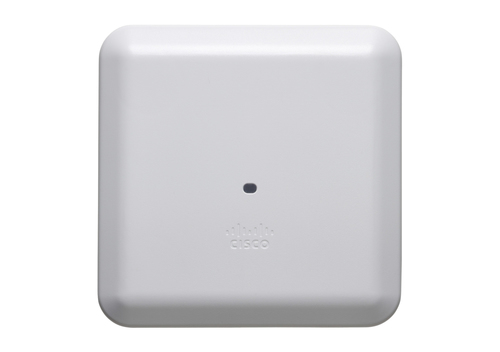

Cisco Aironet 2802I-E-K9 Wi-Fi Access Point, 802.11ac Wave 2, with Internal Antenna (AIR-AP2802I-E-K9)

The Cisco Aironet 2800 Series comes with the Best-in-class RF architecture, Aironet 2800 Series provides high-performance coverage for a high density of client devices, giving the end user a seamless wireless experience. 2800 Series Access Point is powered with industry-leading innovations such as Cisco CleanAir, ClientLink 4.0, Flexible Radio Assignment, cross-access point noise reduction and an optimised client roaming.

ON ORDER

SKU: AIR-AP2802I-E-K9

Manufacturer: Cisco Cisco

RRP Price €2,942.49

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
5200 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.412 - 2.472, 5.18 - 5.32, 5.5 -5.6, 5.64 - 5.7 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u
Channels quantity
29 channels
Channel bandwidth
20 MHz
Wi-Fi Multimedia (WMM)/(WME)
Yes
Transmitting power
23 dBmW

Security

Security algorithms
802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2
Remote Authentication Dial-In User Service (RADIUS)
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Power

Power over Ethernet (PoE)
Yes
Power consumption (typical)
30 W
Power plug type
Type C

Design

Placement
Ceiling, Wall
Product colour
White
On/off switch
Yes
LED indicators
Yes

Antenna

Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antenna gain level (max)
5 dBi

Performance

Flash memory
256 MB
Internal memory
1024 MB

Technical details

Products per shipping (inner) case
1 pc(s)

Certificates

Certification
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155

Weight & dimensions

Width
220 mm
Depth
220.5 mm
Height
55.2 mm
Weight
1.6 kg

Packaging data

Package width
246.1 mm
Package depth
246.1 mm
Package height
98.6 mm
Package weight
1.89 kg

Packaging content

Quantity per pack
1 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-30 - 70 °C
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4570 m

Logistics data

Harmonized System (HS) code
85176990
Country of origin
Mexico
Products per master (outer) case
1 pc(s)
