Peplink Antenna MAX network antenna SMA antenna SMA 6.6 dBi

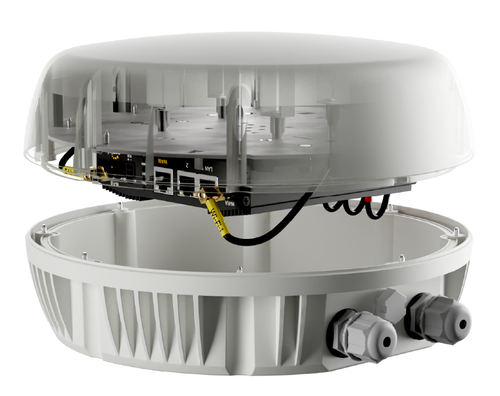

Maximum Flexibility, Maximum GainOutdoor Cellular / GPS Antenna + EnclosureWorried about cable loss?Minimize cable loss by installing your router directly into the antenna enclosure.Retain maximum signal gain by connecting the Antenna Max to the rest of your network with an ethernet cable.Maximum durabilityUV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosionMaximum valueAntenna Max is a cost-effective way to get maximum performance from your cellular and 5G routers in outdoor environments

45 IN STOCK

RRP Price €366.45

Specifications

Performance

Frequency band
5 - 6 GHz
Antenna gain (2.4 GHz)
6.2 dBi
Antenna gain (5 GHz)
6.6 dBi
Impedance
50 Ω
Antenna gain level (max)
6.6 dBi
LNA gain
27 dB
GPS frequency
600-6000 MHz
Noise figure
2.5 dB

Features

Antenna type
SMA antenna
Antenna connector type
SMA
Connector gender
Male
Polarization
Horizontal polarization
Voltage Standing Wave Ratio (VSWR)
< 2.0
Product colour
White
Housing material
Polycarbonate (PC)
International Protection (IP) code
IP67
Ultraviolet (UV) resistant
Yes
Power handling
10 W
Mounting
Wall/Pole

Power

Power consumption
10 mA
Input voltage
3.3 V

Certificates

Compliance certificates
REACH, RoHS, WEEE
Certification
MIL-STD 810F/ASTM 8117, UL 94 V-0, UL 746C

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C

Weight & dimensions

Height
120 mm
Diameter
25 cm

Packaging data

Package width
351 mm
Package depth
295 mm
Package height
146 mm

Accessories
