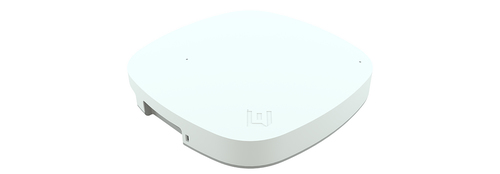

Extreme networks AP4000 3900 Mbit/s White Power over Ethernet (PoE)

WI-FI 6E TECHNOLOGY
Wi-Fi 6E leverages 802.11ax/Wi-Fi 6 capabilities such as high-density, high-capacity, and high-efficiency performance, and extends these capabilities to the 6 GHz band. The vast expansion of frequency enables new use cases and offers improved user experiences, particularly in mission-critical and dense environments.

UNIVERSAL HARDWARE
AP4000 is a universal hardware platform, which simplifies your deployment experience through powerful cloud management and simplified licensing. The AP4000 can run multiple Extreme operating systems, providing flexibility and choice while minimizing total cost of ownership.

SUPERIOR TRI-FREQUENCY RADIO PERFORMANCE
The industry’s first Wi-Fi 6E tri-radio AP is capable of multiple operating modes, optimizing for maximum performance without trading off security. The AP4000 can transmit with three data radios or with two data radios and dedicated tri-frequency sensor.

ON ORDER

SKU: AP4000-WW

Manufacturer: Extreme networks Extreme networks

RRP Price €1,104.22

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
3900 Mbit/s
Maximum data transfer rate (2.4 GHz)
287 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3at, IEEE 802.3az
Channels quantity
87 channels
Bluetooth
Yes
Bluetooth version
5.2
MIMO
Yes
MIMO type
Multi User MIMO
Modulation
256-QAM, 1024-QAM, DSSS, OFDM

Security

Security algorithms
WPA3
Number of SSID supported
24

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
1
USB connector type
Micro-USB, USB Type-A

Power

Power over Ethernet (PoE)
Yes
Power consumption (typical)
12.3 W
Power consumption (max)
16.6 W

Design

Placement
Ceiling, Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
Reset button
Yes
LED indicators
Yes

Antenna

Antenna type
Internal
Antenna direction type
Omni-directional
Antennas quantity
7

Weight & dimensions

Width
205 mm
Depth
205 mm
Height
37 mm
Weight
850 g

Packaging content

Mounting kit
Yes
Quick start guide
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 50%
Operating temperature (T-T)
-40 - 70 °C
Storage temperature (T-T)
0 - 95 °C

Accessories

License
