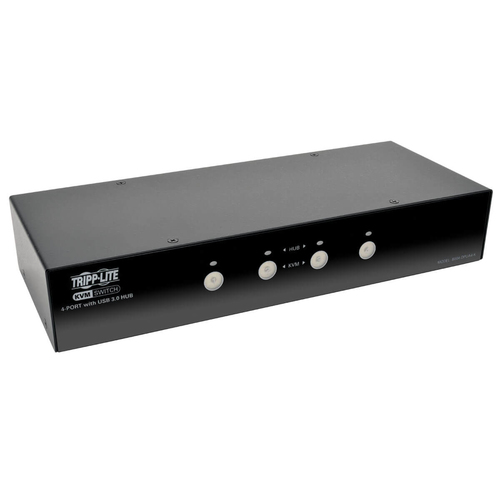

Tripp Lite B004-DPUA4-K 4-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub

Access and Control Up to 4 Computers with One KVM Switch

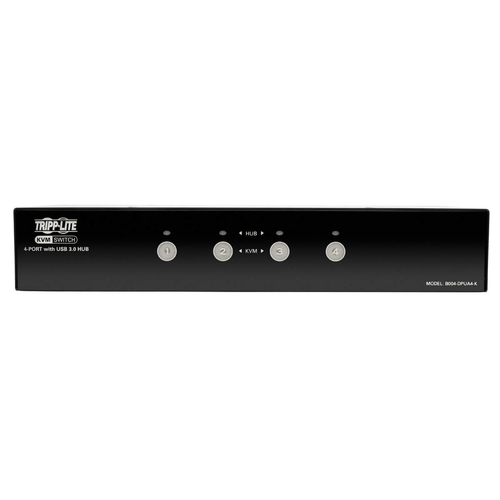

Switch among computers using keyboard hotkeys or front-panel buttons
Monitor's EDID information sent to connected computer when selected
Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity
Supports DisplayPort 1.1

Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
Listen to audio files on one computer while accessing another computer
Supports 2-channel stereo audio

Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing another computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices

Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun

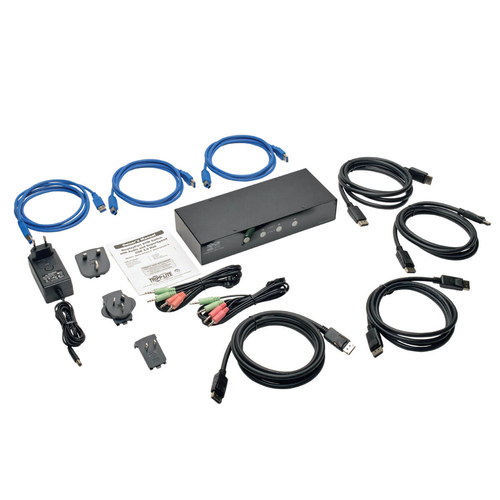

All necessary cables included

ON ORDER

SKU: B004-DPUA4-K

Manufacturer: Eaton Eaton

RRP Price €373.54

Specifications

Ports & interfaces

Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Display connection
Yes

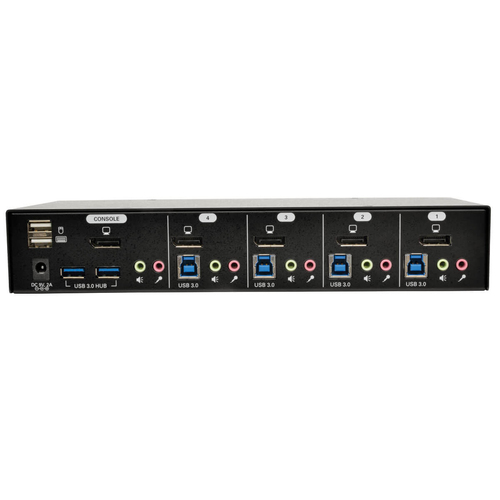

Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB B
Console USB ports quantity
4
USB hub
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
Audio connections
Yes
Headphone outputs
4
Number of microphone inputs
4
DC-in jack
Yes

Performance

Maximum resolution
2560 x 1600 pixels
DDC/DDC2 supported
Yes
Number of users
1 user(s)

Design

Rack mounting
No
Product colour
Black
Cable length
1.8 m
LED indicators
Yes

Display

Built-in display
No

Power

Input voltage
100-240 V
AC input frequency
50 - 60 Hz
Input current
0.8 A
Output voltage
9 V
Output current
2 A

System requirements

Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes

Sustainability

Compliance certificates
RoHS

Weight & dimensions

Width
205.7 mm
Depth
99.1 mm
Height
45.7 mm
Weight
950 g

Packaging data

Package width
157.5 mm
Package depth
269.2 mm
Package height
188 mm
Package weight
2.68 kg

Packaging content

Cables included
Audio (3.5mm), DisplayPort, USB
Manual
Yes
AC adapter included
Yes

Logistics data

Harmonized System (HS) code
8517.62.0020
Master (outer) case width
492.8 mm
Master (outer) case length
551.2 mm
Master (outer) case height
215.9 mm
Master (outer) case gross weight
17 kg
Products per master (outer) case
6 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332188639
Country of origin
China
