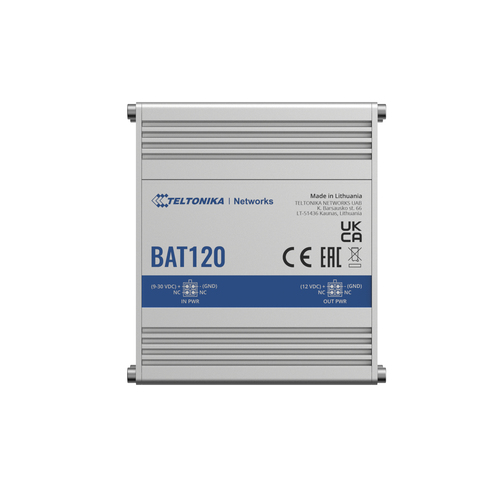

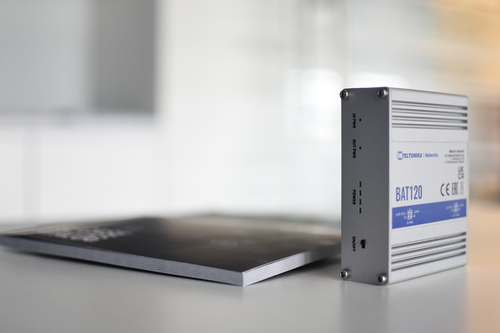

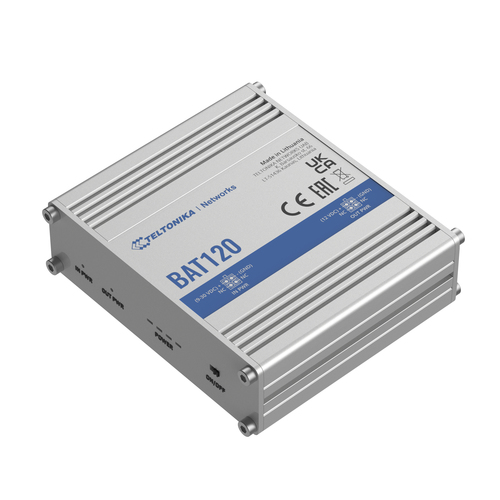

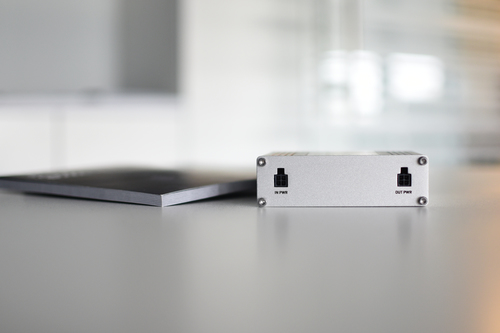

Teltonika BAT120 uninterruptible power supply (UPS) Line-Interactive 22 W

Teltonika BAT120 uninterruptible power supply (UPS) Line-Interactive 22 W

Name: Teltonika BAT120 uninterruptible power supply (UPS) Line-Interactive 22 W
Brand: Teltonika
SKU: BAT120
Price: 164.94 EUR
Availability: OutOfStock

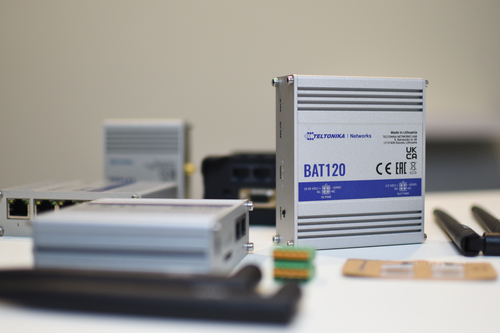

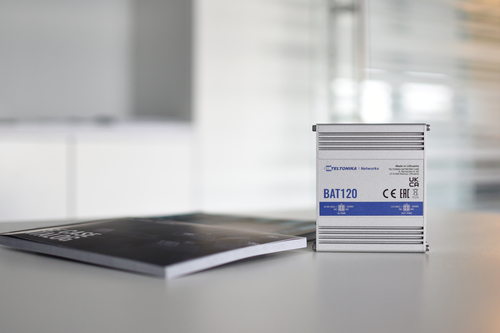

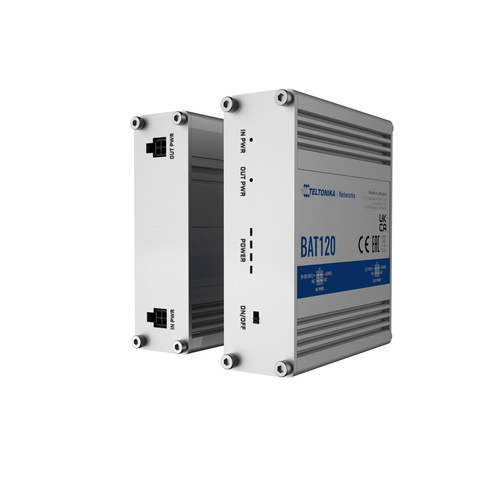

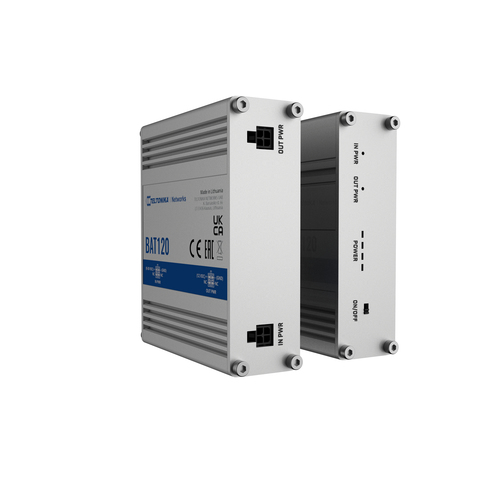

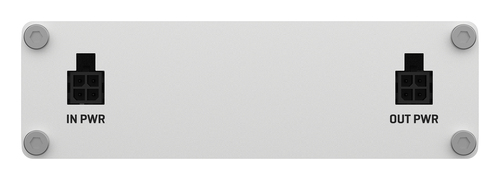

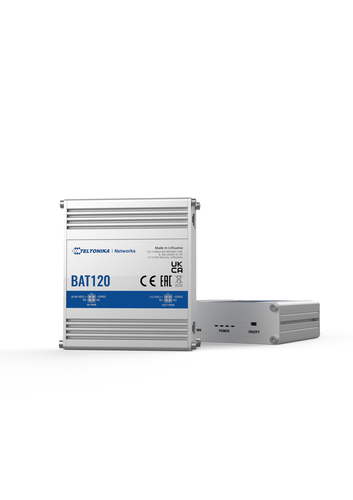

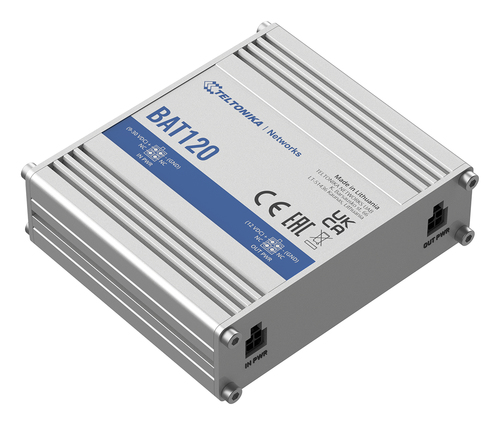

BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery.
Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features.
This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur.

ON ORDER

SKU: BAT120

Manufacturer: Teltonika

RRP Price €164.94

Specifications

Features

UPS topology

Line-Interactive

Output power

22 W

Waveform

Sawtooth

Input operation voltage (min)

9 V

Input operation voltage (max)

30 V

Input frequency

50 Hz

Output operation voltage (min)

9 V

Output operation voltage (max)

30 V

Power protection features

Over current, Over voltage, Reverse polarity

Audible alarm(s)

Yes

Power source type

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

2.3 Ah

Battery voltage

3.7 V

Number of battery cells

Design

Form factor

Compact

Housing material

Aluminium

Product colour

Stainless steel

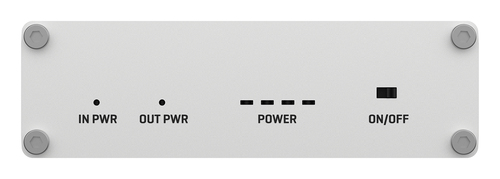

LED indicators

Power, Status

Compatibility

RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Certificates

Certification

CE/RED, UKCA, EAC

Packaging content

Manual

Yes

Weight & dimensions

Width

100 mm

Depth

85 mm

Height

30 mm

Weight

315 g

Description

Manufacturer

Teltonika

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.315 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
