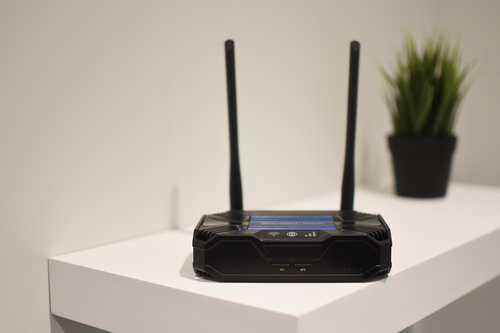

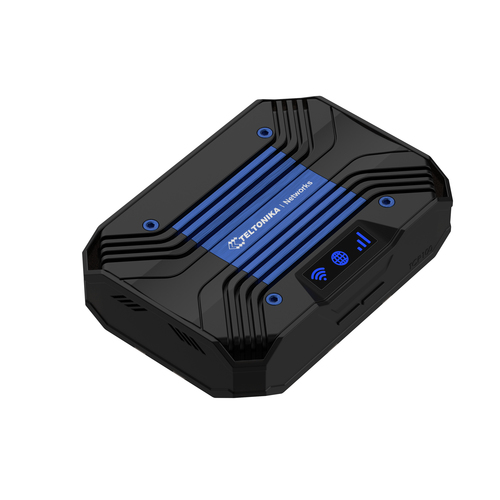

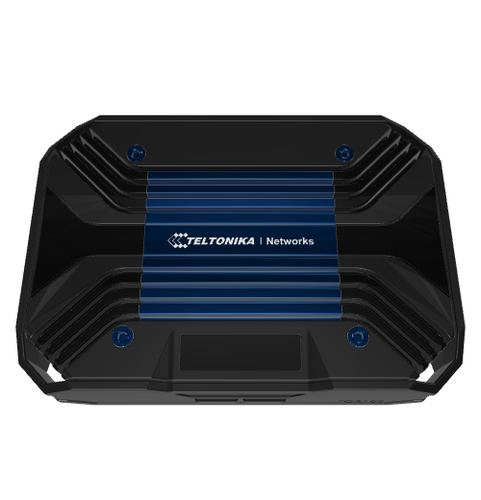

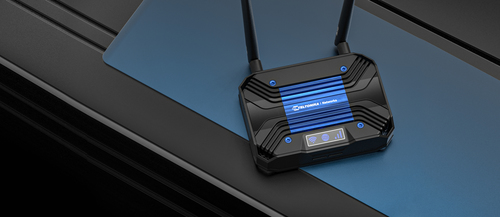

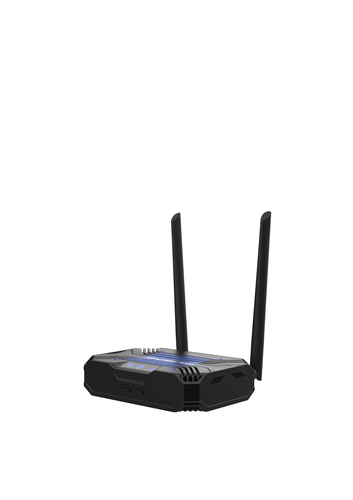

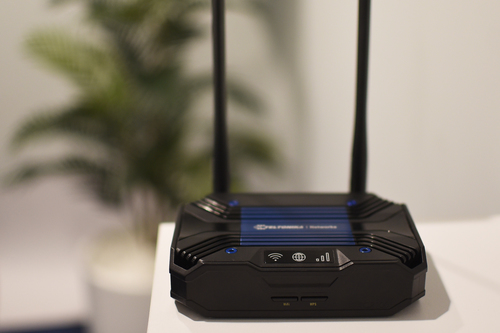

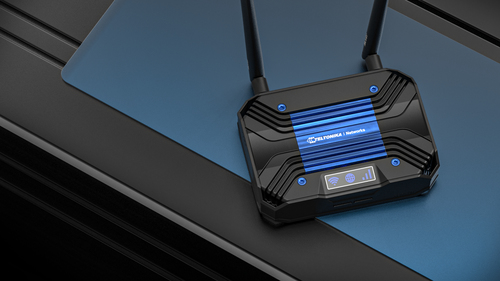

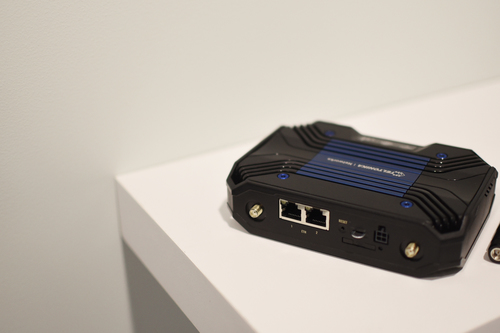

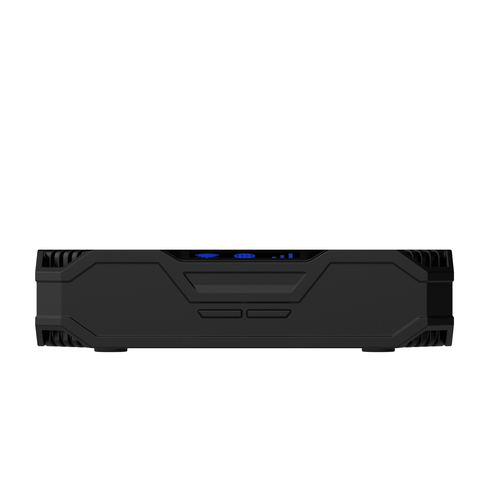

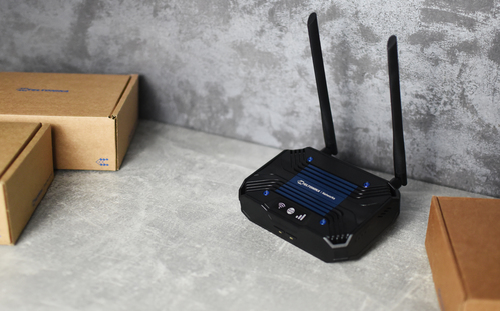

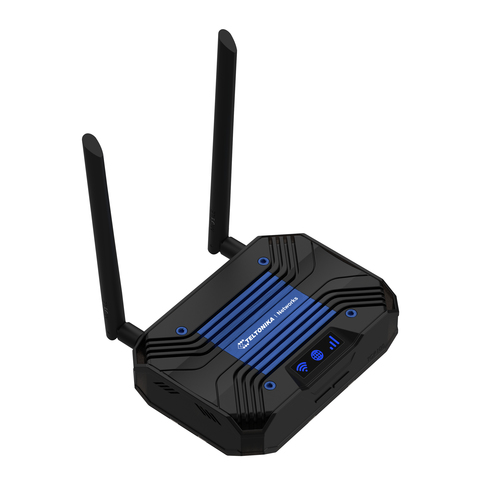

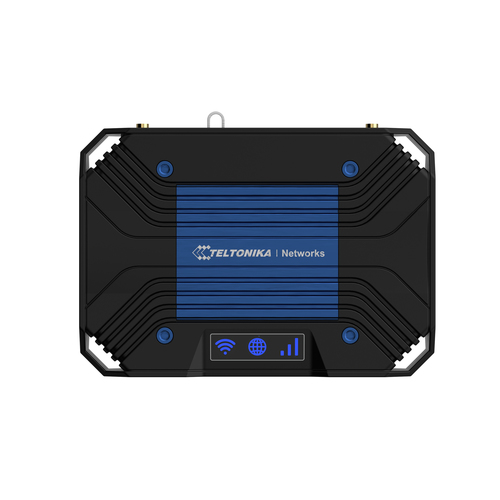

Teltonika TCR100 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Teltonika TCR100 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Name: Teltonika TCR100 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black
Brand: Teltonika
SKU: TCR100000000
Price: 223.72 EUR
Availability: OutOfStock

4G LTE-ADVANCED
LTE CAT6 enables cellular speeds up to 300Mbps with carrier aggregation

WI-FI
Dual-Band with 2.4 GHz & 5.0 GHz frequencies

DURABLE
Rugged housing with heatsink for thermal efficiency

SECURE
Firewall and numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN

RMS
Compatible with our RMS enabling remote access and on-demand VPN services

RUTOS
Powerful OS with intuitive UI based on OpenWrt empowers endless configuration possibilities.

ON ORDER

SKU: TCR100000000

Manufacturer: Teltonika

RRP Price €223.72

Specifications

WAN connection

Ethernet WAN

Yes

DSL WAN

SIM card slot

Yes

3G/4G USB modem compatibility

WAN connection type

RJ-45

Wireless LAN features

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Ethernet LAN

Yes

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.11r, IEEE 802.11s, IEEE 802.3, IEEE 802.3u

Load balancing system

Yes

Mobile network

Mobile network generation

Yes

3G standards

DC-HSDPA, HSUPA, WCDMA

4G standard

LTE

Ports & interfaces

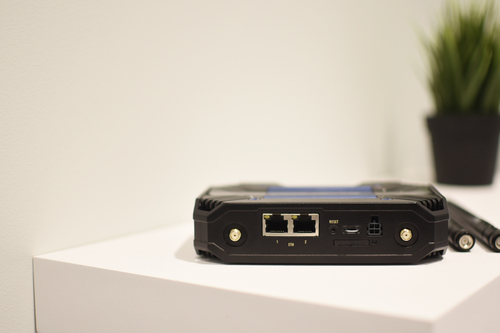

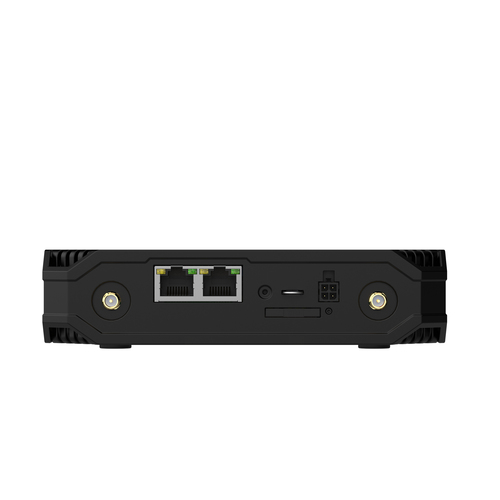

Ethernet LAN (RJ-45) ports

USB port

Management features

Web-based management

Yes

Reset button

Yes

WPS push button

Yes

Security

Security algorithms

AES-CCMP, SNMP, SSH, TKIP, WEP, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-SAE

Firewall

Yes

Protocols

Supported network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP

Design

Product colour

Black

Housing material

Plastic

LED indicators

LAN, Status, WAN, WLAN

Product type

Tabletop router

Packaging content

Cables included

LAN (RJ-45)

AC adapter included

Yes

Antenna included

Yes

Quick start guide

Yes

Antenna

Antenna design

Internal

Antenna connector type

SMA

Antennas quantity

Detachable antenna(s)

Yes

Features

Built-in processor

Yes

Processor manufacturer

Qualcomm

Processor model

Qualcomm Atheros QCA9531

Processor architecture

MIPS 24Kc

Processor frequency

650 MHz

Internal memory

128 MB

Flash memory

16 MB

Operating system installed

RutOS

Power

Power source type

AC input voltage

100 - 240 V

Output voltage

12 V

Output current

1 A

Power consumption (typical)

3.7 W

Power supply

18 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

150 mm

Depth

105 mm

Height

37 mm

Weight

376 g

Packaging data

Package width

173 mm

Package depth

148 mm

Package height

71 mm

Package type

Box

Number of products included

1 pc(s)

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Teltonika

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.376 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
