Digitus M.2 NVMe + M.2 SATA SSD Docking Station with SD Express Card Reader, USB-C™

Digitus M.2 NVMe + M.2 SATA SSD Docking Station with SD Express Card Reader, USB-C™

Name: Digitus M.2 NVMe + M.2 SATA SSD Docking Station with SD Express Card Reader, USB-C™
Brand: Digitus
SKU: DA-71546
Price: 99.01 EUR
Availability: InStock

Manage M.2 NVMe and M.2 SATA SSDs using a USB-C™ connection, incl. integrated SD Express card reader

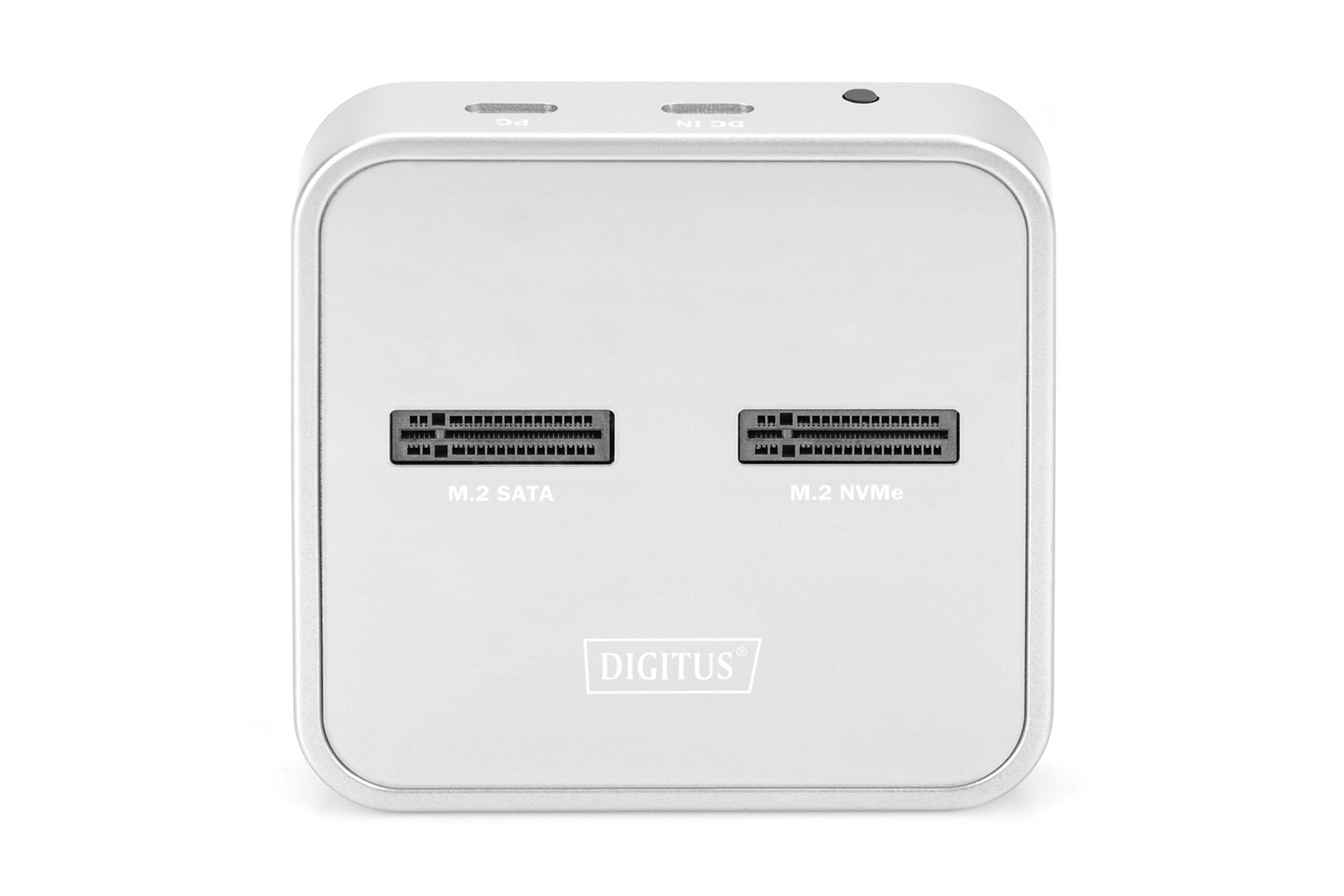

- 1 x M.2 Box for NVMe SSDs (B+M-Key / M-Key)
- 1 x M.2 Box for SATA SSDs (B+M-Key)

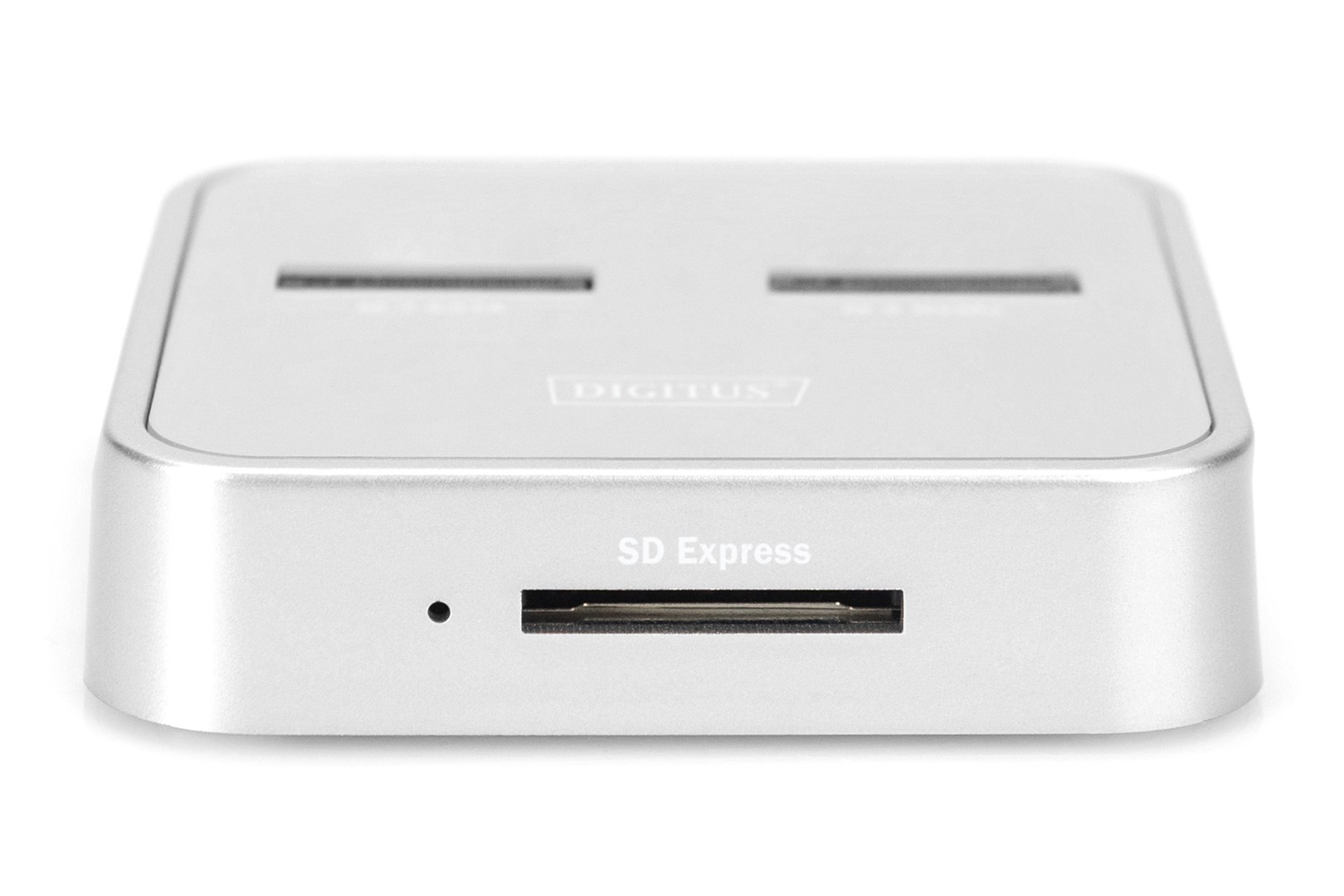

- 1 x SD Express 7.1 memory card reader / 1000 MB/s max.
- High data transfer rate of up to 10 Gbps (U.A.S.P + T.R.I.M support)
- Supports cards NVMe & SATA SSDs up to 4 TB capacity
- Supported formats: 2242, 2260, 2280 & 22110
- Can be used as a storage medium for up to 10 TB in total
- USB-C™ connection: USB 3.2 Gen2
- Ideal storage extension for notebooks, PCs, gaming consoles, TVs, NAS or routers (USB-C™)
- Plug and Play, no driver installation required

The 3-in-1 Docking Station from DIGITUS® can accommodate M.2 SSDs in NVMe or SATA technology; an SD Express 7.1 card reader with the highest data transfer rates is also integrated. Manage M.2 data carriers with up to 4 TB per slot and additionally SD cards up to 2 TB. Supports NVMe SSDs with B+M Key & M-Key and SATA SSDs with B+M-Key, each in the formats 2242, 2260, 2280 & 22110. Easily extend the storage capacity of numerous USB-C™ devices such as PCs, notebooks, TVs, gaming consoles or routers.

8 IN STOCK

SKU: DA-71546

Manufacturer: Digitus Digitus

RRP Price €99.01

Specifications

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Microphone in

Network

Ethernet LAN

Performance

Card reader integrated

Yes

Compatible memory cards

Maximum memory card size

2 TB

Data transfer rate

10 Gbit/s

Hot-Plug support

Yes

Product colour

Silver

LED indicators

Yes

Plug and Play

Yes

UASP support

Yes

Housing material

Acrylonitrile butadiene styrene (ABS)

Country of origin

China

Power

Power source type

USB

Power connector

USB Type-C

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

0.6 A

Output voltage

5 V

Output current

3 A

Power plug type

Type C

Software

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP

Mac operating systems supported

Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur

Weight & dimensions

Width

79 mm

Depth

77 mm

Height

18 mm

Weight

146 g

Packaging data

Quantity per pack

1 pc(s)

Package width

137 mm

Package depth

126 mm

Package height

57 mm

Package weight

405 g

Packaging content

Cables included

USB Type-C, USB Type-C to USB Type-A

AC adapter included

Yes

Quick start guide

Yes

Logistics data

Harmonized System (HS) code

84733020

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

0.146 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
