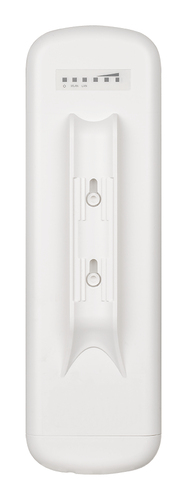

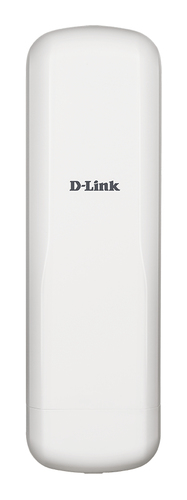

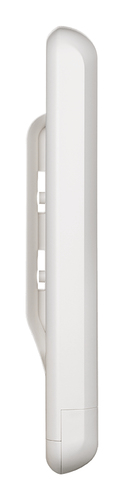

D-Link 5km Long Range Wireless AC Bridge

Highlights
The DAP-3711 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.

TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3711 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3711 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.

Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DAP-3711 strikes the balance just right. The smooth case in crisp white makes for a low-key form that can effortlessly fit any outdoor setting without drawing attention.

Being as functional as it is well-formed, it champions an IP66 rating, fighting dust and repelling water, all while maintaining its unassuming looks.

Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3711 features state-of-the-art hardware, including a high-gain 15 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 5 km away.

Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.

ON ORDER

SKU: DAP-3711

Manufacturer: D-Link D-Link

RRP Price €223.54

Specifications

Data transmission

Maximum data transfer rate
867 Mbit/s
Maximum transfer distance
5000 m

Antenna

Antenna design
Internal
Antenna gain level (max)
15 dBi

Wireless LAN features

Wi-Fi
Yes
Wi-Fi band
Single-band (5 GHz)
WLAN data transfer rate (max)
867 Mbit/s
Frequency band
5.180 - 5.825 GHz
Signal strength
27 dBm
Channels quantity
2 channels

Network

Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Cabling technology
10/100/1000Base-T(X)
Wireless Distribution System (WDS) bridge
Yes

Ports & interfaces

Connectivity technology
Wired & Wireless
Ethernet LAN (RJ-45) ports
2

Security

Security algorithms
128-bit AES
MAC address filtering
Yes

Management features

Web-based management
Yes

Features

Product type
Network bridge
Material
Acrylonitrile butadiene styrene (ABS)
Mounting type
Pole
Product colour
White
LED indicators
LAN, Power, Signal strength, WLAN
Reset button
Yes
International Protection (IP) code
IP66
Surge protection
Yes

Power

Power source type
PoE
Power consumption (typical)
15 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
24 V

Operational conditions

Operating temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
0 - 90%

Certificates

Certification
CE, FCC

Weight & dimensions

Width
288 mm
Depth
45 mm
Height
88 mm
Weight
600 g

Packaging data

Quantity per pack
1 pc(s)

Logistics data

Harmonized System (HS) code
85176990
