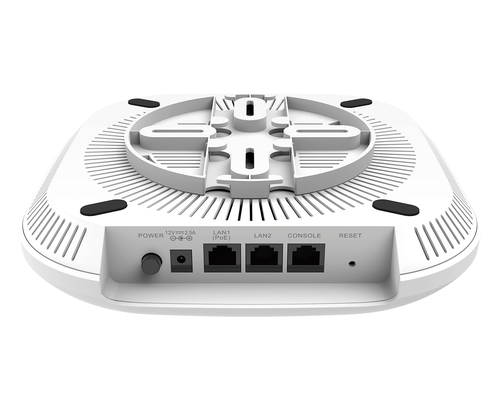

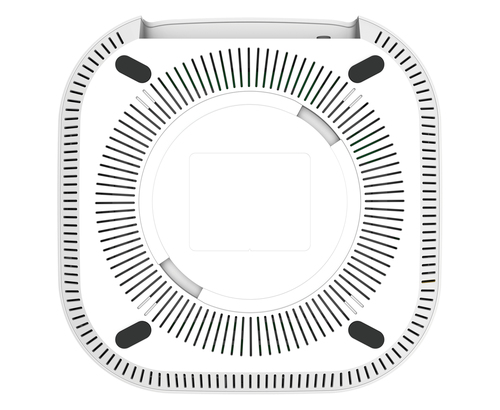

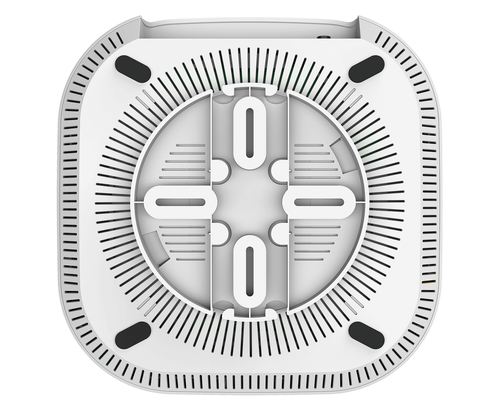

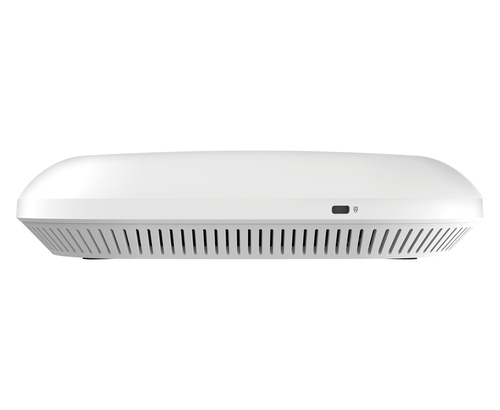

D-Link Wireless AC2600 Wave2 Nuclias Access Point

Cloud Networking, Refreshed
The DBA-2820P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible.

Built for Heavy Workloads
The DBA-2820P is a workhorse solution built to handle bandwidth-intensive applications involving numerous clients. It delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 2.6Gbps, and 4 x 4 MU-MIMO (four spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2820P’s channel selection, transmission power, and maximum number of client connections.

Advanced Management & Security
The Nuclias Cloud interface lets admins easily manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities.

Full PoE Support
The DBA-2820P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.

ON ORDER

SKU: DBA-2820P

Manufacturer: D-Link D-Link

RRP Price €583.49

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
2600 Mbit/s
Maximum data transfer rate (2.4 GHz)
800 Mbit/s
Maximum data transfer rate (5 GHz)
1733 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
MIMO
Yes
MIMO type
Multi User MIMO
Flow control support
Yes
Transmitting power
26 dBmW

Security

Security algorithms
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Number of SSID supported
16

Protocols

DHCP server
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes

Power

Power over Ethernet (PoE)
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Output voltage
12 V
Power consumption (max)
21.65 W
Power supply
19.2 W

Design

Placement
Ceiling, Table, Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
On/off switch
Yes
Reset button
Yes
LED indicators
Yes

Antenna

Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
4 dBi

Technical details

Shipping (inner) case length
41.9 cm
Shipping (inner) case width
31.2 cm
Shipping (inner) case height
32.8 cm
Shipping (inner) case net weight
6.92 kg
Products per shipping (inner) case
5 pc(s)
Pallet gross weight (air)
206.4 kg
Master (outer) cases per pallet (air)
24 pc(s)
Products per pallet (air)
120 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
144.7 cm
Pallet gross weight (sea)
253.7 kg
Master (outer) cases per pallet (sea)
30 pc(s)
Products per pallet (sea)
150 pc(s)
Pallet height (sea)
177.5 cm
Shipping (inner) case gross weight
7.79 kg

Certificates

Certification
CE B, FCC B, UL, IC B

Weight & dimensions

Width
224.5 mm
Depth
223.8 mm
Height
50 mm
Weight
810 g

Packaging data

Package width
294 mm
Package depth
291 mm
Package height
94 mm
Package weight
1.39 kg

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Storage relative humidity (H-H)
5 - 95%

Logistics data

Harmonized System (HS) code
85176990
