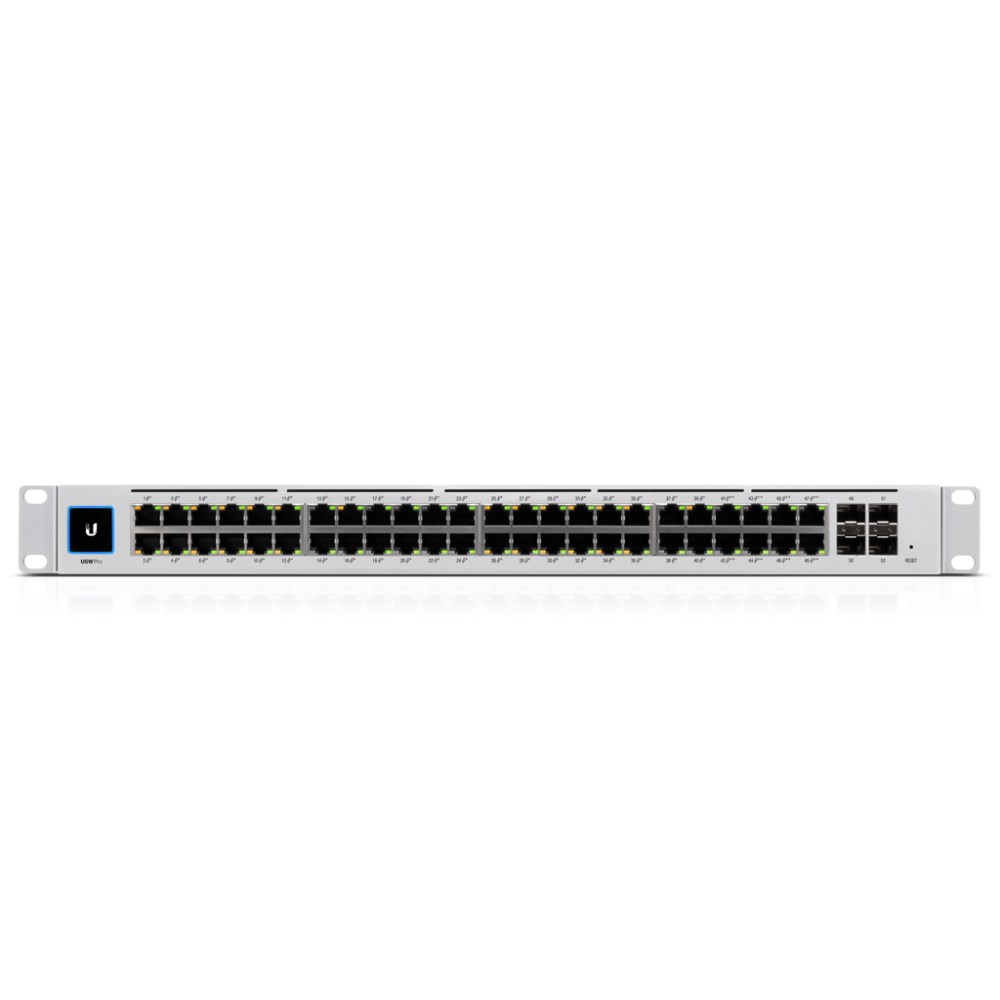

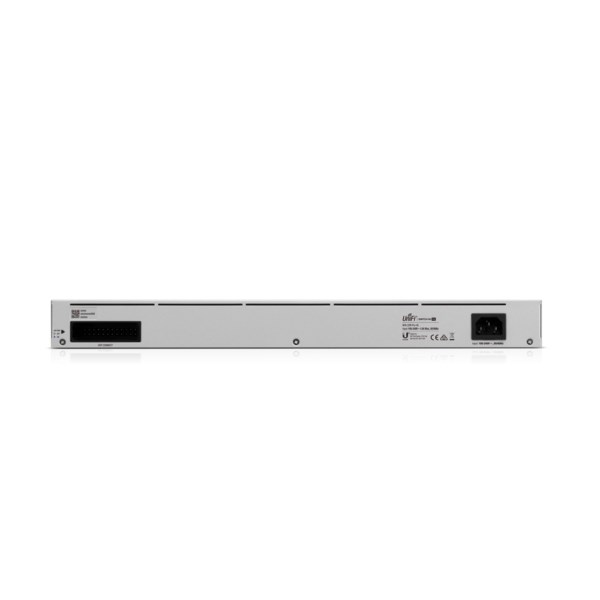

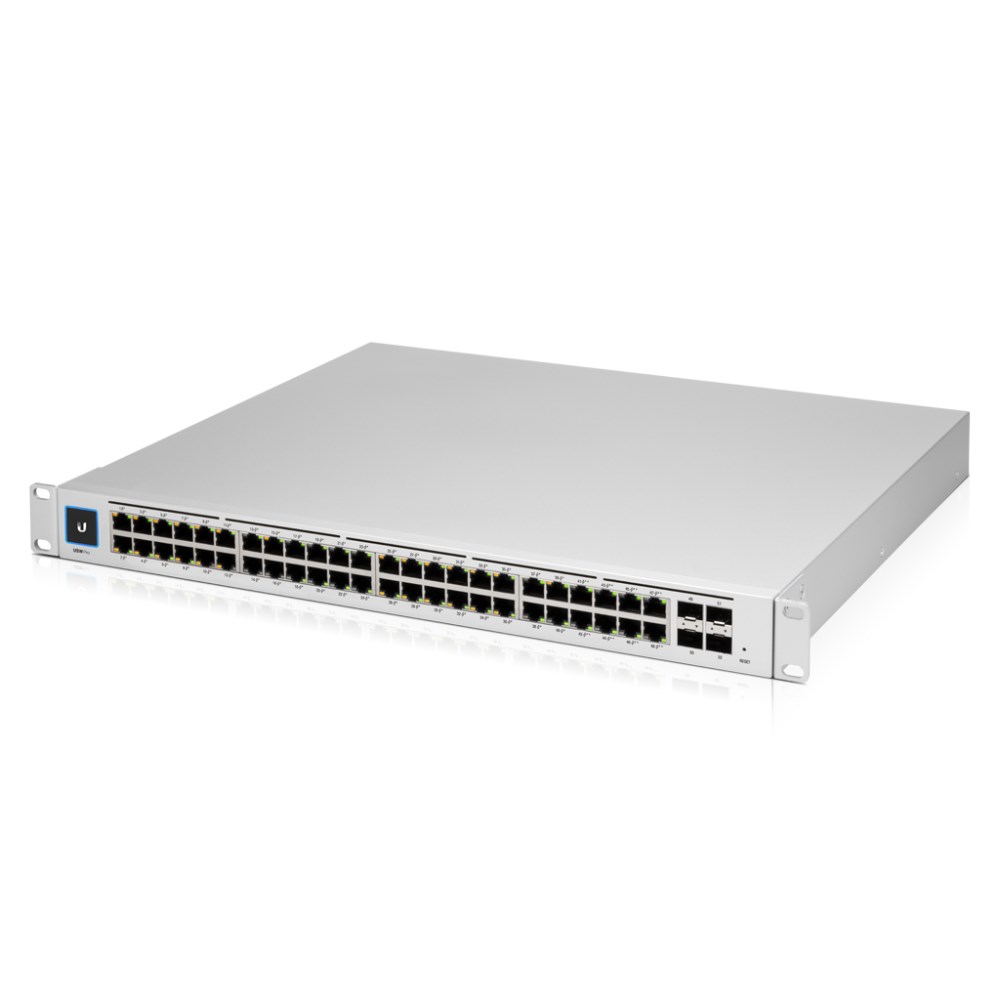

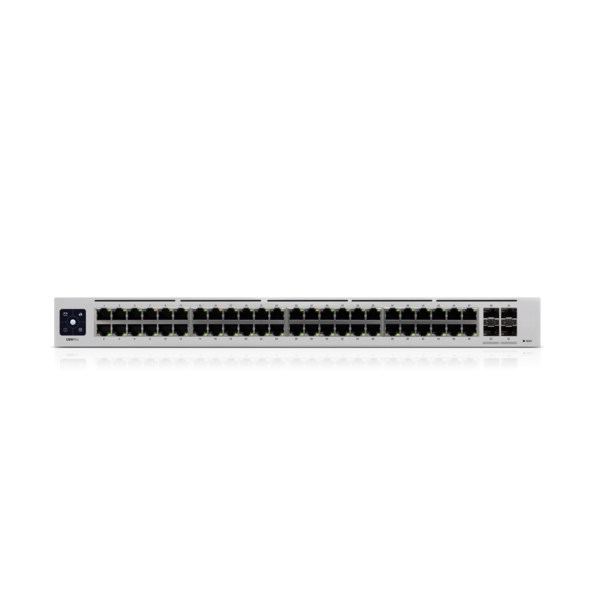

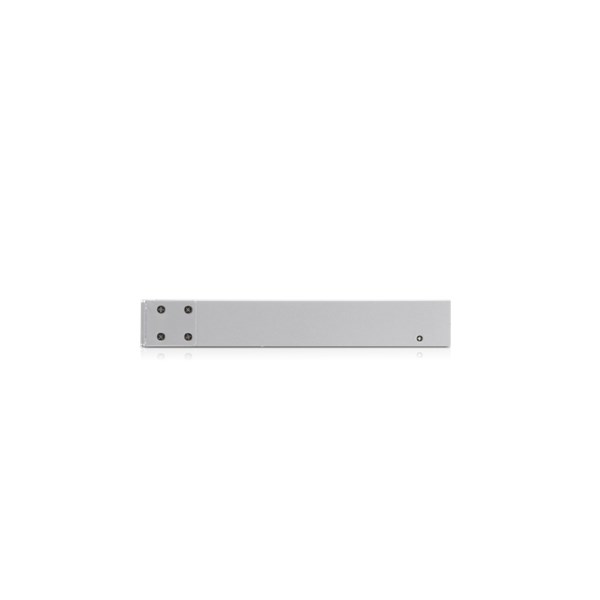

Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver

Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver

Name: Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver
Brand: Ubiquiti
SKU: USW-PRO-48
Price: 694.71 EUR
Availability: InStock

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

6 IN STOCK

SKU: USW-PRO-48

Manufacturer: Ubiquiti

RRP Price €694.71

Specifications

Management features

Switch type

Managed

Switch layer

L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

Network

Networking standards

IEEE 802.1x

10G support

Yes

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Data transmission

Switching capacity

176 Gbit/s

Forwarding rate

130.944 Mpps

Security

Authentication type

IEEE 802.1x, RADIUS

Design

Rack mounting

Yes

Form factor

Product colour

Silver

LED indicators

Activity, Link, Speed

Backlight display

Yes

Power

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

DC input voltage

11.5 V

Input current

5.22 A

Power consumption (max)

60 W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

442.4 mm

Depth

285.4 mm

Height

43.7 mm

Weight

4 kg

Packaging content

User guide

Yes

Certificates

Certification

CE, FCC, IC ETSI300-019-1.4

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

4 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
