Digitus CAT 7A S/FTP installation cable, 1000 m, Simplex, B2ca

Digitus CAT 7A S/FTP installation cable, 1000 m, Simplex, B2ca

Name: Digitus CAT 7A S/FTP installation cable, 1000 m, Simplex, B2ca
Brand: Digitus
SKU: DK-1745-A-VH-10
Price: 1084.35 EUR
Availability: OutOfStock

DIGITUS® CAT 7A S/FTP installation cable 4x2x AWG22/1 up to 1500 MHz. The halogen-free cable sheath complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class B2ca. Complies with ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

- 10 GBit Ethernet
- 1500 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
- BauPVO category B2ca

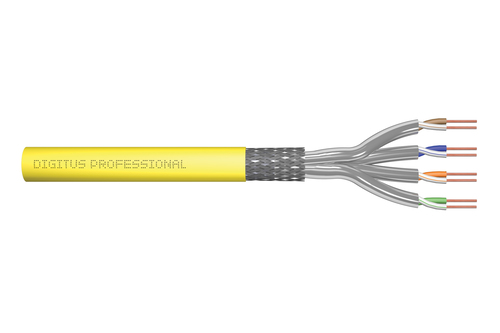

The DIGITUS® CAT 7A S/FTP installation cable features the following cable structure 4x2x AWG22/1 and achieves a transmission frequency of up to 1500 MHz. The halogen-free cable sheath complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class B2ca. The cable is suitable for building cabling in secondary and tertiary areas. Complies with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

ON ORDER

SKU: DK-1745-A-VH-10

Manufacturer: Digitus Digitus

RRP Price €1,084.35

Specifications

Features

Product colour

Yellow

Cable length

1000 m

Cable standard

Cat7a

Cable shielding

S/FTP (S-STP)

Connector 1

Connector 2

Connector 1 gender

Connector 2 gender

Jacket material

Low smoke zero halogen (LSZH)

Cable shape

Round

Conductor type

Solid

AWG wire size

22/1

Frequency

1500 MHz

Country of origin

China

Certificates

Certification

CPR class B2ca

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

550 mm

Package depth

550 mm

Package weight

64.5 kg

Package volume

133100 cm³

Logistics data

Harmonized System (HS) code

84733080

UK Trade Tariff code

85444920

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

64.51 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
