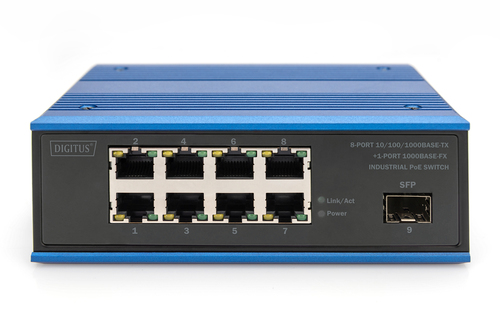

Digitus 8 port Gigabit Ethernet network PoE switch, industrial, unmanaged, 1 SFP uplink switch

Digitus 8 port Gigabit Ethernet network PoE switch, industrial, unmanaged, 1 SFP uplink switch

Name: Digitus 8 port Gigabit Ethernet network PoE switch, industrial, unmanaged, 1 SFP uplink switch
Brand: Digitus
SKU: DN-651137
Price: 267.70 EUR
Availability: OutOfStock

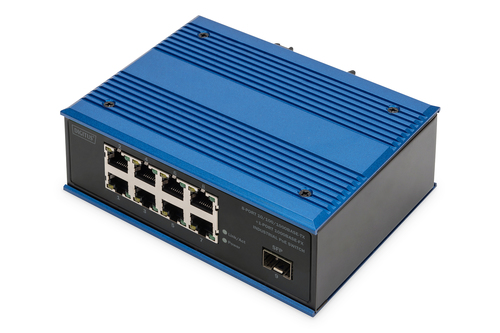

The DN-651137 is an 8+1 port PoE Gigabit Ethernet switch (IEEE 802.3 af/at) suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.

- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards

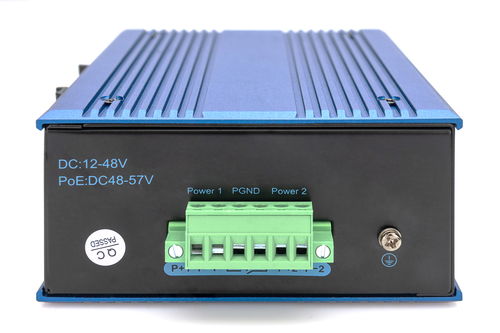

- Operating voltage: DC 48-57V
- Lightning surge protection (power): 5000A(8/20μs)

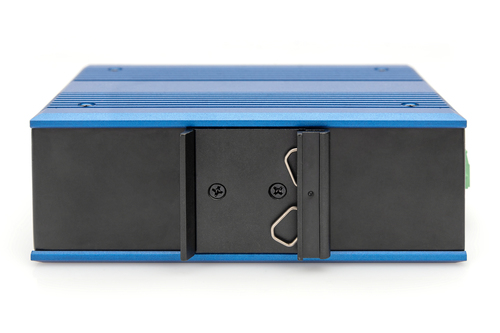

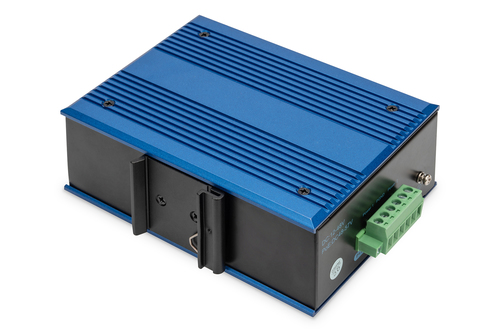

DN-651137 is an industrial Gigabit Ethernet PoE switch with 8 port 10/100/1000 Mbps RJ45 +1000 Mbps SX . The industrial switch has the operating temperature of -40℃ ~ 80℃, has been ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651137 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.

ON ORDER

SKU: DN-651137

Manufacturer: Digitus Digitus

RRP Price €267.70

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP module slots quantity

Uplink ports quantity

Power connector

Terminal block (6-pin)

Network

Networking standards

IEEE 802.3af

10G support

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-TX, 100BASE-FX

Full duplex

Yes

Half duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Optical fiber

Fiber ethernet cabling technology

1000BASE-FX

Data transmission

Switching capacity

1 Gbit/s

Forwarding rate

15 Mpps

MAC address table

8000 entries

Packet buffer memory

2 MB

Design

Rack mounting

Stackable

Product colour

Black, Blue

Housing material

Aluminium

LED indicators

Yes

International Protection (IP) code

IP40

DIN rail mounting

Yes

Vandal-proof

Suitable for outdoor use

Power

Power source

DC input voltage

48 - 57 V

Power consumption (typical)

3 W

Power over Ethernet (PoE)

Yes

Total Power over Ethernet (PoE) budget

30 W

Other features

Bandwidth

20 Gbit/s

Ethernet interface type

Gigabit Ethernet

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

143.7 mm

Depth

103 mm

Height

44.2 mm

Weight

560 g

Packaging content

Manual

Yes

Packaging data

Package width

158 mm

Package depth

66 mm

Package height

213 mm

Package volume

2221.16 cm³

Package weight

917.857 g

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.56 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Trendnet TI-PGLC80 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black Other

TRENDnet’s 8-Port Industrial Gigabit PoE+ DIN-Rail Mini Switch, model TI-PGLC80, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features eight copper gigabit PoE+ ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

€123.80

Honeywell 871-238-012 handheld mobile computer accessory Adapter Other

Interfaces with USB host connector on Single Dock.

€165.68

Trendnet TPE-318GI PoE adapter 10 Gigabit Ethernet Other

TRENDnet’s 10G PoE++ Injector, model TPE-318GI, combines electrical power with a 10GBASE-T network connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over Cat6A or better cabling. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

€58.41

Tripp Lite B127A-110-BH HDMI over Cat6 Receiver with Repeater, 4K 60Hz, HDR, 4:4:4, IR Transceiver, PoC, HDCP 2.2, 230 ft., TAA Other

HDMI Extender Transceiver Unit Ideal for Digital Signage in Schools and RestaurantsThis 4K IR transceiver is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. Combines with HDMI Extender Kit to Add More DistanceThe B127A-110-BH works with B127A-111-BHTH extender kit (sold separately) to further extend a 4K audio/video signal up to 230 feet. It connects between the transmitter and transceiver from the extender kit with user-supplied Cat6 cabling. IR remote control lets you operate the source from the display end of the installation.Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 ColorThe B127A-110-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This transceiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.Create a Daisy Chain to Achieve More DistanceThis transceiver combines with the B127A-111-BHTH extender kit (sold separately) and additional B127A-110-BH transceivers to form daisy-chain installations up to 920 feet from the transmitter. Up to four total transceivers can be chained together, each capable of extending a 4K/60 Hz signal up to 230 feet per unit. In addition to the extender kit, this transceiver is also compatible with B127A-1A1-BCBH, B127A-1A1-BDBH and B127A-1A1-BHBH and can be used to replace any receivers in the installation as well.Add a Signal Booster to Achieve, Yes, Even More DistanceThe transceiver is also compatible with B127A-010-H signal booster (sold separately), which allows the signal to be boosted up to 400 feet total between the transmitter and transceiver. When used in a daisy-chain installation, this brings the total extension distance up to 1,090 ft. Note: B127A-010-H will only work when used in the first link of the daisy-chain installation.Built-In PoC Technology Lets You Avoid Bulky External Power BricksPower over Cable (PoC) technology powers the receiver at the end of the chain over Cat6 cable. LEDs on both the transmitter and transceiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transceiver where needed without worrying about finding a nearby AC outlet. Power is also equally distributed to any additional transceivers within a daisy-chain installation.Plug-and-Play Operation for Quick Setup and Immediate UseThe transceiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the transceiver to a transmitter and any additional transceiver with user-supplied Cat6 patch cable (such as N202-Series). Connect to a 4K display with a user-supplied HDMI cable (such as P568- or P569-Series). TAA-Compliant for GSA Schedule PurchasesThe B127A-110-BH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

€87.73

Trendnet TI-PF11SFP network media converter 2000 Mbit/s 0.56 nm Black Other

TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.Industrial ApplicationsNetworks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.PoE+ OutputConverts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.Extreme EnvironmentsHardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.Network Ports1 x Gigabit PoE+ Ethernet port and 1 x SFP slotDIN-Rail/Wall MountsIP30 rated metal enclosure with included DIN-rail and wall mount hardwareSwitching Capacity2Gbps switching capacityRedundant PowerDual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)Jumbo FrameSends larger packets, or Jumbo Frames (up to 9KB), for increased performanceExtreme TemperaturesHardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)Electromagnetic ComplianceComplies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standardsCertificationsRated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)Shock and Vibration ResistantRated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)Grounding PointGrounding point protects equipment from external electrical surges

€123.47

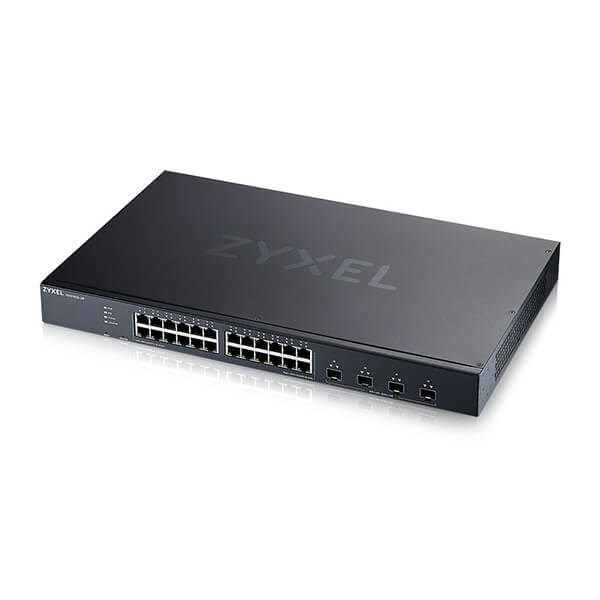

Zyxel XGS1935-28-EU0101F network switch Managed L2+/L3 Gigabit Ethernet (10/100/1000) 1U Black Other

The most affordable choice for 10G migrationThe XGS1930 series, a new 10G uplink smart managed switch, comes with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.Built for convenienceThis smart-looking switch features an intuitive design that simplifies daily network management for SMBs.Manage it your way!The XGS1930 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.Don’t overspend to upgrade your wired networkWith Gigabit connectivity plus four 10G uplinks, the XGS1930 series is ideal for those seeking to upgrade to an easier-to-manage network—and at an affordable price.

€325.56

Trendnet TEG-10GECSFP network card Internal Fiber 10000 Mbit/s Other

TRENDnet’s 10 Gigabit PCIe SFP+ Network Adapter, model TEG-10GECSFP, converts a free PCI Express slot into a 10 Gigabit SFP+ slot. Advanced features include jumbo frame and VLAN tagging support. The included standard and low profile brackets are compatible with Windows® and Linux® desktop computer designs.Provides one SFP+ slot for high speed 10 Gigabit Ethernet connectivitySends larger packets, or jumbo frames (up to 16 KB), for increased performanceSupports most installations with included standard and low-profile bracketsLED indicator conveys status activity

€67.36

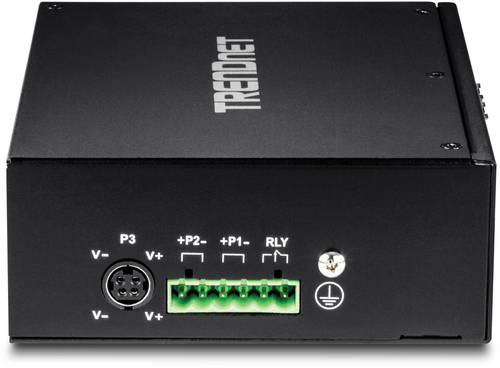

Trendnet TI-PG102 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black Other

TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.PoE PowerA 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power. Fault ToleranceFeatures dual redundant power inputs with output alarm relay. Industrial Hardened DesignEquipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).

€291.81

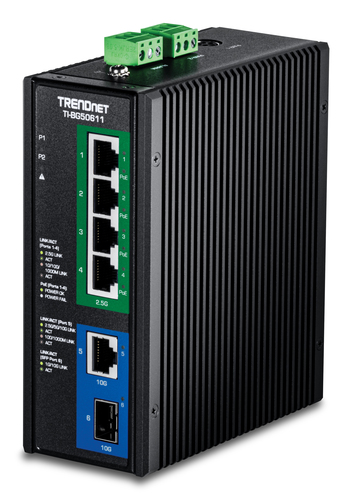

Trendnet 6-Port Industrial 2.5G PoE++ Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black Other

TRENDnet's 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports, model TI-BG50611, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial multi-gigabit PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features four Ethernet 2.5G PoE++ ports, a 10G Ethernet port, and a 10G SFP+ port for longdistance fiber networking applications.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Multi-Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. With PoE technology inside this industrial multigigabit PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

€269.67

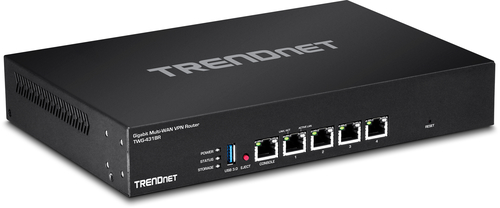

Trendnet TWG-431BR wired router Black Other
