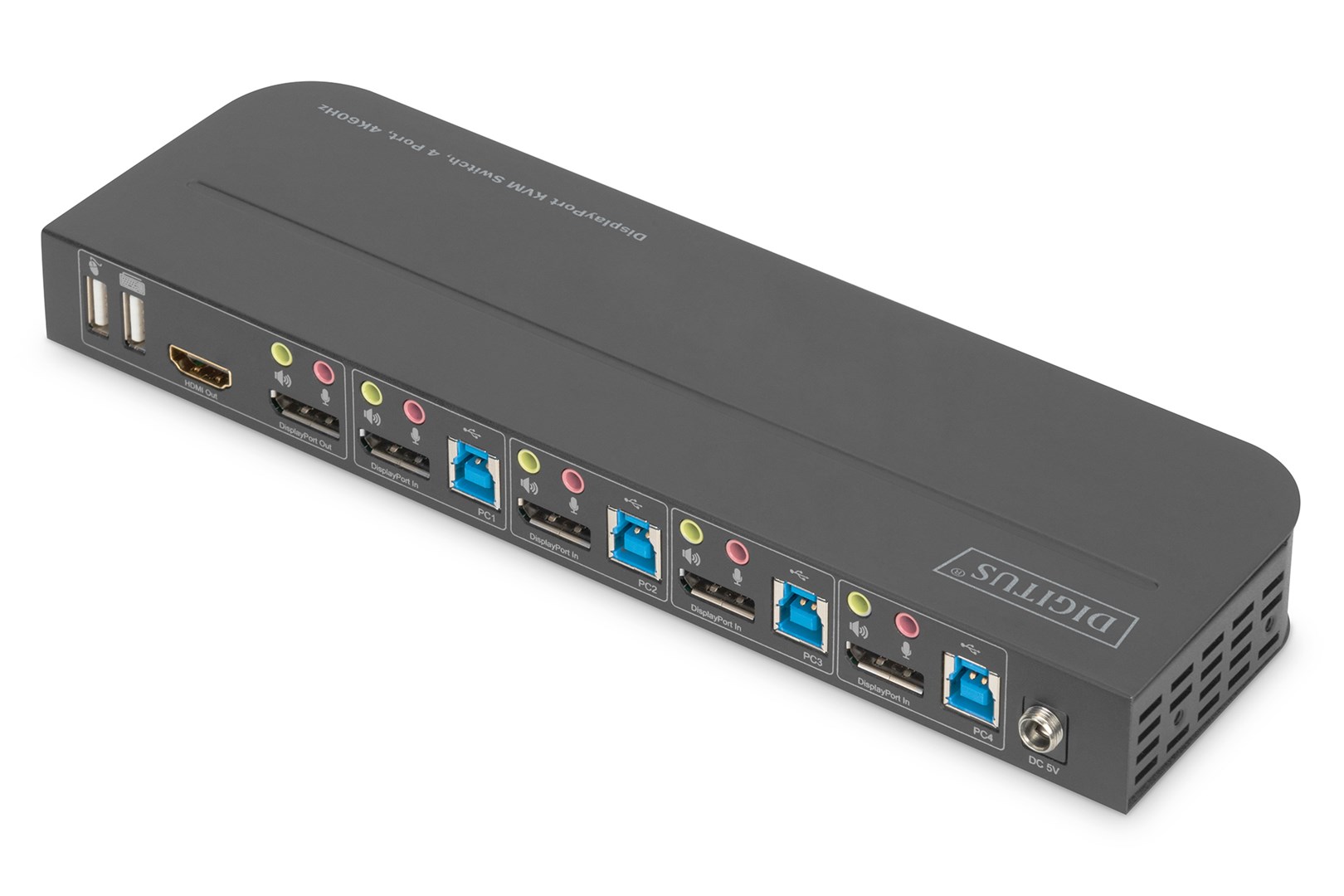

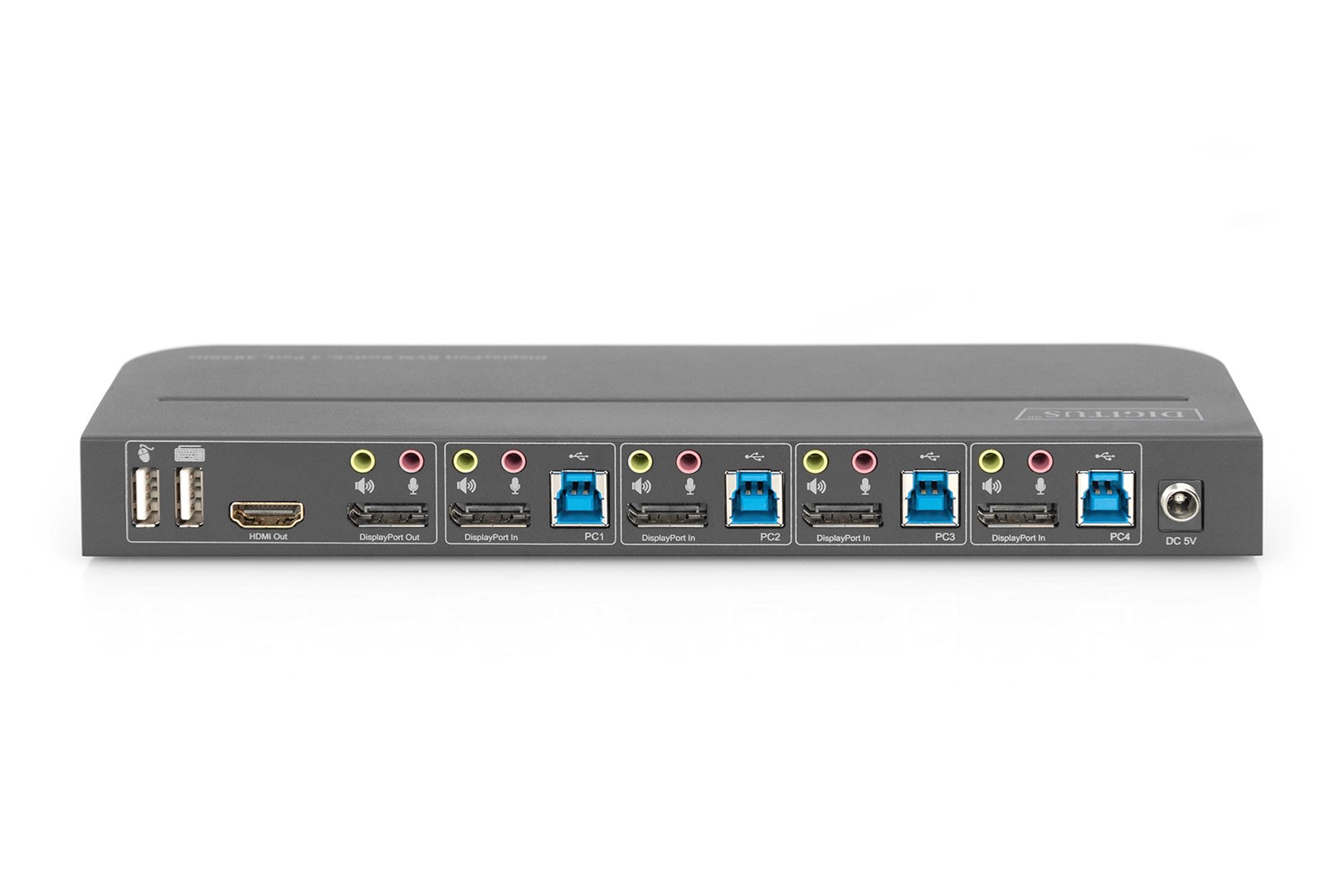

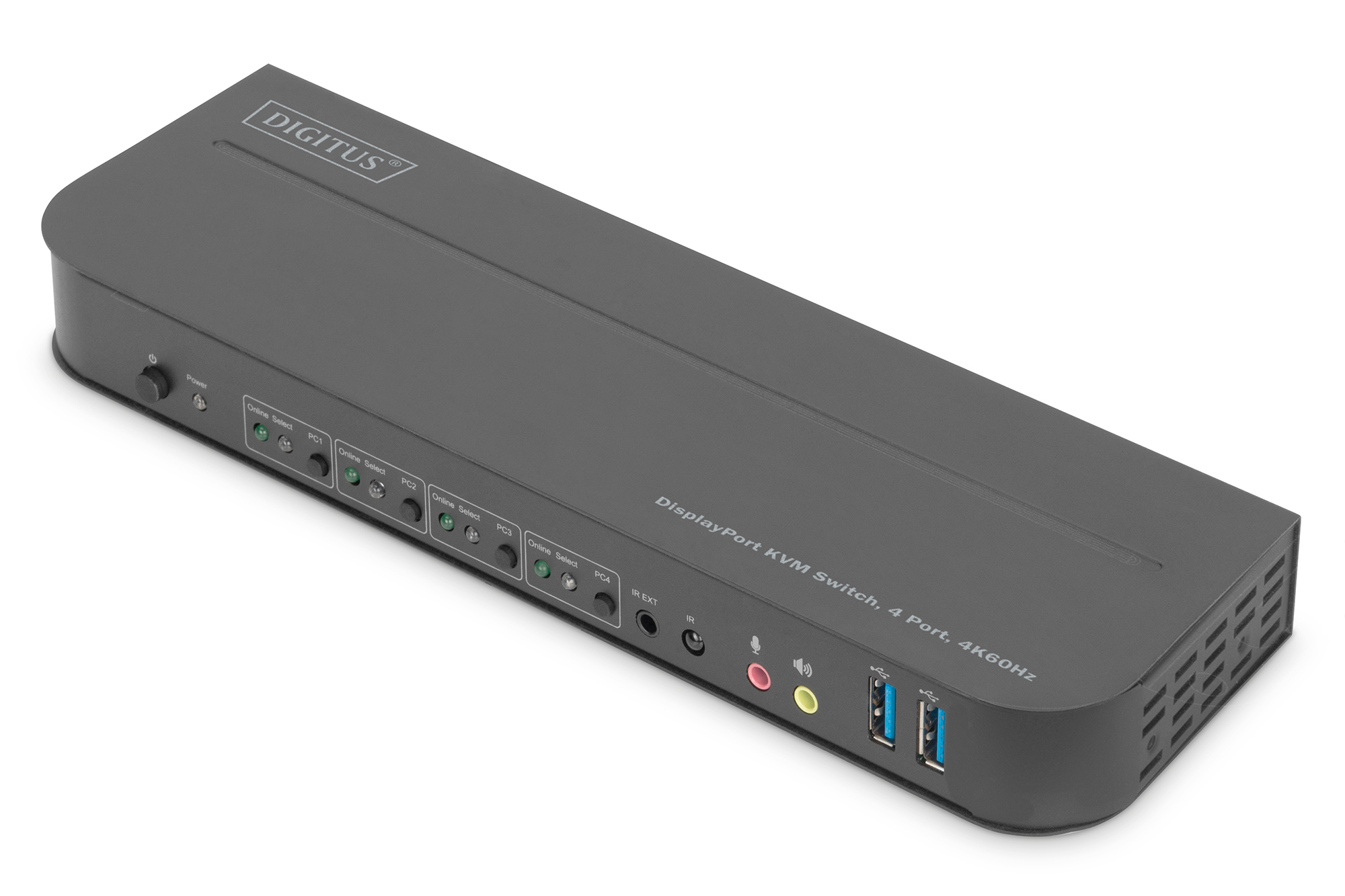

Digitus KVM Switch, 4-Port, 4K60Hz, 4 x DP in, 1 x DP/HDMI out

Operate 4 PCs with one USB keyboard and mouse – switch between four computers by pressing a button or with the remote control

- Use a monitor, a mouse and a keyboard to operate four computers
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker
- Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
- External receiver for signals from remote control included
- Compatible with HDMI 2.0 / HDCP 2.2 / DisplayPort 1.2 / HDR / FreeSync

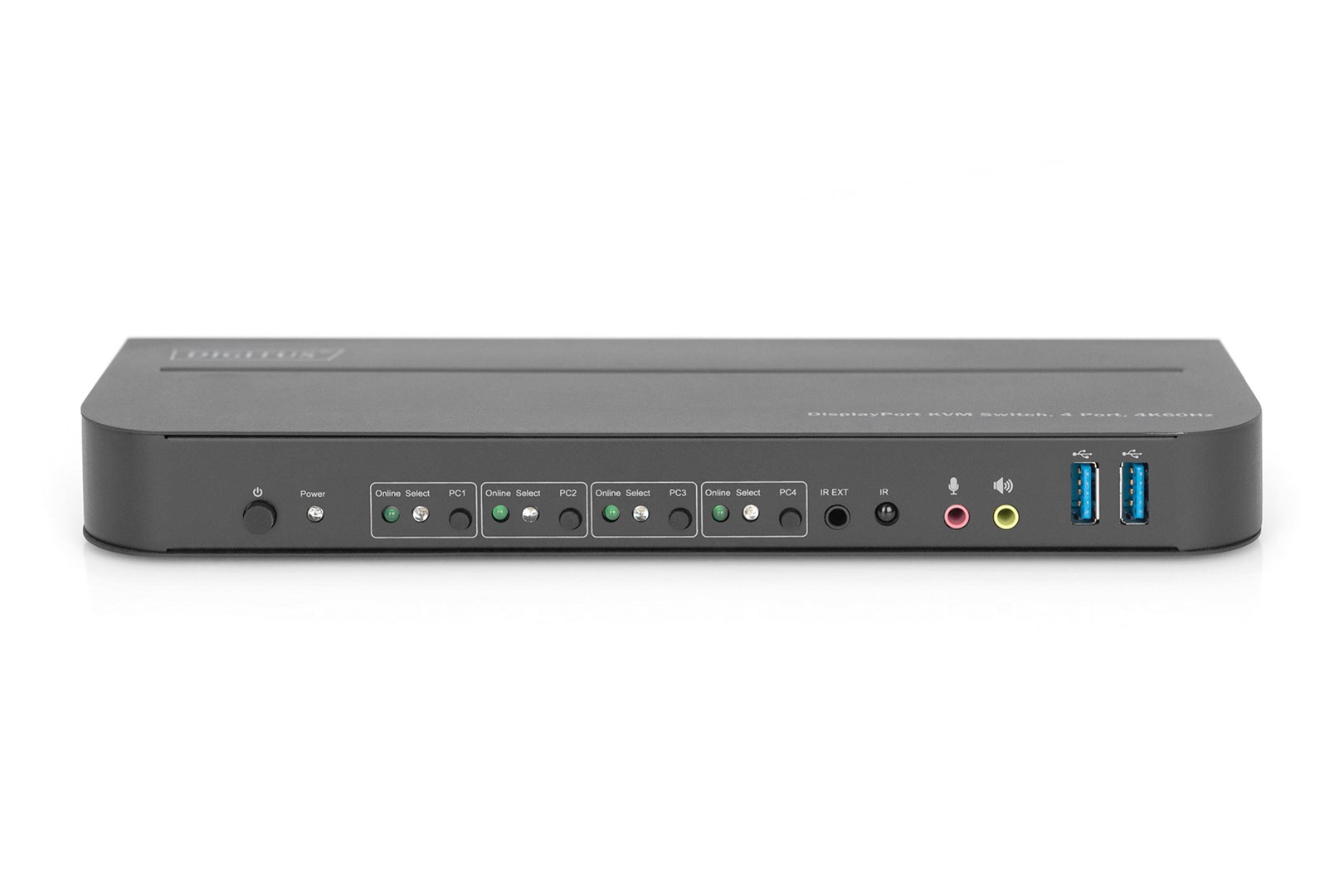

- LED status and functional displays on the front side
- Wall installation possible
- Plug and Play - no driver installation required

With the DIGITUS® 4-Port KVM Switch, you can operate four 4k-compatible PCs using a single USB keyboard and mouse. By pressing a button or using the remote control included in delivery, you can switch comfortably between the PCs, sparing you the trouble of replugging all cables. Output to a monitor occurs either via the integrated HDMI® or the DisplayPort™ output. You can also switch between the audio signals for the microphone and speaker. In addition, two USB 3.0 ports are included on the front side for use with other peripheral devices like USB sticks or external hard drives on all PCs. If you place the KVM switch in an inaccessible location, you can use the IR receiver and connection cable included in delivery even if the KVM switch itself is not within the range of the remote control. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing and the option of wall mounting.

14 IN STOCK

SKU: DS-12890

Manufacturer: Digitus Digitus

RRP Price €182.19

Specifications

Ports & interfaces

Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI/DisplayPort
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
5
DisplayPort version
1.2
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB B
USB 2.0 Type-A hub ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Video bandwidth
60 Hz
HDCP
Yes
Plug and Play
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Display switch button
Yes
Push button
Yes

Display

Built-in display
No

Power

Input voltage
100 - 240, 5 V
AC input frequency
50 - 60 Hz
Input current
0.6 A
Output voltage
5 V
Output current
3 A
Power consumption (typical)
11.75 W
External power adapter
Yes

System requirements

Windows operating systems supported
Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Server operating systems supported
Windows 2000 Server

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
75 mm
Depth
243 mm
Height
26 mm
Weight
505.4 g

Packaging data

Package width
230 mm
Package depth
180 mm
Package volume
2691 cm³
Package weight
1.33 kg

Other features

Ports quantity
8

Logistics data

Harmonized System (HS) code
85176200
UK Trade Tariff code
84718000
Country of origin
China

Accessories

License
