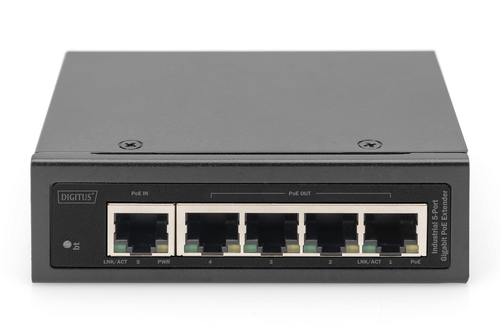

Digitus Industrial 5-Port Gigabit PoE Extender

Industrial 5-Port Gigabit PoE Extender with 1-Port 802.3bt PoE to 4-port 802.3af/at Operating temp.: -40°C to +75°C

- 5-Port 10/100/1000BASE-T Gigabit RJ45 Interface
- Thunder, Lightning resistant
- Built-in hardened PoE and PD controller
- Can be cascaded up to 4 units or 500meters
- Works in extreme environment -40°C to +75°C
- Data Processing: Store and Forward
- Flow Control: IEEE 802.3x Flow Control and Back Pressure
- Jumbo Frame: 9KB

This PoE extender is equipped with 1 PD input to power up 4 Giga PSE output. It can be used as a standalone PD/PSE PoE injector or to extend PoE distance. It can be cascaded up to 4 units or 500 meters to deliver high power for your end device.

ON ORDER

SKU: DN-651143

Manufacturer: Digitus Digitus

RRP Price €169.43

Specifications

Performance

Type
Network transmitter & receiver
Maximum transfer distance
100 m
Data transfer rate
10000 Mbit/s
Cable types supported
Cat5e
Ethernet LAN data rates
10,100,1000 Mbit/s
Overload protection
Yes
Jumbo frames support
Yes
Duplex system
Full, Half
MAC address table
2000 entries
Flow control support
Yes
International Protection (IP) code
IP30

Network

Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x

Ports & interfaces

Host interface
RJ-45
Ethernet LAN (RJ-45) ports
5

Design

Product colour
Grey
Housing material
Metal
Mounting type
Wall
LED indicators
Yes
Quantity per pack
1 pc(s)
Country of origin
Taiwan

Management features

MDI / DMI-X automatic switchover
Yes

Power

Power consumption (max)
90 W
Power over Ethernet (PoE)
No
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
5 - 95 °C
Operating temperature (transmitter)
-40 - 85 °C

Weight & dimensions

Width
32 mm
Depth
103.5 mm
Height
81.5 mm

Packaging content

Manual
Yes
Wall mounting kit
Yes

Packaging data

Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package volume
2187.65 cm³
Package weight
54.375 g

Logistics data

UK Trade Tariff code
85176200
