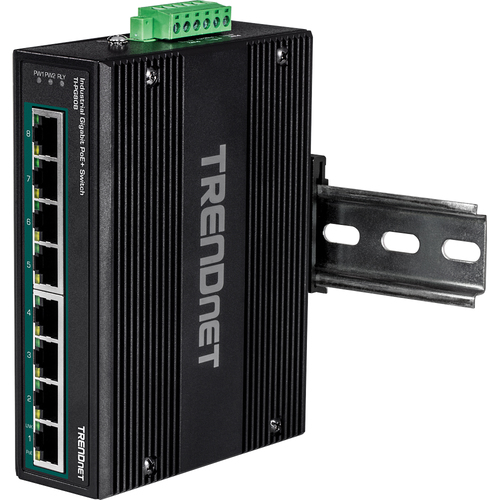

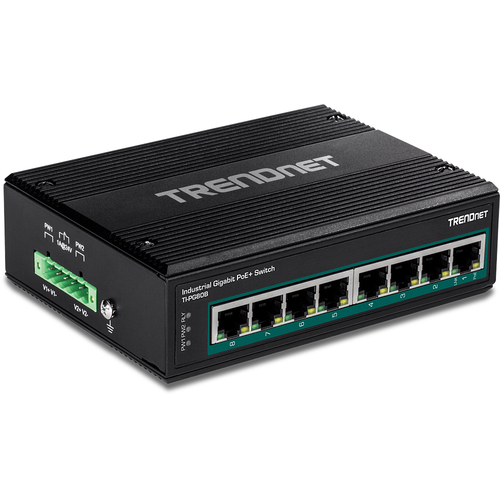

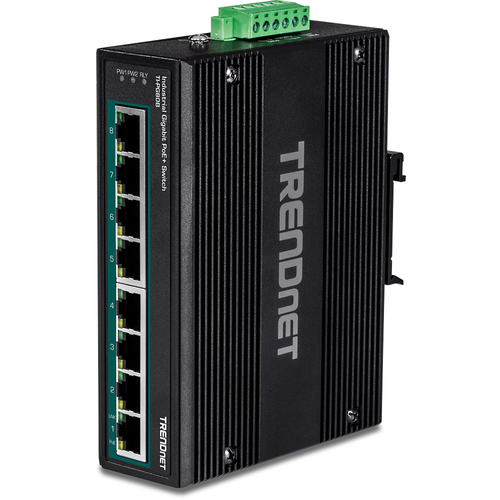

Trendnet TI-PG80B network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 24 – 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.

PoE Power
The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.

Fault Tolerance
The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.

Industrial Design
Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power Budget
Supplies up to 30W of PoE power per port on the industrial variable voltage switch with a 200W PoE power budget

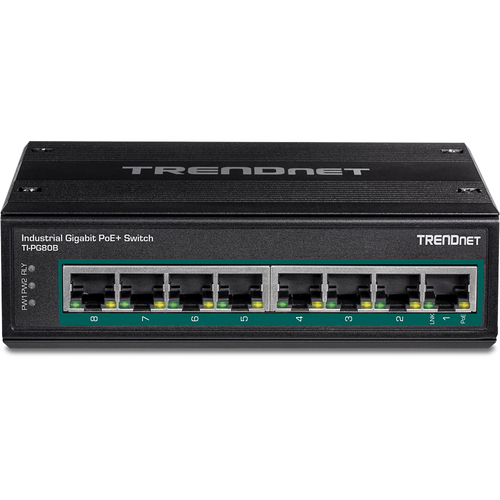

Network Ports
8 x Gigabit PoE+ ports

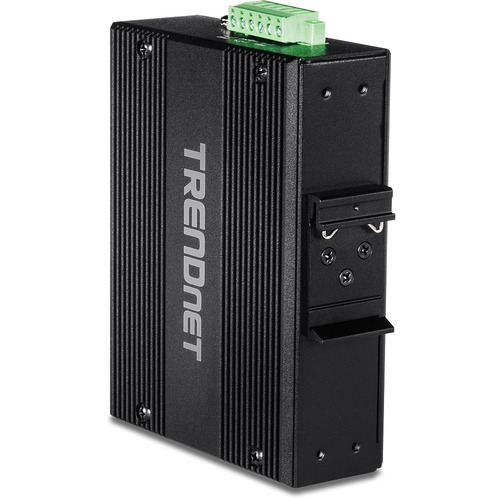

DIN-Rail/Wall Mounts

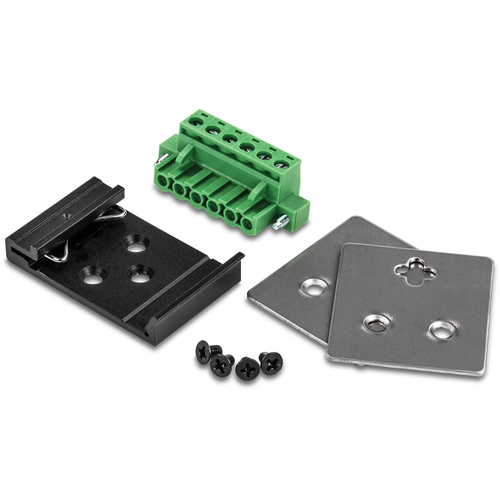

IP30 rated metal enclosure with DIN-Rail and wall mount hardware included

Switching Capacity
16Gbps switching capacity

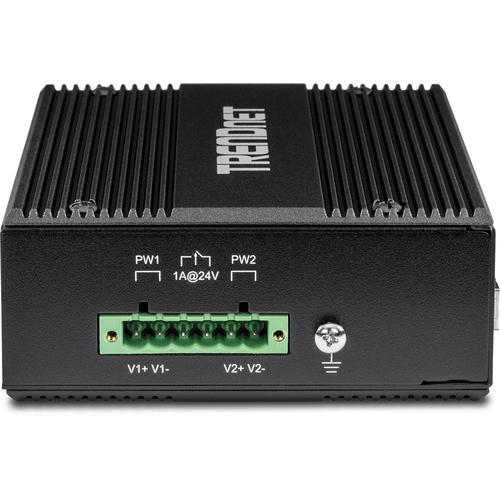

Redundant Power
Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S24048, TI-S12024)

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch

Wide Operating Temperature
Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point on the industrial variable voltage switch protects equipment from external electrical surges

ON ORDER

SKU: TI-PG80B

Manufacturer: Trendnet Trendnet

RRP Price €257.73

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes

Data transmission

Switching capacity
16 Gbit/s
Forwarding rate
11.9 Mpps
MAC address table
4000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
1 MB

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
529765 h

Power

DC input voltage
24 - 56 V
Power consumption (max)
5.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
200 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
142 mm
Depth
105 mm
Height
36 mm
Weight
622 g

Packaging content

Quick start guide
Yes

Certificates

Certification
CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5

Logistics data

Harmonized System (HS) code
85176990
