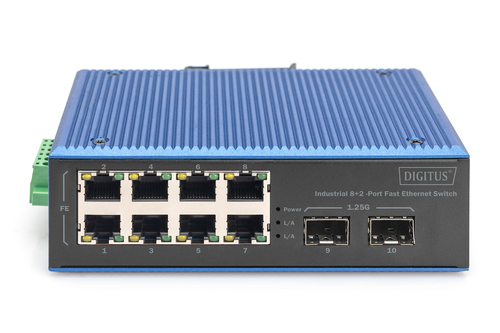

Digitus Industrial 8+2 port Fast Ethernet switch

8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

- Number of network connections: 8 port FE, 2 SFP GE ports
- Transmission speed of the RJ45 network ports: 8 x 10/100 Mbit (RJ45)
- Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)
- Redundant power supply 12-48 V (DC)
- Metal housing to IP40 standard

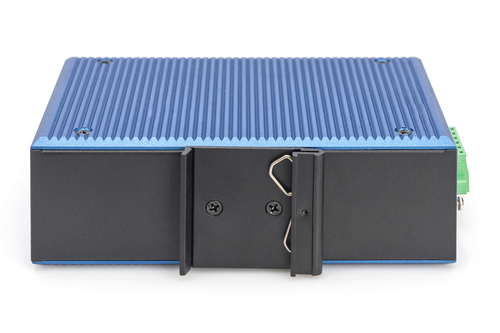

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

The DN-651146 is a robust 8+2 port Industrial Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

ON ORDER

SKU: DN-651146

Manufacturer: Digitus Digitus

RRP Price €120.83

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2
Fiber optic connector
SFP

Network

Networking standards
IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
VLAN support
No

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
4.2 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
1.2 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Metal
International Protection (IP) code
IP40
DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Plug and Play
Yes
Mean time between failures (MTBF)
300000 h

Power

Power source
DC
Power supply included
Yes
Redundant power supply (RPS) support
Yes
Input voltage
12 - 48 V
Power consumption (typical)
8 W
Surge protection
Yes
Surge protection voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Bandwidth
5.6 Gbit/s
Ethernet interface type
Fast Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
143.7 mm
Depth
104 mm
Height
47.7 mm
Weight
600 g

Packaging content

Quick start guide
Yes
Manual
Yes

Packaging data

Package width
158 mm
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
700 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China

Accessories
