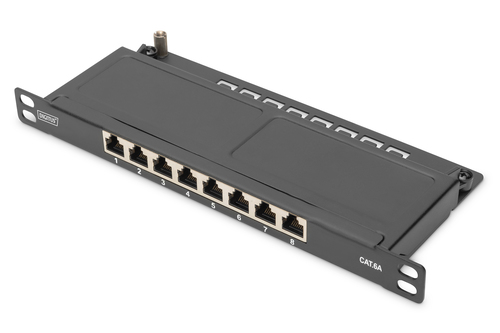

Digitus CAT 6A Slim Patch Panel, shielded, 8-port, 0.5 U, 10", black

Very space-saving (only 0.5U) - future-oriented standards and high-end quality for your network

- Slim installation height of only 0.5 U
- Complete shielding of housing and shield contacting
- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+
- 360° shield contacting
- Quick-release fastener to secure the housing cover
- Wall mounting possible

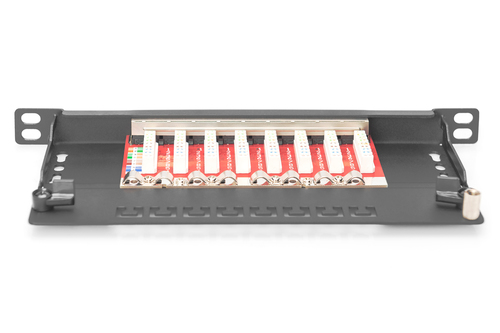

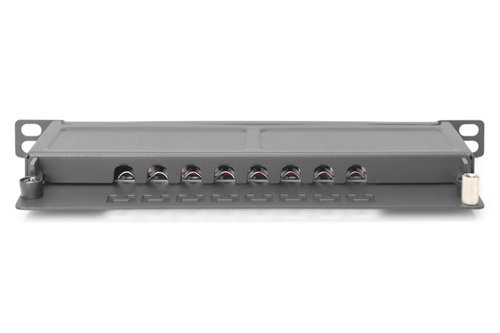

The DIGITUS® 8-Port Patch Panel offers a very high packing density with only 0.5 U. This means that up to 16 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded. The 360° shield contact of the cables ensures the best performance characteristics. The installation cables can be securely fixed with the integrated cable clamps. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals. It complies with the 802.3at PoE+ and the 802.3af PoE standard.

ON ORDER

SKU: DN-91608S-SL-EA

Manufacturer: Digitus Digitus

RRP Price €27.24

Specifications

Network

Cabling technology
10GBase-T
Ethernet interface type
10 Gigabit Ethernet
Maximum data transfer rate
10000 Mbit/s
Ports quantity
8
Connector(s)
RJ-45
Cable types supported
Cat6a
AWG wire size
22/26

Design

Product colour
Black
Mounting
Rack mounting
Rack capacity
1U

Certificates

Certification
UL

Operational conditions

Operating temperature (T-T)
-20 - 70 °C

Packaging data

Package width
60 mm
Package depth
260 mm
Package height
120 mm
Package weight
890 g
Package volume
1872 cm³
Package type
Box

Logistics data

UK Trade Tariff code
85369010
Country of origin
China
Harmonized System (HS) code
85371098
