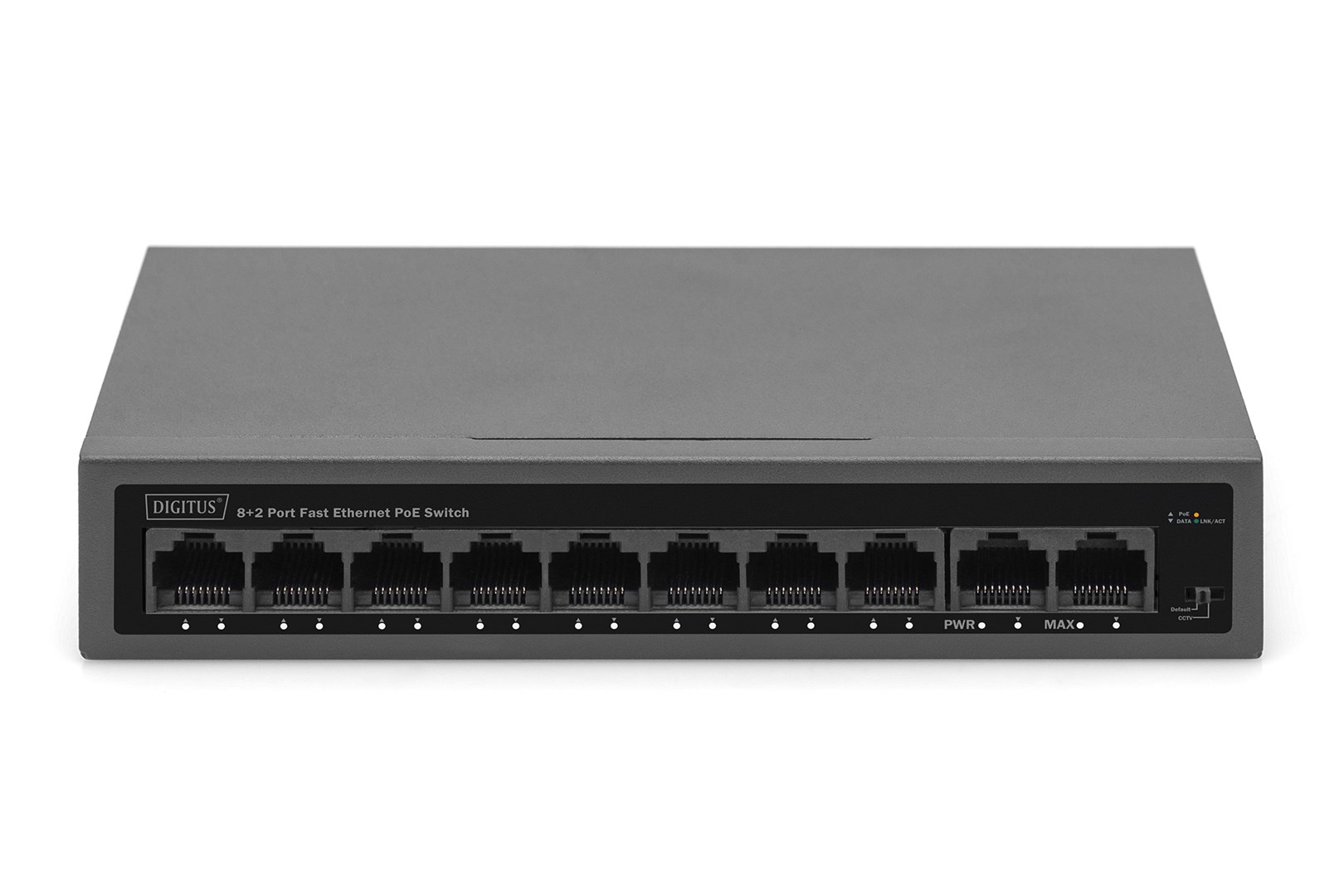

Digitus 8- Port Fast Ethernet PoE Networkswitch, Desktop, unmanaged, 60 W, af/at

The electrical power and data transmission on the same cable can expand your network easy to the places where no power line available.

- Supports IEEE802.3 as standard, compatible with IEEE802.3 af of electrical devices (PD)
- Stand-up output power up to 30 W
- Supports IEEE802.3 x full duplex flow control and backpressure half duplex flow control
- Indicator lights for monitoring the operating status and supporting fault analysis
- Perfect safety mechanism
- Intelligent identification of forwarding at line speed
- Supports CCTV function
- Support for the PD-ALIVE function

DN-95354 has a CCTV function which can improve the network environment and reduce network mainananance costs.Its easy to manage and meet the networking and access requirements of Business bulidings, communuty, hotel and office.

ON ORDER

SKU: DN-95354

Manufacturer: Digitus Digitus

RRP Price €57.34

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
10
Power connector
AC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100 Mbit/s

Data transmission

Forwarding rate
14.88 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
2 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black
LED indicators
Activity, Link, PoE, Power

Performance

Mean time between failures (MTBF)
50000 h

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
65 W
Surge protection
Yes
Surge protection voltage
2 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
60 W

Other features

Bandwidth
20 Gbit/s

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
168 mm
Depth
93 mm
Height
32 mm

Packaging content

Cables included
AC
Quick start guide
Yes

Packaging data

Package width
167 mm
Package depth
195 mm
Package height
63 mm
Package volume
2051.59 cm³
Package weight
881.176 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
