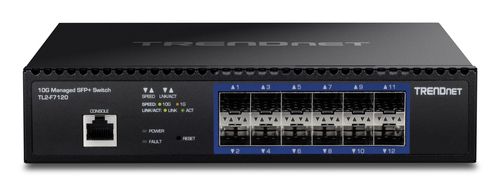

Trendnet TL2-F7120 network switch Managed 1U Black

TRENDnet’s 12-Port 10G Layer 2 Managed SFP+ Switch, model TL2-F7120, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches TL2-F7120 by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and
prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

ON ORDER

SKU: TL2-F7120

Manufacturer: Trendnet Trendnet

RRP Price €317.65

Specifications

Management features

Switch type
Managed
Configuring Location Settings (CLI)
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type
No
SFP+ module slots quantity
12
Console port
RJ-45

Network

Networking standards
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3au, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
240 Gbit/s
Forwarding rate
178.6 Mpps
MAC address table
32000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
2 MB

Security

DHCP features
DHCP snooping
IGMP snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
Number of fans
1 fan(s)

Performance

Noise level
38.6 dB

Power

Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
1.5 A
Power consumption (max)
20 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 50 °C

Weight & dimensions

Width
210 mm
Depth
230 mm
Height
44 mm
Weight
1.6 kg

Certificates

Certification
CE FCC UL

Accessories

License
