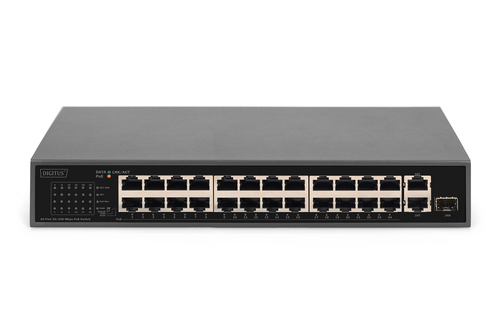

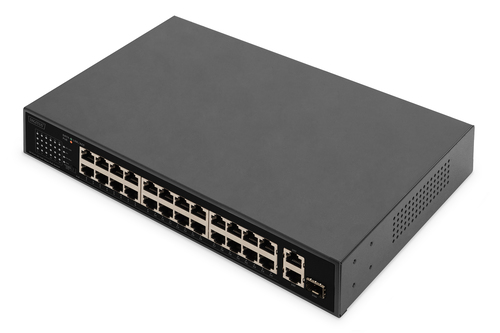

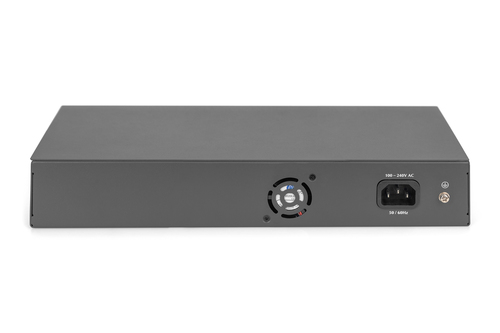

Digitus 24 Port Fast Ethernet PoE Switch , 2 Gigabit Uplinks (RJ45 / SFP)

Key function: VLAN & CCTV & PD-Alive

- 24*10/100Mbps PoE RJ45 connections
- 1*10/100/1000Mbps Kombi-Anschlüsse
- 1*10/100/1000Mbps RJ45-Anschlüsse
- Complies with IEEE802.3af/at Power over Ethernet
- Supports PoE power up to 32W for each PoE port
- Automatic detection of the power supply unit
- Remote supply of power and data up to 100m
- Flow control for full-duplex operation and back pressure for half-duplex operation
- Supports VLAN and CCTV function

The DN-95356 PoE switch is a 24-port 10/100Mbps PoE + 1G Combo +1GE PoE switch.
The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD).
Power and data transmission over the same cable can extend your network to places where there are no power lines or power outlets,
where you can install devices such as APs, IP cameras or IP telephones etc.
The PoE switch offers simple, cost-effective and non-blocking wire-speed performance with 11-inch metal form factor for rack deployment in office or departmental networks.

ON ORDER

SKU: DN-95356

Manufacturer: Digitus Digitus

RRP Price €172.88

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity
24
Gigabit Ethernet (copper) ports quantity
1
Combo SFP ports quantity
1
Power connector
AC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Cable types supported
Cat6, Cat5, Cat5e
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,1000,100 Mbit/s
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
VLAN support
Yes

Data transmission

Switching capacity
8.8 Gbit/s
Forwarding rate
6.5 Mpps
MAC address table
16000 entries
Packet buffer memory
4 MB

Design

Rack mounting
Yes
Stackable
No
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes
Number of fans
1 fan(s)

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
32 W

Weight & dimensions

Width
180 mm
Depth
280 mm
Height
44 mm
Weight
1.85 kg

Packaging content

Cables included
AC
Quick start guide
Yes

Packaging data

Package width
230 mm
Package depth
80 mm
Package height
370 mm
Package volume
6808 cm³
Package weight
2.48 kg

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
