Digitus 17" HD LCD KVM Console, 8-Port VGA, german Keyboard

Maximum flexibility in the administration of the server farm

- TFT monitor 43.2 cm (17"), with anti-reflective, shatter-proof protective glass pane

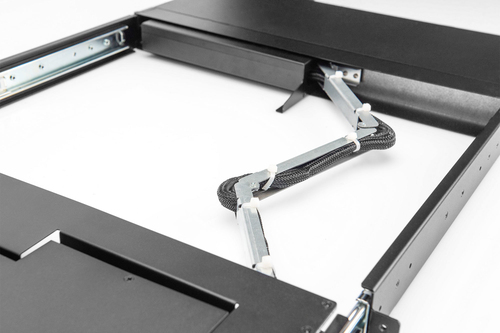

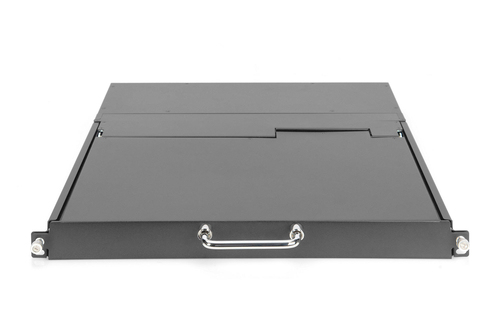

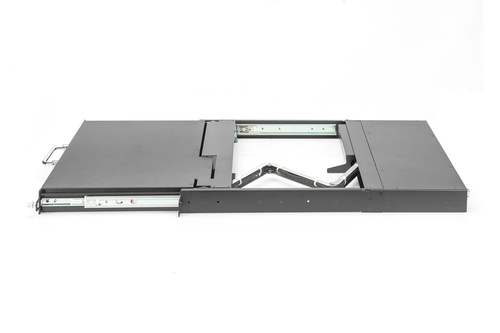

- The console can be completely pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees
- Supports various cabinets from 800mm to 1200mm depth
- All KVM cables are included in the scope of delivery
- Full HD 1080P resolution
- 1x USB peripheral port in the console area
- LED display for the connection status
- TFT monitor 43.2 cm (17"), with anti-reflective, shatter-proof protective glass pane

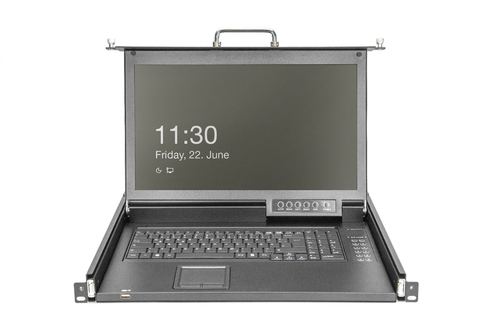

The Digitus HD LCD KVM console - with a 17" TFT monitor with anti-reflective and shatter-proof protective glass. The console can be completely pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees. This console supports various cabinets from 800mm to 1200mm depth and comes complete with all KVM cables. With full HD resolution of 1080P and LED indicator for connection status, this console also features a USB peripheral port in the console area. Enjoy up to 85% more space and a contrast ratio of 1000:1 and support for 16.7 million colors with this console. The package includes an 8-port VGA adapter, a keyboard and a touch-board mouse with two function keys. With a modular and expandable design, this console can also be cascaded.

ON ORDER

SKU: DS-72220-2GE

Manufacturer: Digitus Digitus

RRP Price €1,401.43

Specifications

Display

Display diagonal
43.2 cm (17")
Display resolution
1920 x 1080 pixels
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
120°
Viewing angle, vertical
120°
Aspect ratio
16:9
Display type
TFT
Display number of colours
16.78 million colours

Technical details

Product colour
Black
Built-in KVM switch
Yes
KVM switch ports quantity
8
LED indicators
Yes
Rack capacity
1U

Ports & interfaces

VGA (D-Sub) ports quantity
8
Keyboard port type
USB
Mouse port type
USB

Keyboard

Keyboard language
German
Keyboard layout
QWERTY

Weight & dimensions

Width
509 mm
Height
45 mm
Depth
445 mm
Weight
13.9 kg

Packaging data

Package weight
19.1 kg

Packaging content

Quick installation guide
Yes
AC adapter included
Yes
Rack mount kit
Yes

Accessories

License
