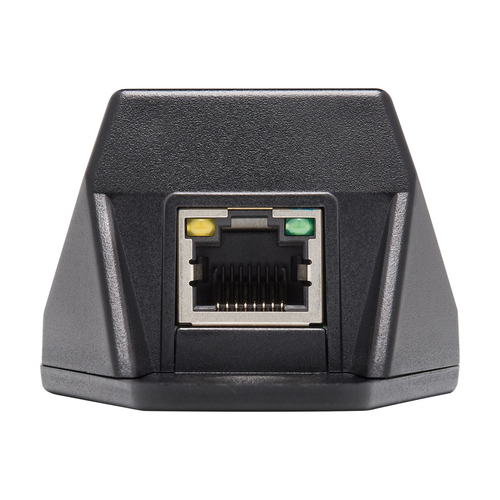

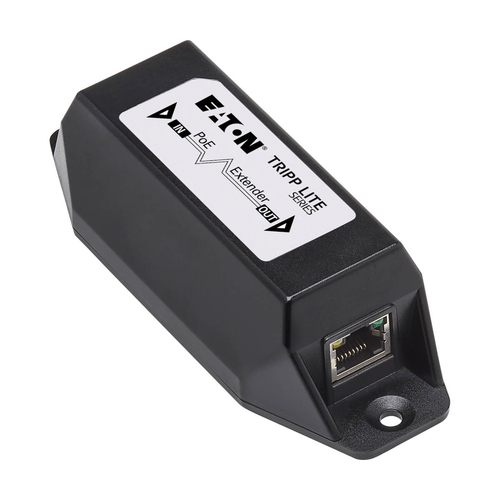

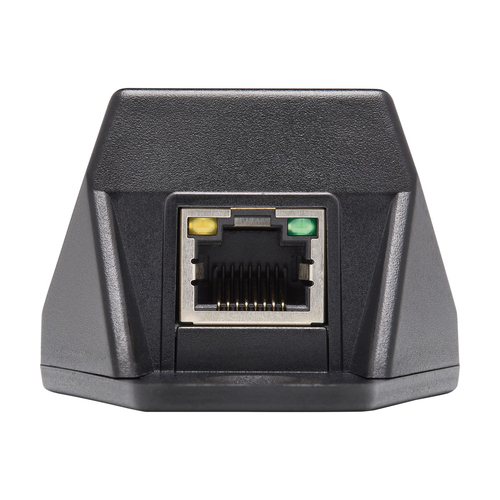

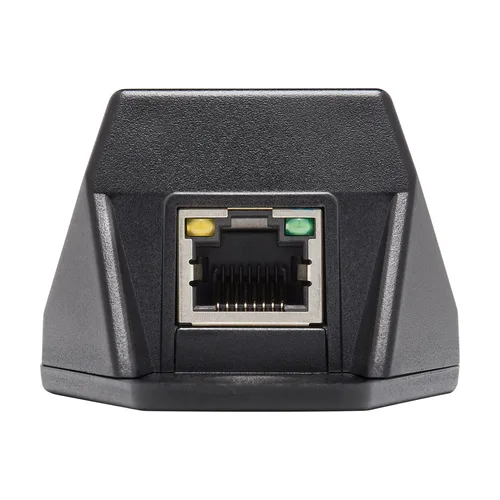

Tripp Lite NPOE-EXT-1G30 1-Port Gigabit Ethernet PoE+ Extender/Repeater - Cat5e/6/6a, 30W, 328 ft. (100 m)

Gigabit Extender Lets You Cascade Your Existing PoE/PoE+ Connection up to 500 Meters
This single-port connector allows you to extend the connection between your powered source device, such as a PoE (Power over Ethernet) switch, and a remote PoE device an extra 328 feet (100 meters). In addition, by cascading as many as four NPOE-EXT-1G30 extenders, you can extend that connection as far as 1,640 feet (500 meters) total. Just connect the extender between two sections of Cat5e/6/6a cable up to 328 feet each.

Saves You Time and Money on Unnecessary Equipment Updates
The compact PoE/PoE+ extender delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables, eliminating the need to install new AC power lines and electrical outlets. This cost-effective extender sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor. It also automatically detects PoE/PoE+ equipment and protects it from being damaged by incorrect installation.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this extender supports PoE, it can supply the power to operate compatible IEEE 802.3at/af PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. It supports half/full-duplex 1 Gbps communication for sending and receiving data simultaneously, and protects your PoE device against short circuits and overloads.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes
No configuration or software is required to add the NPOE-EXT-1G30 to your LAN. Just connect your switch or network jack and your PoE/PoE+ device to the shielded RJ45 Power + Data ports using existing Cat5e/6/6a cable. LEDs indicate the unit is receiving power and is ready to transmit data.

Designed for Installation Almost Anywhere
Mounting holes are featured for installing the extender on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation.

ON ORDER

SKU: NPOE-EXT-1G30

Manufacturer: Eaton Eaton

RRP Price €105.59

Specifications

Network

Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Cable types supported
Cat5e, Cat6, Cat6a

Features

Product colour
Black
Wall mountable
Yes
Maximum operating distance
500 m

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Power

Power over Ethernet (PoE) power per port
30 W

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, REACH

Operational conditions

Operating temperature (T-T)
-10 - 45 °C
Operating temperature (T-T)
10 - 113 °F
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%

Packaging content

Manual
Yes

Packaging data

Package width
134.9 mm
Package depth
55.1 mm
Package height
45 mm
Package weight
90 g

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332236149
Harmonized System (HS) code
85044095
Master (outer) case width
255 mm
Master (outer) case length
154.9 mm
Master (outer) case height
134.9 mm
Master (outer) case gross weight
920 g
Products per master (outer) case
10 pc(s)
Country of origin
China
