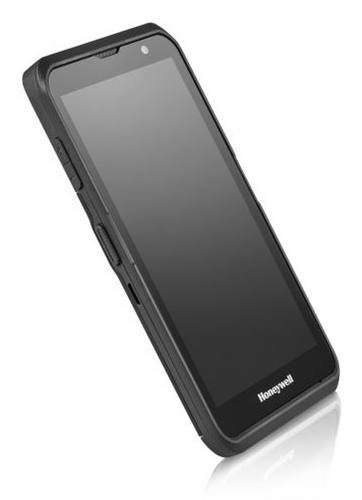

Honeywell ScanPal EDA5S + kit (USB) handheld mobile computer 14 cm (5.5") 1440 x 720 pixels Touchscreen 218 g Black

The Honeywell ScanPalâ„¢ EDA5S is an enterprise-class mobile computer that provides secure connectivity between frontline workers and backend business systems. It is designed for rugged use in transportation & logistics and healthcare applications.

The ScanPal EDA5S is Honeywell’s new ScanPal series mobile computer equipped with Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication.

A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.

The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.

The EDA5S incorporates the all-new and powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes.

Outfitted with a rugged housing and IP67 rated sealing, the EDA5S can operate under rough usage and demanding environmental conditions. A 3060mAh battery provides 8 hours of power without interruption. The battery is also easily removable and supports quick charge 3.0.

The EDA5S (WWAN version) supports one nano SIM and one eSIM simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.

The EDA5S is built on Android 11 and upgradable to Android 13, reducing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.

ON ORDER

SKU: EDA5S-00AE81N21RK

Manufacturer: Honeywell Honeywell

RRP Price €1,105.08

Specifications

Display

Display
LED
Display diagonal
14 cm (5.5")
Display resolution
1440 x 720 pixels
Touchscreen
Yes
Touch technology
Multi-touch
Touchscreen type
Capacitive
Display glass type
Gorilla Glass
Gorilla Glass version
Gorilla Glass 5

Memory

Internal memory
6 GB
Flash memory
128 GB
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
128 GB

Processor

Processor model
662
Processor manufacturer
Qualcomm
Processor frequency
2 GHz
Processor family
Snapdragon
Number of cores
8
Performance cores
4
Efficient cores
4

Network

Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth
Yes
Bluetooth version
5.1
Data network
Edge, HSPA+, LTE, UMTS
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
Security algorithms
EAP, LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2, WPA3, WPA3-SAE
Near Field Communication (NFC)
Yes

GPS Performance

GPS (satellite)
Yes
GLONASS
Yes
BeiDou
Yes

Camera

Built-in camera
Yes
Rear camera resolution (numeric)
13 MP
Front camera
Yes
Front camera resolution (numeric)
5 MP

Ports & interfaces

Interface
USB 2.0 type-C

Performance

Product colour
Black
Barcode reader
Yes
Scanner type
1D/2D
LED indicators
Yes
International Protection (IP) code
IP67
Drop proof
Yes
Drop proof
1200 cm
Warranty period
1 year(s)

Software

Operating system installed
Android 11

Power

Battery capacity
3060 mAh
Battery type
EDA5S
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
3.8 V
Battery recharge time (on)
3.5 h

Weight & dimensions

Weight
218 g
Width
75 mm
Depth
11.2 mm
Height
159 mm

Operational conditions

Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-10 - 50 °C
Storage temperature (T-T)
-20 - 70 °C

Packaging content

Docking station included
Yes

Accessories

License
