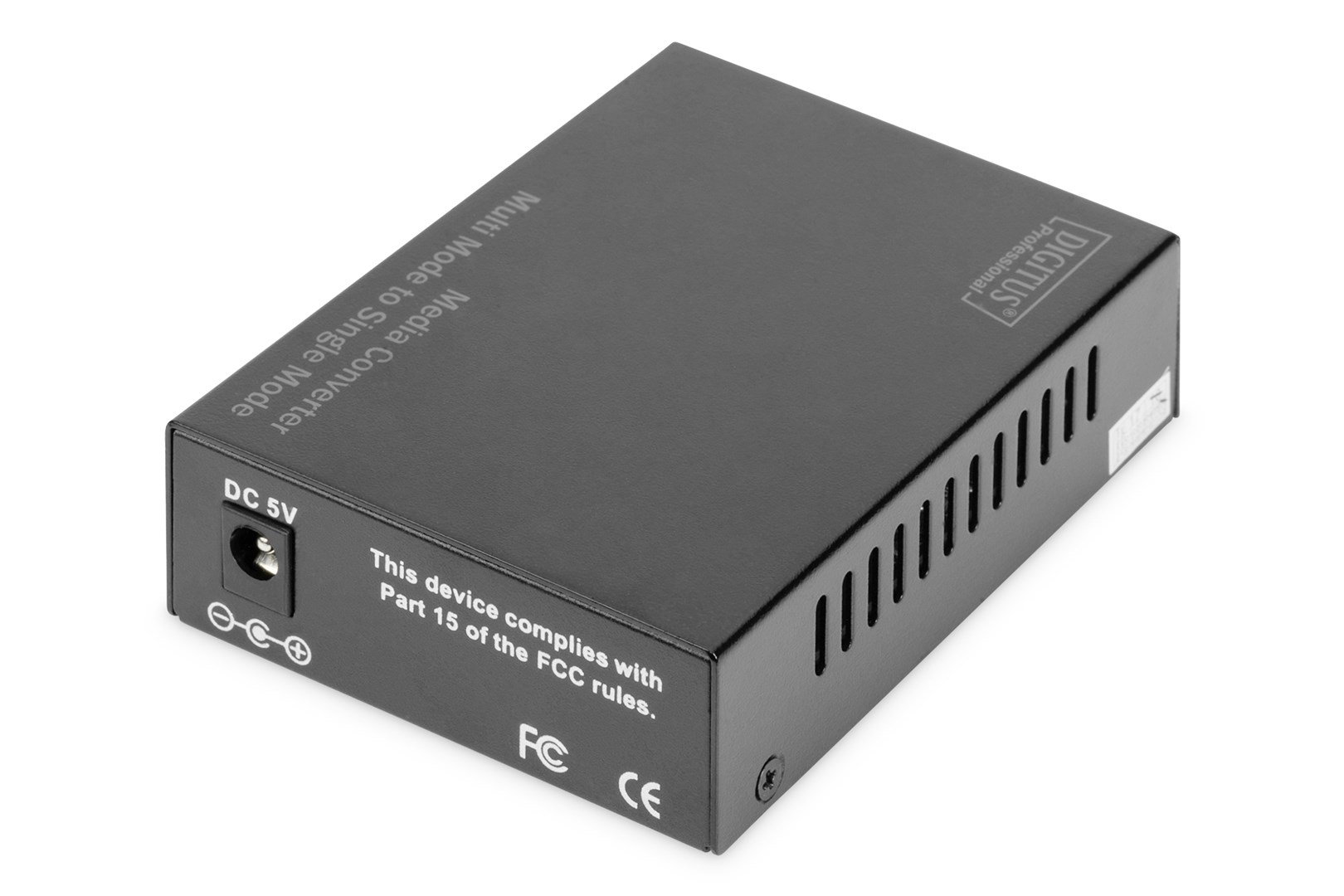

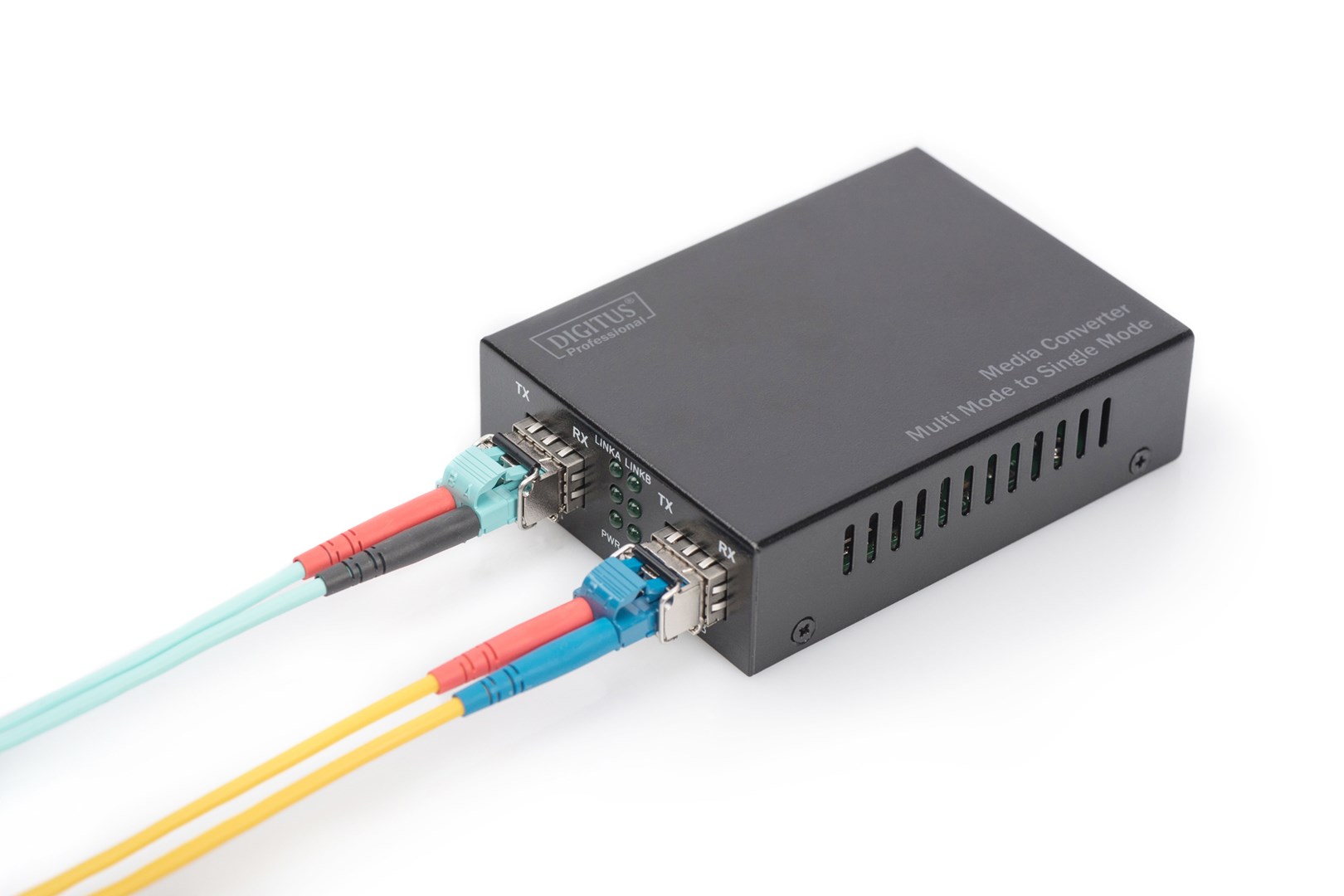

Digitus Gigabit Multimode/Singlemode Media Converter SFP

The perfect converter solution for optical data transmission

- Easy conversion between multimode and singlemode fiber optic
- Fast migration for long distances

The media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

26 IN STOCK

SKU: DN-82133

Manufacturer: Digitus Digitus

RRP Price €73.17

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-X
Converter output interface
100Base-X, 1000Base-X
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
100,1000 Mbit/s
Fiber ethernet cabling technology
100BASE-X, 1000BASE-X
Data transfer rate
1250 Mbit/s

Performance

Wavelength
1550 nm
Fiber mode structure
Multi-mode, Single-mode
Fiber cable diameters supported (core/cladding)
8.3/125,8.7/125,9/125,10/125,50/125,62.5/125,100/140 µm

Features

Internal
No

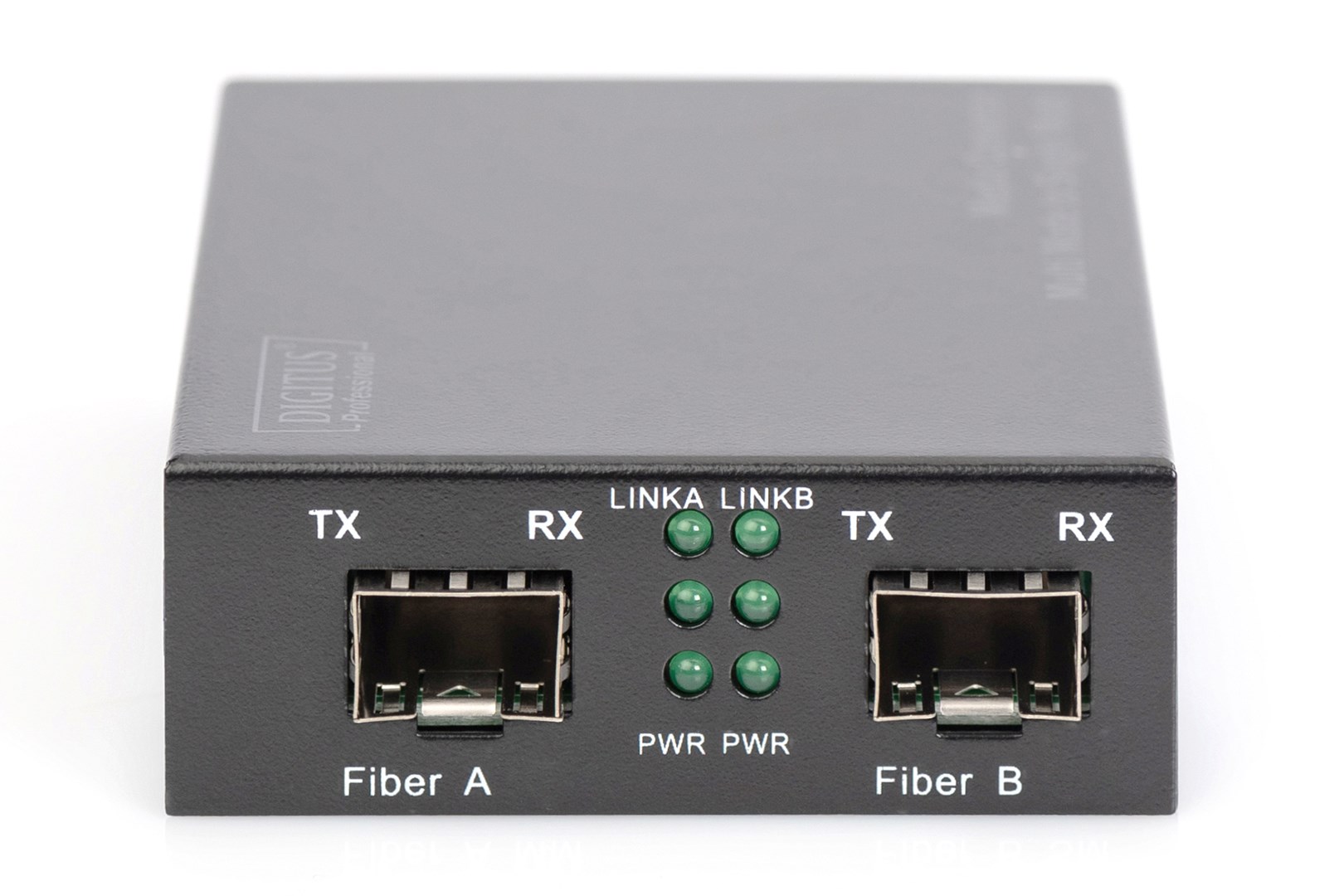

LED indicators
Activity, Link, Power, Status
Product colour
Black

Ports & interfaces

Connectivity technology
Wired
Fiber ports quantity
2
Fiber optic connector
SFP

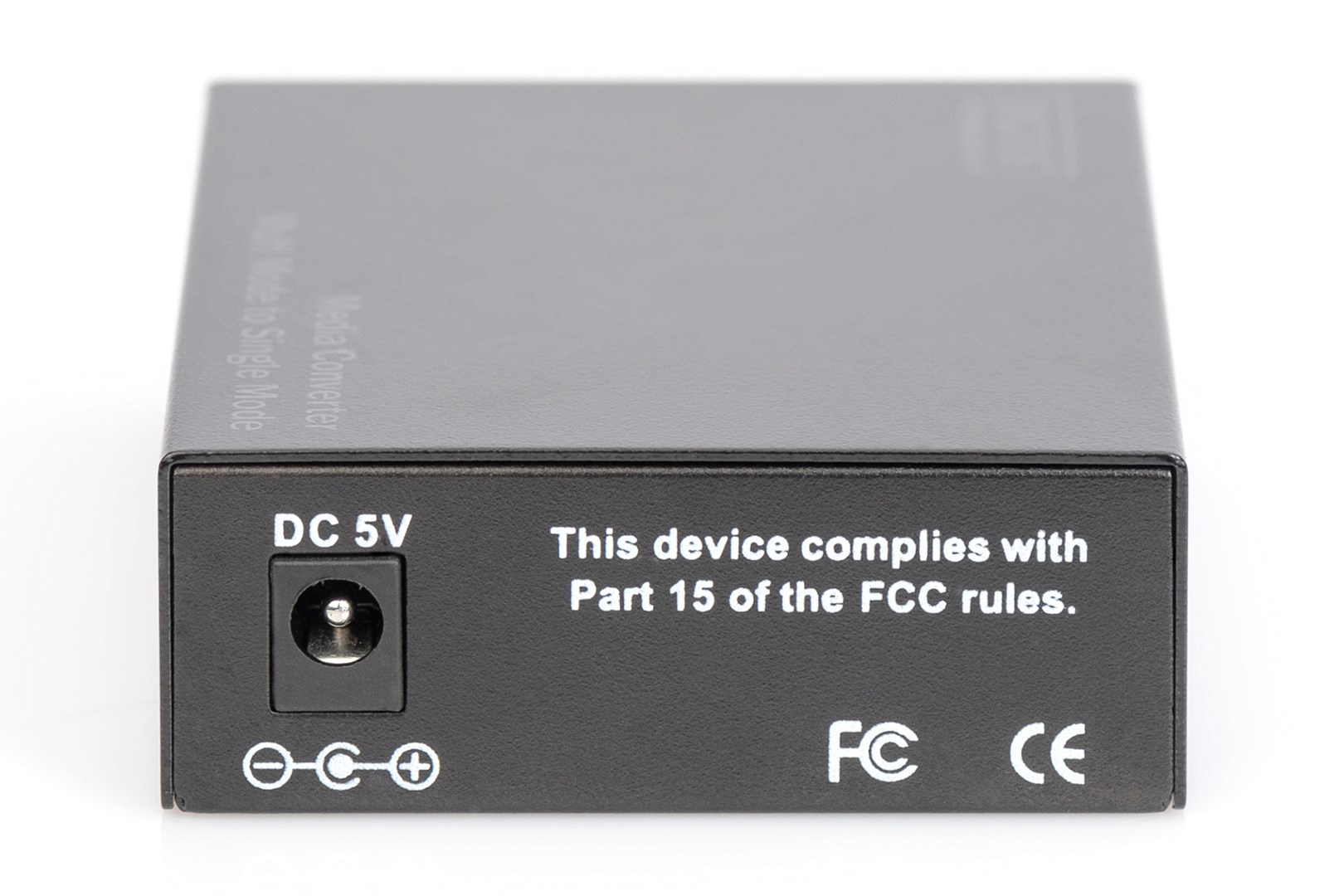

DC-in jack
Yes

Power

Input voltage
5 V
Input current
1 A
Power consumption (typical)
3.5 W
Power over Ethernet (PoE)
No
External power adapter
Yes

Weight & dimensions

Width
95 mm
Depth
70 mm
Height
26 mm
Weight
300 g

Operational conditions

Operating temperature (T-T)
-10 - 55 °C

Packaging content

AC adapter included
Yes
Quick installation guide
Yes

Packaging data

Package width
130 mm
Package depth
250 mm
Package height
55 mm
Package volume
1787.5 cm³
Package weight
350 g

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
Harmonized System (HS) code
85176990
Master (outer) case width
394 mm
Master (outer) case length
550 mm
Master (outer) case height
254 mm
Master (outer) case gross weight
7 kg
Master (outer) case volume
55041.8 cm³
Products per master (outer) case
20 pc(s)
